Gator GT700SD 7" Dash Display Reverse Camera Kit

Delivery and In-Store Pickup: As this product is located at an external warehouse delivery times may be delayed by up to 48 hours. In-store pickup is not available on this item.

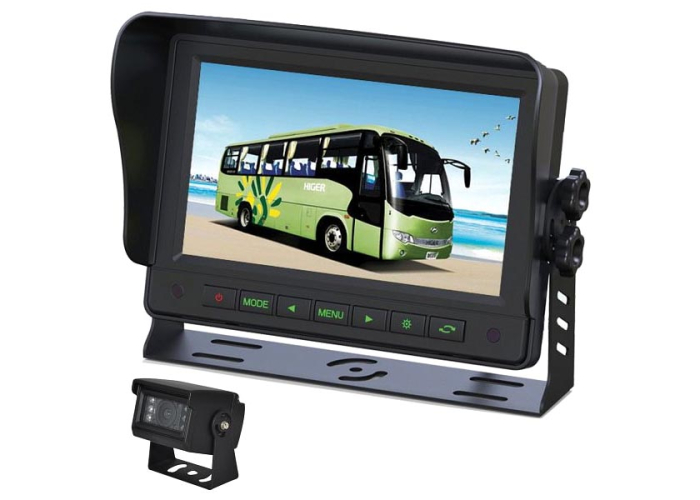

Gator GT700SD 7" Dash Mount Display Reverse Camera Kit
(Gator GT700SD)

We Think You Should Know

• Australian Gator Warranty
• Purchase Guarantee (see T&C's)
• Provides unobstructed rear view of the vehicle
• 7" commercial-grade display
• Small footprint commercial grade reverse camera
• 10 IR LEDs for night vision
• Triple camera input-enabled
• Rated IP68 weatherproof camera
• High/low voltage cut-off and built-in circuit protection

SAFETY WARNING:

• This product contains Button / Coin Cell Batteries. Keep batteries out of reach of children. If you suspect a battery has been swallowed or placed inside any part of the body seek medical attention immediately as batteries can cause severe or fatal injuries in 2 hours or less.

Overview

Operating heavy-duty trucks, mining loaders and industrial or construction vehicles can be very challenging, especially when overall safety is on the line. GT700SD, coming from Gator's long line of enhanced vision systems for superior and all-around vehicle awareness, can certainly make the operation of these colossal equipment a lot safer and easier. This is important not only for the driver but also for the greater safety of other people working around them. With much greater vantage and awareness around the vehicle in tow, drivers can work in a more productive manner with a lessened possibility of dealing potential damage to individuals, other vehicles, objects or infrastructure around their work area. GT700SD comes with a 7" heavy-duty display monitor with adjustable metal mounting bracket, battery-operated IR remote control, small footprint heavy-duty camera, removable sunshade for the display and a 6-metre input harness. The kit features PROLINK II screw connection cables which are weatherproof resulting in an extremely reliable connection to withstand harsh operating environments.

Features

• Provides unobstructed rear view of the vehicle for safer reversing and peace of mind
• 7" commercial grade display with angle adjustable metal mounting bracket
• Small footprint commercial grade reverse camera with 10 IR LEDs for night vision
• Triple video camera input-enabled allowing additional cameras to be added to the system
• Rated IP68 weatherproof camera that withstands harsh environmental conditions
• High/low voltage cut-off and built-in circuit protection
• PROLINK II screw connection cables for reliable weatherproof connections
• 12 & 24V Compatible suitable for commercial vehicles, 4wds and cars
• Optional Windscreen Suction Mount Available (GTSM1)
• Easy wired installation for DIY enthusiasts
• 3-Year Warranty for peace of mind

Gator

Established in 1985, TDJ Australia Pty Ltd is Australia's largest importer and wholesaler of automotive electronics and accessories. They are Australia's leading Innovative Developers of Products and Accessories for the Aftermarket and OEM Automotive Electronics Industry.

MONITOR SPECIFICATIONS

• MONITOR SIZE: 7.0"
• MOUNTING TYPE: ADJUSTABLE METAL BRACKET
• RESOLUTION / BRIGHTNESS: 800(H) x 480(V) / 350 CANDELA
• AHD: NO
• INPUT VOLTAGE: 12V/24V
• VIDEO INPUTS: 3
• DISPLAY CONFIGURATION (SINGLE, DUAL OR QUAD): SINGLE
• IMAGE FLIP: YES (SELECTABLE)
• DISPLAY IMAGE ADJUSTMENT:
  • BRIGHTNESS: YES
  • CONTRAST: YES
  • SATURATION: YES
• REVERSE (MIRROR) IMAGE: YES
• PAL or NTSC: PAL/NTSC
• CONNECTION TYPE: PROLINK II
• DIMENSIONS (Monitor Only): 129mm(H) x 195mm(W) x 30mm(L)
• DIMENSIONS (Monitor & Bracket): 156mm(H) x 215mm(W) x 73mm(L) [with bracket in vertical position & sunshade fitted]
• OTHER FEATURES: N/A

CAMERA SPECIFICATIONS

• MOUNT TYPE: SURFACE MOUNT U-SHAPED BRACKET
• CAMERA TYPE (REVERSE OR REARVIEW): REAR
• AHD / RESOLUTION: NO / N/A
• CAMERA ANGLE: 120 DEGREE
• IMAGE SENSOR (CMOS or CCD): CMOS
• PARKING GRIDLINES: NO
• PAL or NTSC: NTSC
• IP RATING: IP68
• INPUT VOLTAGE: 12V
• MINIMUM ILLUMINATION: 0LUX
• NUMBER OF LEDs: 10
• LED TYPE: INFRARED
• PLUG TYPE CAMERA END: PROLINK II
• PLUG TYPE MONITOR END: PROLINK II
• VIDEO CABLE LENGTH: 400MM
• REVERSE TRIGGER ON VIDEO CABLE: N/A
• DIMENSIONS (Camera Only): 42mm(H) x 52mm(W) x 55mm(L)
• DIMENSIONS (Camera & Bracket): 60mm(H) x 63mm(W) x 55mm(L)

KIT SPECIFICATIONS

• WIRED OR WIRELESS: WIRED
• WARRANTY: 3 YEARS

• Gator GT700SD 7" Dash Mount Display Reverse Camera Kit
