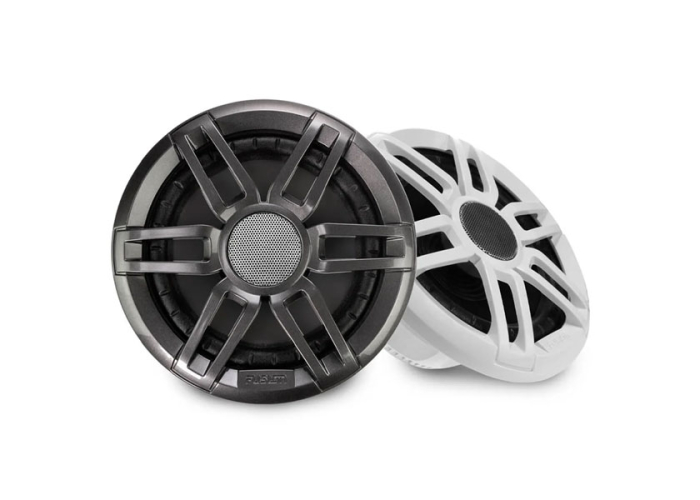

Fusion XS Series 7.7" 240W Sports Marine Speakers

Fusion XS Series 7.7" 240W Sports Marine Speakers
(Fusion 0100219701)

We Think You Should Know

• Australian Fusion Warranty
• Purchase Guarantee (see T&C's)
• 240W peak, 60W RMS power
• 70Hz–18kHz frequency response
• IP65 dust and water rated
• White and grey grilles included
• 3-year marine warranty

Overview

The Fusion XS Series 7.7" 240W Sports Marine Speakers deliver full-range audio with a modern Sports grille that suits contemporary helm designs. An injection-moulded polypropylene cone and aluminium dome tweeter produce a smooth 70Hz–18kHz response, while the overhung voice coil reduces distortion at higher volumes. Fully sealed crossover components resist the marine environment, and the open basket design reduces mounting depth to 77mm for versatile installation. IP65-rated and ISO12216 compliant, the pair ships with both white and grey Sports grilles, and carries a 3-year warranty.

Key Features

• 240W Peak, 60W RMS Power – Handles 240W peak and 60W RMS at 4 ohm, with a recommended amplifier rating of 25–200 W per channel and 92dB sensitivity for strong output from modest amplification.
• Aluminium Dome Tweeter – Delivers a smooth upper-frequency response up to 18kHz with increased efficiency for detailed highs.
• Overhung Voice Coil Design – Reduces distortion and increases power and efficiency for a cleaner sound at higher volumes.
• Fully Sealed Crossover Components – Sealed crossovers protect the internals from the marine environment and support improved frequency response at the crossover point.
• Open Basket Construction – The optimised open-back design allows extended power handling and versatile mounting with a reduced depth of just 77mm.
• IP65 Dust and Water Rated – Rated IP65 for protection against dust and water ingress, and tested against salt fog, temperature, vibration, and UV to Fusion's True-Marine standard.
• ISO12216 Compliant – Tested to international standards for pressure and water ingress, built for quality and robustness in marine environments.
• Interchangeable White and Grey Grilles – Ships with both white and grey Sports grilles, so you can match the speakers to your vessel's trim.
• 3-Year Marine Warranty – Backed by a 3-year warranty for season-after-season reliability.

Ideal For

• Boat owners upgrading factory speakers with a larger 7.7" driver
• Vessels needing IP65-rated speakers for spray and dust exposure
• Helm or cockpit installations where a 77mm mounting depth fits
• Boats with modern dark or light dash designs needing a Sports grille
• Buyers wanting to match grille colour to boat trim with two included sets

• 2 x XS-F77SPGW speakers
• 12 x Phillips stainless steel mounting screws (4.2mm x 25.4mm / 8 gauge x 1")
• 1 x Sports white speaker grille
• 1 x Sports grey speaker grille
• 1 x Documentation
