Fusion Signature 3i 6.5" 230W Marine Speakers - White
Fusion Signature 3i 6.5" 230W Marine Speakers - White
(Fusion 0100277100)
We Think You Should Know
- Australian Fusion Warranty
- Purchase Guarantee (see T&C's)
- 230W peak, 75W RMS power
- CURV cone for greater definition
- Water-resistant marinised connectors
- IP65 dust and water rated
- 3-year marine warranty
Overview

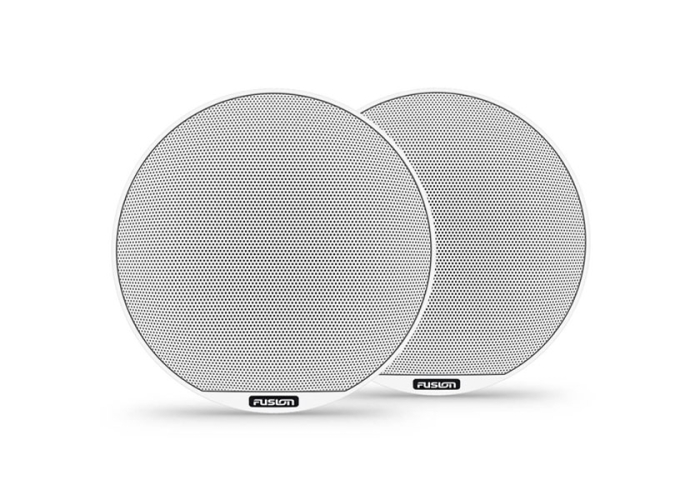

The Fusion Signature Series 3i 6.5" 230W Classic Marine Speakers in white deliver crystal-clear audio with the build quality Signature Series is known for. CURV cone technology uses a lighter, stronger woven fibre composite to produce greater sound definition at higher volumes, while the silk dome tweeter and 1.2" voice coil handle 75W RMS and 230W peak at 4 ohm. Water-resistant marinised connectors simplify installation and protect the wiring from salt and spray, and the rigorously tested design carries an IP65 rating. The classically styled perforated metal grille provides a timeless finish for traditional boat interiors.
Key Features
- 230W Peak, 75W RMS Power – Handles 230W peak and 75W RMS at 4 ohm, with a recommended amplifier rating of 30–90 W per channel.
- CURV Cone Technology – A lighter and stronger woven fibre composite produces greater sound definition at higher volumes, with a rubber surround for durability.
- Marinised Water-Resistant Connectors – New water-resistant connectors come standard, simplifying installation and providing superior protection from the harsh marine environment.
- Silk Dome Tweeter – The silk dome tweeter delivers smooth, detailed high frequencies up to 22 kHz for premium onboard listening.
- IP65 Dust and Water Rated – The rigorously tested marinised design carries an IP65 rating for protection against dust and water ingress from the front of the speaker.
- True-Marine Philosophy – Built to Fusion's True-Marine standard to withstand the harshest marine environments season after season, backed by a 3-year warranty.
- Classic Perforated Metal Grille – The classically styled perforated metal grille in white provides a timeless, elegant finish that suits traditional boat interiors.
- DSP System Integration – Designed to work optimally with Fusion stereo systems and amplifiers (sold separately) using custom DSP profiles, set up via the Fusion-Link smart-device app.
- 3-Year Marine Warranty – Backed by a 3-year warranty for season-after-season reliability.
Ideal For
- Boat owners wanting premium sound from a Signature Series speaker
- Vessels with Fusion stereo systems and amplifiers needing DSP-tuned audio
- Helm or cabin installations where a classic white finish matches the trim
- Installations needing water-resistant connectors for simplified wiring
- Boats requiring IP65-rated marine audio equipment
| Specifications | Details |
|---|---|
| Series | Signature Series 3i |
| Grille Style | Classic, White (perforated metal) |
| Speaker Size | 6.5" |
| Configuration | Coaxial, 2-way |
| Peak Power | 230 W |
| RMS Power | 75 W |
| Recommended Amplifier Power (RMS) | 30–90 W/Ch |
| Sensitivity (1 W/1 m) | 90 dB |
| Frequency Response | 70 Hz–22 kHz |
| Nominal Impedance | 4 ohms |
| Cone Material | CURV woven fibre composite with rubber surround |
| Tweeter Type | Silk dome |
| Voice Coil Diameter | 1.2" |
| Water and Dust Rating | IP65 |
| Connection | Flying lead with water-resistant 2-way connector, 150mm |
| Physical Dimensions (Diameter x Depth) | 200 x 103mm (7.87" x 4.06") |
| Mounting Diameter Clearance | 136mm (5.35") |
| Mounting Depth Clearance | 79mm (3.11") |
| Weight | 1.35 kg (3 lb) per speaker |
| Operating Temperature Range | 0° to 50°C (32° to 122°F) |
| Compass-Safe Distance | 310 cm (122") |
| Warranty | 3 years |
- 2 x Signature Series 3i 6.5" Classic White Speakers
- 2 x White Classic mesh grilles
- 12 x Phillips stainless steel mounting screws (4.2mm x 40mm / 8 gauge x 1.6")
- 2 x Water-resistant cable assemblies with 2-pin connector (150mm)
- 1 x Documentation
