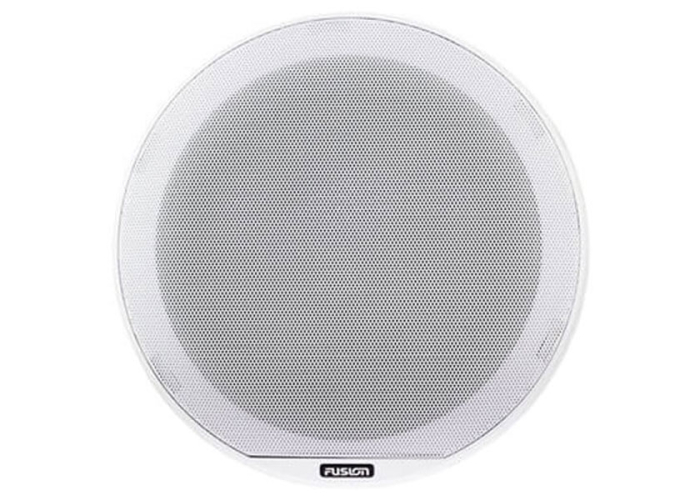

Fusion 10" 600W Classic Marine Subwoofer - White
Fusion Signature Series 3 10" 600W Classic Marine Subwoofer - White
(Fusion 010-02435-00)
We Think You Should Know
- Australian Fusion Warranty
- Purchase Guarantee (see T&C's)
- 10" Subwoofer - White
- 600W Peak / 300W RMS - 4Ω
- True-Marine™ Standards
- High-Grade Basket Construction
- Large Diameter Voice Coil
- ISO 12216 Compliant
Overview
Exceptional mechanical design and brilliant acoustic engineering have created the new revamped Signature Series 3 marine subwoofers, which deliver premium low frequencies for a truly memorable audio entertainment experience.
The new Signature Series 3 subwoofers now pack an enhanced 600 watts of peak power. Enjoy high-resolution bass reproduction from the quality polypropylene cone. With an increase in real power, the voice coil provides a sound exclusive to the Signature Series 3.
The Signature Series 3 Classic subwoofer is available in a 10-inch size and features a timeless, elegantly styled perforated metal grille to blend with the aesthetics of your boat.
Features
DESIGNED AND ENGINEERED TO TRUE-MARINE™ STANDARDS
Built on the True-Marine design philosophy from Fusion®, the Signature Series 3 subwoofers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog, temperature, vibration and UV.
DESIGNED TO COMPLY WITH ISO12216
Tested to international standards for pressure and watertightness, the Signature Series 3 subwoofers are designed and built to the highest industry standards for quality and robustness.
THE FINEST MATERIALS AND ACOUSTIC ENGINEERING
The Signature Series 3 subwoofers incorporate premium materials and marine-specific design elements. This communicates not only their premium aesthetics but also their ability to reproduce high-quality audio while out on the water.
POLYPROPYLENE CONE TECHNOLOGY
Defined, high-resolution low-frequency acoustics are a result of the excellent self-damping and bass reproduction from the quality polypropylene cone.
LARGE-DIAMETER VOICE COIL
Delivering an increase in real power and efficiency, the large-diameter voice coil provides a signature sound with wave-rippling bass exclusive to the Signature Series 3 subwoofers.
HIGH-GRADE BASKET CONSTRUCTION
The basket is constructed using high-grade engineered plastics to deliver unprecedented durability when exposed to the marine environment.
FUSION Entertainment Ltd
Fusion Entertainment was established in New Zealand in 1998 by founders who have a passion for cars, music and street culture. Now, nearly 20 years later, the company's innovation and product design has propelled them to be a global player in car and marine audio. We trust in Fusion to bring a first class audio experience to your boat and car - and so can you!
| PHYSICAL DIMENSIONS (DIAMETER X DEPTH) | 10.83" x 6.38" (275 x 162 mm) |
|---|---|
| WATER AND DUST RATING | IP65 |
| SPEAKER SIZE | 10" |
| PEAK POWER (WATTS) | 600 W |
| RMS POWER (WATTS) | 300 W |
| SENSITIVITY (1 W/1 M) | 86 dB |
| MAGNETIC STRUCTURE | 68 oz |
| FREQUENCY RESPONSE | 30 Hz-2 kHz |
| NOMINAL IMPEDANCE | 4 ohms |
| RECOMMENDED AMPLIFIER POWER (RMS) | 50-600 W |
| OPERATING TEMPERATURE RANGE | 32° to 122° F (0° to 50° C) |
| VOICE COIL DIAMETER | 2" |
| CONE MATERIAL | Polypropylene cone with rubber surround |
| COMPASS-SAFE DISTANCE | 205" (520 cm) |
| MOUNTING DIAMETER CLEARANCE | 8.78" (223 mm) |
| MOUNTING DEPTH CLEARANCE | 5.24" (133 mm) |
| SEALED ENCLOSURE VOLUME (FULLY FILLED WITH ABSORPTION MATERIAL) | 0.6 cubic ft (17.2 L) |
| PORTED (VENTED) ENCLOSURE VOLUME (LINED WITH ABSORPTION MATERIAL) | 1.6 cubic ft (45 L) |
| PORT DIAMETER | 4" (104 mm) |
| PORT LENGTH | 10.43" (265 mm) |
