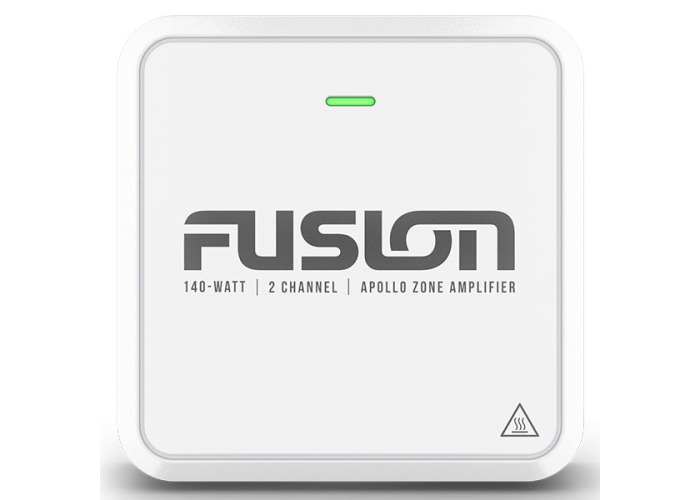

Fusion Apollo 140W Zone Marine Amplifier
Fusion Apollo 140W Zone Marine Amplifier
(Fusion 010-02569-00)
We Think You Should Know
- Australian Fusion Warranty
- Purchase Guarantee (see T&C's)
- Class-D Zone Amplifier
- 140W Peak Power
- 20W RMS x 2 @ 4 ohm
- True-Marine Design
- Conformal Coated PCBs
- IPX7 Rating
- Easy Tune Feature
- LED Indicators
- Ignition Protected
Overview
The Fusion Zone Marine Amplifier is an efficient and easy-to-install amp that works with compatible Fusion stereo systems. The compact zone amplifier provides audio zone expansion for high-quality sound in more areas on your boat. It’s compatible with 12- and 24-volt electrical systems.
Features
POWER AND EFFICIENCY
The Apollo amplifiers are designed to produce impressive power with less drain on your battery.
EASY TUNE FEATURE
These amplifiers use the Easy Tune feature2, which automatically regulates audio settings. So, you can get the best quality sound without making manual adjustments.
LESS DISTORTION
Some amplifiers distort audio when they add power. Ours are specifically designed with minimal distortion and noise, so you can enjoy high-quality audio, even at higher volumes.
LED INDICATORS
Identify electrical issues at a glance. These indicator lights will show you issues with electrical currents and shorts as well as temperature.
MOUNTING BRACKETS
Easily install the amplifiers on board with the included mounting brackets.
IGNITION PROTECTED
The ignition-protected design helps prevent potential damage from overheating.
CONFORMAL-COATED PCBS
The amplifier’s circuit board has been specially coated to provide extra protection from the marine elements.
2 OHM STABLE
You can connect up to two speakers per channel, increasing setup options.
FUSION TRUE-MARINE DESIGN
The amplifiers are designed to last season after season. They have been tested to a high level of protection against salt fog, temperature, vibration and UV.
1Amplifiers are designed exclusively for use with Fusion DSP-enabled stereos (Apollo RA770, Apollo RA670, Apollo WB670 and RA210) and Fusion speakers.
2Requires setup using the Fusion-Link app on a compatible smartphone.
FUSION Entertainment Ltd
Fusion Entertainment was established in New Zealand in 1998 by founders who have a passion for cars, music and street culture. Now, nearly 20 years later, the company's innovation and product design has propelled them to be a global player in car and marine audio. We trust in Fusion to bring a first class audio experience to your boat and car - and so can you!
| Specification | Zone Version |
|---|---|
| Physical dimensions without bracket (LxWxH) | 3.94″ x 3.94″ x 1.57″ (100 x 100 x 40 mm) |
| Physical dimensions with bracket (LxWxH) | 3.94″ x 4.53″ x 1.89″ (100 x 115 x 48 mm) |
| Weight | 1.01 lb (460 g) |
| Water rating | IPX7 |
| Amplifier class | Class-D |
| CEA-2006 power rating | 20 watt RMS x 2 @ 14.4 V input - 4 ohm < 1% THD |
| Total rated power output - 2 Ohm (Watts) | 30 watt RMS x 2 @ 14.4 V input - 2 ohm < 1% THD |
| Peak power (Watts) | 140 watts |
| Input sensitivity | 0.45 V RMS |
| Input impedance | 9k Ohm |
| Operating voltage | 10.8 V - 32 V DC |
| Current draw, in standby/off using AMPLIFIER ON wire | < 1 mA @ 14.4 V input |
| Current draw, on, no audio | < 0.04 A @ 14.4 V input |
| Power-cable fuse or circuit breaker rating (not included) | 40 A |
| Ignition Safety Protected (SAE J1171) | Yes |
| Protection circuits | Reverse voltage, Input under/over voltage, Over temperature, Output short circuit |
| Operating temperature range | 0° to 50° C |
- One Apollo zone amplifier
- One mounting bracket
- Three 6-gauge, self-tapping screws
- Wiring loom
- Installation instructions
- Important safety and product information (ISPI)
