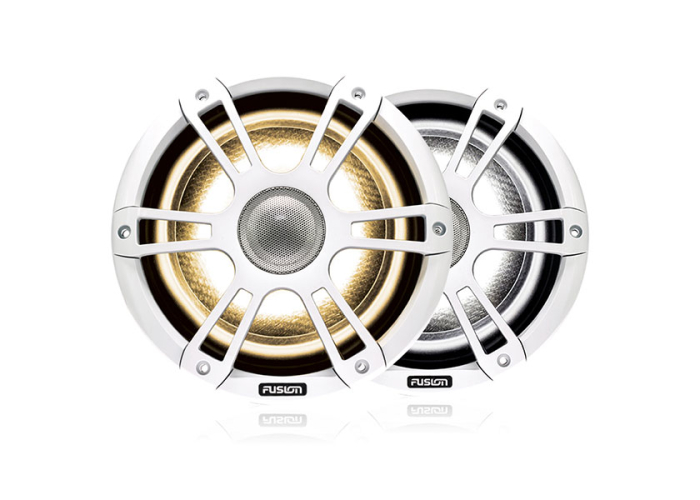

Fusion 7.7" 280W Sports Marine Speakers w CRGBW LED - White
Fusion 7.7" Signature Series 280W Sports Marine Speakers w CRGBW LED Lighting - White
(Fusion 010-02433-10)
We Think You Should Know
- Australian Fusion Warranty
- Purchase Guarantee (see T&C's)
- 7.7" Marine Speakers - White
- 280W Peak / 100W RMS - 4Ω
- True-Marine™ Standards
- CRGBW LED Lighting
- ISO 12216 Compliant
- 86mm Mounting Depth
- 156mm Mounting Diameter
IMPORTANT NOTE:
- Requires Fusion MS-CRGBWRC wireless remote control (sold separately) to control the colours
Overview
Feel the beat and enjoy your favourite songs with Fusion 7.7" Sports speakers. Pushing the boundaries of what is possible on the water, the new revamped Signature Series 3 marine speakers deliver unparalleled performance — even when exposed to harsh marine environments.
Experience industry-first marine speakers with CRGBW LED lighting. Enjoy greater sound definition and higher output with CURV Cone Technology. With an increase in real power, the voice coil provides a sound exclusive to the Signature Series 3 and the silk dome tweeter provides a smooth upper-frequency response and increased efficiency.
Features
DESIGNED AND ENGINEERED TO TRUE-MARINE™ STANDARDS
Built on the True-Marine design philosophy from Fusion®, the Signature Series 3 speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog, temperature, vibration and UV.
DESIGNED TO COMPLY WITH ISO12216
Tested to international standards for pressure and watertightness, the Signature Series 3 speakers are designed and built to the highest industry standards for quality and robustness.
THE FINEST MATERIALS AND ACOUSTIC ENGINEERING
The Signature Series 3 speakers incorporate premium materials and marine-specific design elements. This communicates not only their premium aesthetics but also their ability to reproduce high-quality audio while out on the water.
CURV CONE TECHNOLOGY
CURV is a woven fibre composite that is heat-pressed to form a lighter and stronger cone. This delivers greater sound definition and higher output while providing increased protection from marine conditions.
SILK DOME TWEETER
The silk dome tweeter provides a smooth upper-frequency response and increased efficiency, which delivers crystal-clear music reproduction.
LARGE-DIAMETER VOICE COIL
Delivering an increase in real power and efficiency, the large-diameter voice coil provides a signature sound exclusive to the Signature Series 3 speakers.
FULLY SEALED CROSSOVER COMPONENTS
Fully sealed crossover components provide full protection from the harsh marine environment. This delivers an improved frequency response at the crossover point for a detailed audio spectrum and a new level of acoustic performance.
HIGH-GRADE BASKET CONSTRUCTION
The basket is constructed using high-grade engineered plastics to deliver unprecedented durability when exposed to the marine environment.
PREMIUM CRGBW LED LIGHTING
Industry-first marine speakers with CRGBW (cool white, red, green, blue, warm white) illuminate an unprecedented spectrum of colours — from premium pastels to vibrant hues — to enhance your audio entertainment experience.
CONTROLLING THE CRGBW LIGHTING
Control the colour (static or dynamic), brightness, light mode and speed by using the optional MS-CRGBWRC wireless remote control (sold separately) or from a Garmin multifunction display via OneHelm™ integrated digital switching (lighting partner controller required).
FUSION Entertainment Ltd
Fusion Entertainment was established in New Zealand in 1998 by founders who have a passion for cars, music and street culture. Now, nearly 20 years later, the company's innovation and product design has propelled them to be a global player in car and marine audio. We trust in Fusion to bring a first class audio experience to your boat and car - and so can you!
| Physical Dimensions (Diameter x Depth) | 7.72" x 4.31" (196 x 111 mm) |
| Water and Dust Rating | IP65 |
| Configuration | Coaxial |
| Speaker Size | 7.7" |
| Peak Power (Watts) | 280 W |
| RMS Power (Watts) | 100 W |
| Sensitivity (1 W / 1 m) | 91 dB |
| Frequency Response | 60 Hz - 22 kHz |
| Nominal Impedance | 4 ohms |
| Recommended Amplifier Power (RMS) | 25-120 W/Ch |
| LED Lighting | Yes (CRGBW; sports-style only) |
| LED Supply Voltage | 10.8-16 VDC (sports-style only) |
| LED Load Current @ 14.4 VDC | 300 mA (sports-style only) |
| Operating Temperature Range | 32° to 122° F (0° to 50° C) |
| Voice Coil Diameter | 1.4" |
| Cone Material | CURV cone with rubber surround |
| Tweeter Type | Silk dome |
| Compass-Safe Distance | 141" (358 cm) |
| Mounting Diameter Clearance | 6.14" (156 mm) |
| Mounting Depth Clearance | 3.39" (86 mm) |
| Sealed Enclosure Volume | 0.71 cubic ft (20 L) |
| Ported Enclosure Volume | 1.06 cubic ft (30 L) |
| Port Diameter | 3" (76 mm) |
| Port Length | 6.3" (160 mm) |
