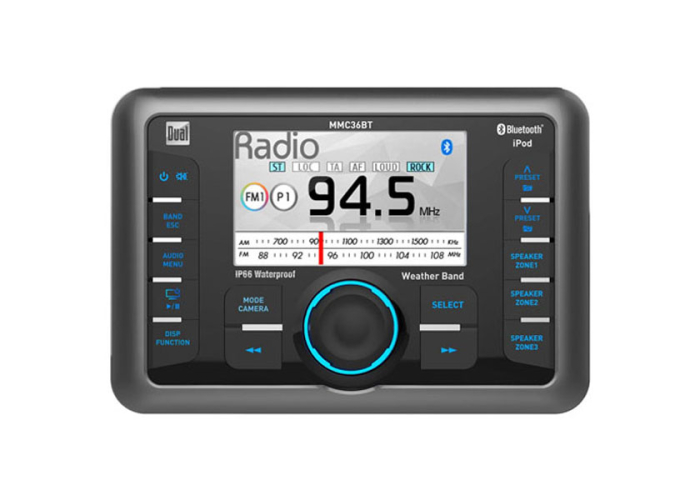

Dual MMC36BT Marine Digital Media Control Centre

Dual MMC36BT Marine Digital Media Control Centre
(Dual MMC36BT)

We Think You Should Know

• Australian Dual Warranty
• Purchase Guarantee (see T&C's)
• 3" Full-colour LCD
• IP66 Rated Waterproof
• Bluetooth Audio Streaming
• iPlug Smart Remote App
• 60 Watts by 8 Ch
• Camera input

Overview

Why You Should Buy the Dual MMC36BT Marine Media Center

When it comes to marine audio, space-saving design, durability, and seamless connectivity are key—and the Dual MMC36BT Marine Media Center delivers on all fronts. Built specifically for the rigors of life on the water, this compact but powerful media center is the perfect solution for boats, ATVs, and other outdoor vehicles where space and weather resistance matter just as much as sound quality.

The MMC36BT is engineered with a compact, gauge-style form factor that fits perfectly into tight dashboards while still offering a full-featured audio experience. With built-in Bluetooth, you can stream music and take calls wirelessly from your smartphone, giving you total control without the need for extra wires or bulky equipment. Its rugged design, IPX6 waterproof rating, and UV-resistant materials make it ideal for use in wet, sunny, or high-vibration environments.

Technical Specifications:
The MMC36BT delivers 480 watts of peak power (60W x 8 channels) and includes built-in Bluetooth for hands-free calling and wireless audio streaming. It features a 3-inch full-color LCD screen with intuitive controls and a rotary volume knob for easy operation. Input options include a rear USB port, 3.5mm AUX input, and a composite video input for camera integration. The unit supports AM/FM radio with 30 station presets (18 FM / 12 AM) and has two pairs of preamp outputs for system expansion. Its IPX6 waterproof rating and conformal-coated circuit board provide maximum durability for marine and outdoor use.

With its sleek design, marine-grade toughness, and versatile connectivity, the Dual MMC36BT Marine Media Center is a smart, space-efficient upgrade for any boat or off-road vehicle. It delivers powerful audio, intuitive control, and long-lasting performance—no matter where your adventures take you.

Features

Vibrant 3" Full-Colour LCD: Dive into a world of visual delight with the crisp and clear 3" full-colour LCD screen. Easily navigate through your media options, playlists, and settings with an intuitive interface that ensures you stay in control.

Seamless Bluetooth Audio Streaming: Enjoy your favourite tunes wirelessly with Bluetooth audio streaming. Connect your smartphone or other compatible devices and let the Dual MMC36BT turn your boat into a party on the water.

iPlug Smart Remote App: Take command of your audio system effortlessly using the iPlug Smart Remote app, available for both Apple and Android smartphones. Whether you're adjusting volume, selecting songs, or fine-tuning your sound, it's all at your fingertips.

Watertight wired controller: With the "black box" installed down below, you control everything from the IPX6-rated watertight wired controller installed topside. The 3” TFT colour LCD screen and intuitive control buttons make it easy to switch sources or change the tune. The controller is engineered to stand up to the extremes of a marine environment, so splashes, spray, and sunlight won't stop the music.

Start your system here: With three sets of preamp outputs (including sub outputs), the MMC36BT is a terrific building block for an epic marine audio system. The built-in 4-channel amp sends 18 watts RMS per channel to three different zones, while the 3-zone speaker selector (with separate subwoofer control) lets you adjust the sound all over the vessel. That's a handy thing to have on any size boat, as is the ability to connect a rear-view camera to an RCA input. And the zero-current draw memory backup will preserve your boat's battery when you're not around.

Conformal Coating: A transparent protective film is applied to surfaces of all interior printed circuit boards. This additional layer of defense guards against dust, condensation and corrosion – ensuring maximum longevity.

Dual Electronics - The Company

Dual Electronics Corporation is an international company headquartered in Heathrow, Florida. Dual has made monumental contributions to the innovation, evolution and distribution of consumer electronics - from the introduction of stereophonic sound to the creation of the first remote-controlled high fidelity cassette player, and beyond.

Dual launched ranges of Home Audio, Car Audio and Marine Audio into the market in 2001 and was quickly accepted as offering great quality products at even better prices. Their products are often reviewed against much higher valued products and always deliver great bang for your buck.

• 3” Full colour LCD
• IP66 rated waterproof
• 480 Watts (60 Watts x 8) MOSFET
• Built-in Bluetooth for streaming
• Digital media receiver – does not play CDs
• Direct USB control for iPhone® devices
• Rear USB input (2.1 Amp)
• 7 Channel weather band tuner
• Rear RCA aux input
• Camera input
• 3 Pairs of 4V RCA preamp outputs (Front/Rear/Sub)
• 3 Zone speaker control
• Dual iPlug smart app control via Bluetooth (Apple®/Android™)
• 3 Band tone control (Bass/Mid/Treble)
• 7 Preset EQ curves (Pop, Rock, Jazz, Classical, Beat, Flat, User)
• Includes RCA and USB to 3.5 mm and USB adapter
• Includes 9.8’ (3 m) 13 pin DIN cable (connects controller to black box)
• Zero current draw
• Low battery alert
• ASTM B117 and ASTM D4329 compliant
• Compatible with Dual MWR17 remote control (sold separately)
• AM/FM Receiver with 30 Station presets (18FM/12AM)

• Wired media controller
• Hide-away source/amp unit (20A fuse)
• 10" System controller cable
• 2 Wiring harnesses
• 6.5' USB/Aux extension cable (w/ 2 collars and rubber cap)
• Mounting bracket
• Self-adhesive gasket
• Rubber cover (for media controller)
• 2 Bolts 2 Hex-huts
• 2 Lock-washers
• 4 Screws
• 4 Rubber caps
• Quick Start Guide
