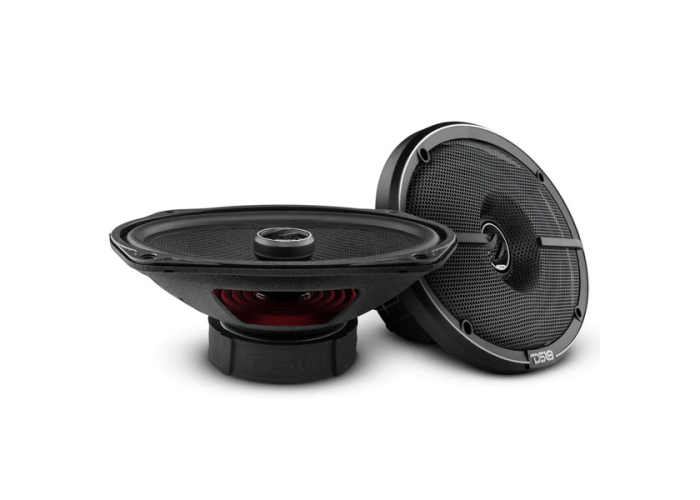

DS18 ZXI-694 360W 6x9'' 2-Way Speakers - 1Pair

SKU
ZXI694
In stock
$158.85 $209.00
Buy Now Pay Later
Buy now pay later
from $10
4 x $39.71
4 x $39.71

DS18 ZXI-694 360W 6x9'' 2-Way Speakers - 1Pair
(DS18 ZXI694)

We Think You Should Know

  • Genuine Australian DS18 Warranty
  • Peace of Mind Purchase Guarantee
  • 6 x 9'' 2-Way Coaxial Speakers
  • 360W Peak Power / 120W RMS Power
  • Ferrite Magnet
  • Glass Fibre Cone

Overview

Immerse yourself in a musical journey like never before with the DS18 ZXI-694 - the ultimate solution for audiophiles seeking to elevate their car audio system's sound quality. This speaker is meticulously designed to deliver powerful sound with minimal distortion, ensuring an enhanced listening experience that will captivate your senses.

At the core of the ZXI-694 is a Kevlar cone woofer with a rubber surround, creating the perfect blend for precise and punchy bass responses. Kevlar, renowned for its durability and lightweight properties (commonly used in bulletproof vests), proves ideal for speaker cones due to its exceptional strength-to-weight ratio. Teamed up with the rubber surround, the ZXI-694 minimizes unwanted vibrations, resulting in a cleaner and more accurate sound reproduction.

The 2-way design of the ZXI-694 pairs the 6 x 9 woofer with a 1-inch Neodymium Magnet Tweeter, introducing unmatched clarity and detail in the higher frequency range. Neodymium magnets, known for their lightweight yet powerful characteristics, enable the speaker to reproduce accurate high frequencies without adding extra weight, ensuring a well-balanced and natural sound.

With a frequency response spanning from 31.5Hz to 20KHz, the ZXI-694 is engineered to deliver clear and powerful sound across the entire frequency spectrum, providing you with an immersive auditory experience.

DS18 Car Audio - The Company

DS18 is a leading electronics manufacturer specializing in Mobile, Marine & Home Electronic equipment with its headquarters in Miami, FL, USA. DS18 was created and developed by a team of young and determined professionals who understand the needs in today’s audio industry. Offering several series of amplifiers, speakers, subwoofers, tweeters, midranges, cables, accessories, component sets and much more DS18 guarantees to satisfy customers seeking a wide assortment of products.

SKU
ZXI-694
Nominal Diameter
6X9" / 162*235mm
Nominal Impedance
4 ohm
RMS Power Handing
120W
MAX Power Handing
360W
Sensitivity (1w/1m)
92dB
Frequency Response
31.5Hz-20KHz
Recommended HI Pass Crossover
50Hz
Number of ways
2-Way

MIDRANGE

Voice Coil Diameter
1.2" / 30.4mm
Voice Coil Former Material
KSV
Winding Material
EISV
Cone Material
Glass fiber
Surround Material
Rubber
Basket Material
Steel
Magnet Material
Barium Ferrite
Magnet Weight
550g

TWEETER

Nominal Diameter
1" (25.4mm)
Voice Coil Diameter
0.8"(20.4mm)
Voice Coil Former Material
KSV
Winding Material
EISVM
Diaphragm Material
PEI
Magnet Material
Neodymium
Magnet Weight
8.5g

THIELE & SMALL PARAMETERS

Equivalent Volume Vas
17.52L
Excursion (one way) Xmax
3.3mm
Free Air Resonance Fs
58Hz
Mechanical Factor Qms
5.77
Electrical Factor Qes
1.18
Total Factor Qts
0.98
Mechanical Mass Mms
23.44g
Mechanical Compliance Cms
286mm/N
BL Factor Bl
5.18
Voice Coil Inductance Le
178mH
Cone Area Sd
207.7cm2
DC Resistance Re
3.5 ohm
Mechanical Mass w/o air Mmd
20g

MEASUREMENT

Overall Diameter
6.37X9.25" / 162*235mm
Overall Depth
3.66" / 93mm
Front Mount Baffle Cutout
5.94x8.70" / 151*221mm
Mouting Depth
3.22" / 82mm
Motor Diameter
4.09" / 104mm

  • 1 Pair of DS18 ZXI-694 360W 6x9'' 2-Way Speakers

Peace of Mind Purchase Guarantee
This product is supplied via DS18 Australia and enjoys the FULL benefits of the 'Genuine DS18 Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department or you can speak with DS18 Australia directly.

We are a FULLY AUTHORISED Australian retailer for DS18 Australia.
