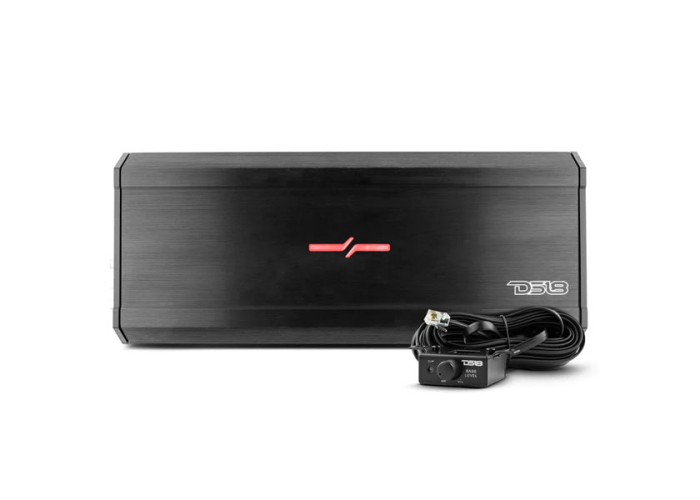

DS18 ZXI.5 5000W 5-Channel Class D Amplifier
DS18 ZXI.5 5000W 5-Channel Class D Amplifier
(DS18 ZXI.5)
We Think You Should Know
- Australian DS18 Warranty
- Purchase Guarantee (see T&Cs)
- 5-Channel Full Range Class-D Subwoofer
- 1 ~ 4 Ohm Stable
- 4 x 125 Watts @ 4 Ohm + 1 x 1000 Watts @ 1 Ohm
- Built in Crossover
- Bass Control Knob
Overview
In the realm of car audio innovation, DS18 stands as a pioneer, consistently pushing boundaries to redefine excellence. Introducing the ZXI.5, a monumental evolution of the esteemed Z Series amplifiers, setting a new standard in audio performance.
DS18's ZXI.5 transcends the realm of mere amplifiers; it's a meticulously crafted powerhouse seamlessly fusing aesthetics with rugged durability. Concealed within its sleek, contemporary design are high-efficiency heat sinks and premium circuitry, engineered to maintain optimal performance even under the most demanding conditions, ensuring uninterrupted sonic bliss when it matters most.
Delivering a formidable 125W x 4 @ 4-Ohm RMS and an astounding 1000W x 1 @ 1-Ohm RMS, the ZXI.5 isn't just about playing music; it commands it. Experience thunderous bass and pristine highs with unprecedented clarity and depth, immersing you in an audio journey like never before. It's not just about volume; it's about transporting you to a realm of unparalleled auditory excellence.
Fine-tuning your audio system has never been simpler. With the DS18 ZXI.5, precision tuning is at your fingertips, courtesy of easily adjustable crossovers and a versatile 0 to 180-degree phase switch. Whether you're a connoisseur of booming bass or a seeker of crystalline highs, this amplifier empowers you to sculpt your soundstage to perfection, ensuring an audio experience tailored to your exacting standards.
The DS18 ZXI.5 isn't just an amplifier; it's the conduit to unlocking the full sonic potential of your vehicle. Elevate your car audio to legendary status and treat your ears to the auditory nirvana they deserve.
DS18 - The Brand
DS18 manufactures high-quality car audio products, including speakers, amplifiers, subwoofers, and more. The company was founded in 2009 and has since grown to become a leading brand in the car audio industry, known for its innovative designs and commitment to quality.
SPECS
SKU
ZXI.5
Total Watts (Peak)
5000W
RMS Power @ 4 Ohm
4 x 125W + 420W (SUB)
RMS Power @ 2 Ohm
4 x 170W + 705W (SUB)
RMS Power @ 1 Ohm
1000W (SUB)
RMS Power @ 4 Ohm Bridge
2 x 340W
AUDIO
Frequency Response
20Hz-20KHz
Signal to Noise Ratio
>90dB
Efficiency @ 4 Ohm
>85%
Damping Factor
>200
Total Harmonic Distortion (THD)
<0.1%
Low Level Input Range
0.2 - 6v
High Level Input
No
Selectable X-Over
LPF/FULL/HPF
X-Over Filter Range
40Hz-4KHz (50-250Hz SUB)
Bass Boost Range
0-18dB
Bass Boost Frequency
45Hz
Infrasonic Filter
10-55Hz
Phase Selector
No
FEATURES
Amplifier Class
Digital
Amplifier Type
Stereo Full Range
Number of Channels
5
Minimum Impedance
2 ohm (Stereo) / 4 ohm (Bridge) / 1 ohm (SUB)
Led Indicator
Power/Protection/Clip
Power Input Terminal Size
4ga
Fuse Size
200A (External)
Remote Level Control
Yes
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes (>160?F / 71?C)
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (8.5-16.8V)
Cliping Protection
Yes
Body Color / Finish
Black Aluminum Brush
EXTRA FEATURES
Tiffany RCA connectors
Yes
Input Selector
Yes (4ch/5ch)
Compact Size to easy Installation for Any Applications
Yes
Stable/Reliable Two Layers Traces PCB Design
Yes
Quality Control Verification using Audio Precision Instruments
Yes
MEASUREMENT
Overall Length
14.2" / 360.6mm
Overall Width
5.66" / 144mm
Overall Height
1.9" / 48.5mm
Heatsink Length
13.4" / 340.6mm
- DS18 ZXI.5 5000W 5-Channel Class D Amplifier
Peace of Mind Purchase Guarantee
This product is supplied via DS18 Australia and enjoys the FULL benefits of the 'Genuine DS18 Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department or you can speak with DS18 Australia directly.
We are a FULLY AUTHORISED Australian retailer for DS18 Australia.
