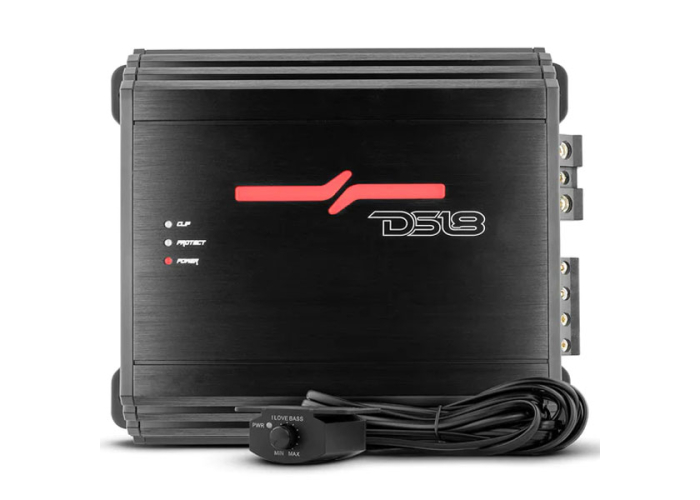

DS18 ZR500.1D 1500W 1-Channel Class D Amplifier
DS18 ZR500.1D 1500W 1-Channel Class D Amplifier
(DS18 ZR500.1D)
We Think You Should Know
- Australian DS18 Warranty
- Purchase Guarantee (see T&Cs)
- 1-Channel Monoblock Subwoofer
- 1 ~ 4 Ohm Stable
- 1 x 500 Watts @ 1 Ohm
- Bass Control Knob
- Clip/Protection Indicator
Overview
The ZR series stands as a revolutionary force, meticulously crafted to optimize your sound system and unleash its full potential.
Enter DS18's ZR500.1D, a powerhouse amplifier offering an impressive array of tuning options, including Lowpass, Subsonic, alongside a Gain Knob and Bass Boost Switch Selector, enabling you to fine-tune every song to your desired frequency. This level of customization ensures that each note resonates with impeccable precision, tailored to your unique listening preferences.
With a commendable 200W RMS @ 4-Ohm, 300W RMS @ 2-Ohm, and 500W RMS @ 1-Ohm power output, the ZR500.1D provides the perfect amount of power to fuel your bass, effortlessly propelling your speakers to their maximum potential and creating a rich and immersive audio environment.
The ZR500.1D exemplifies DS18's unwavering commitment to excellence. Its Full Range design maximizes efficiency, while the impressive 2400 Peak Wattage ensures each speaker receives the necessary power. With a frequency response of 10Hz – 220Hz, this amplifier faithfully reproduces the deepest lows with remarkable clarity and accuracy.
Designed to optimize your sound system for powerful performance during every session, the ZR500.1D features LED indicators for Clipping, Power, and Protect, providing valuable visual feedback for optimal performance. The power and ground terminals accommodate 4 Ga wires, ensuring a secure and reliable connection. Additionally, selectable X-Over options grant you the ability to fine-tune your bass, enabling seamless integration with your existing sound system and putting you in complete control of your soundstage.
Experience the DS18 difference today with the ZR500.1D and unlock a new dimension of car audio excellence.
DS18 - The Brand
DS18 manufactures high-quality car audio products, including speakers, amplifiers, subwoofers, and more. The company was founded in 2009 and has since grown to become a leading brand in the car audio industry, known for its innovative designs and commitment to quality.
SPECS
SKU
ZR500.1D
Total Watts (Peak)
1500W
RMS Power @ 4 Ohm
200W
RMS Power @ 2 Ohm
300W
RMS Power @ 1 Ohm
500W
AUDIO
Frequency Response
10-220Hz
Signal to Noise Ratio
>95dB
Efficiency @ 4 Ohm
85%
Damping Factor
160
Input Impedance
20K ohm
Channel Separation
N/A
Total Harmonic Distortion (THD)
0.01%
Low Level Input Range
0.2-6V
High Level Input
No
Selectable X-Over
LPF Fixed
X-Over Filter Range
50-220Hz
Bass Boost Range
0/6/12dB
Bass Boost Frequency
45Hz
Infrasonic Filter
10-50Hz
Phase Selector
No
FEATURES
Amplifier Class
Digital
Amplifier Type
Monoblock Subwoofer
Number of Channels
1
Minimum Impedance
1 Ohm
Led Indicator
Clipping/protect/power
Power Input Terminal Size
4 GA
Fuse Size
60 A
Remote Level Control
Yes / Dash Mount
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes <9 / >16 Volts
Clipping Protection
Yes
Body Color / Finish
Black Aluminum Brush
MEASUREMENT
Overall Length
8.46" / 215mm
Overall Wide
7.24" / 184mm
Overall Height
2" / 53mm
Heatsink Length
7" / 180mm
- DS18 ZR500.1D 1500W 1-Channel Class D Amplifier
