DS18 SDX1 Single Din Digital Media Receiver

DS18 SDX1 Single Din Digital Media Receiver
(DS18 SDX1)

We Think You Should Know

• Australian DS18 Warranty
• Purchase Guarantee (see T&Cs)
• Digital Media Single Din Receiver
• Mech-Less
• BT / SD / USB /  AUX
• AM/FM
• 7 Selectable Colors
• Remote Control
• EQ and Subwoofer Control

Overview

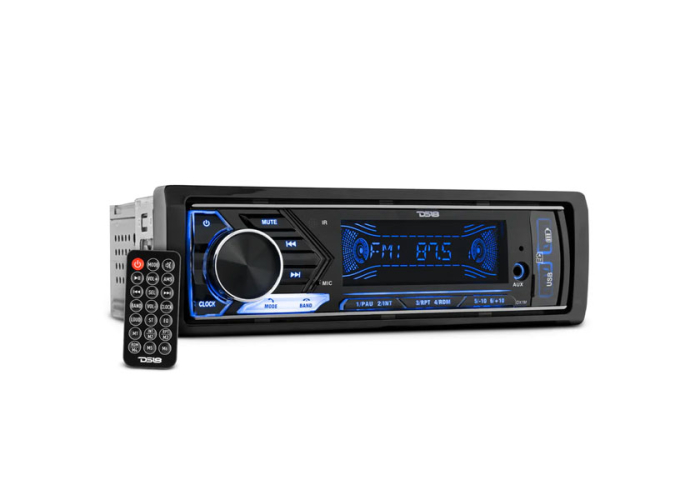

The SDX1 from DS18 is your go-to solution for a powerful yet user-friendly car radio system. This mech-less single DIN unit packs a punch with 50 watts max output across all four channels, ensuring clear and robust audio playback. While it lacks a CD/DVD player, it compensates with versatile USB, SD, and Bluetooth connectivity, accommodating up to 64GB drives for your audio files.

With adjustable pre-amp outputs reaching up to 7 volts, the SDX1 enables you to optimize your amplifier performance, delivering clean sound even at high volume levels. Its 18 memory locations allow you to save your favorite radio stations for quick access.

Customization is key with the SDX1, featuring backlit RGB keys that let you match the unit's colors to your mood or car's interior. The 3-inch VA white display remains bright and clear, ensuring easy readability. Fine-tune your sound with the 2-band equalizer, adjusting levels, bass, treble, balance, fade, and subwoofer controls effortlessly.

Connectivity is seamless with two front USB ports offering charging functionality, along with a front AUX input jack for added convenience. Whether you're starting your audio build or upgrading your current system, the SDX1 is the perfect choice for a high-powered, feature-rich single DIN head unit.

DS18 - The Brand

DS18 manufactures high-quality car audio products, including speakers, amplifiers, subwoofers, and more. The company was founded in 2009 and has since grown to become a leading brand in the car audio industry, known for its innovative designs and commitment to quality.

SPECS

SKU
SDX1
Rated power source
14.4V DC (11V to 16V operation)
Maximum Current Consumption
10 Amp
Dimensions (W x H x D)
Chassis: 178mm x 50mm x 150mm Bezel frame: 188mm x 58mm x 30mm
Weight
15.9 Oz / 452 grams

DISPLAY

Screen Size
3" / 75 x 25mm
Display Type
VA LCD
Temperature Operation
-20C to +60C (14F to 140F)

AUDIO

Maximum Power Output
50W X 4 Ch @ 4 ohm (14.4v)
Continuos Power Output
17W x 4 Ch @ 4 ohm (14.4v)
Pre-output Level
7 Volts (14.4V)
Equalizer
2 bands (Bass: 60Hz, Treble: 10KHz)
Gain
+/- 7dB
Preset EQ
Jazz / Rock / Pop / Classic
Audio Control
Volume / Balance / Fader / Loudness / Bass / Treble
Subwoofer Control
Vol (0-20) / Cut (80/120/160 Hz)
Signal to Noise Ratio
>60dB
THD
<0.3%
Frequency Response
20Hz - 20Khz

TUNER

Frequency Range
FM: 87.5 ~ 107.9 KHz
Presets Memory
18 Stations
Region
North America
Sensitivity Adjustment
LOC / DX & ST / Mono
Sensitivity
<20dB
Stereo Separation
>25dB

USB / SD PLAYER

Type/Class
V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS
Format Files Supported
MP3, WMA, FLAC, MAV
Info Display Format
ID3 Tag
Memory Size Reader
up to 64 Gb
Max Current Supply
1.5 Amp (Charging USB port)
Number of USB Ports
2 x Front (1 for Audio / 1 for Charging)
SD Slot
1 x Front Micro SD

CONNECTIVITY

Bluetooth Version / Services
V4.1 / Audio Streaming / Hands Free calls
Audio Protoco
A2DP v1.2 Sink (SNK)
Aux input
Front 3.5mm Jack Stereo Audio
Microphone
Built-In Microphone on faceplate
Remote Control
Frontal IR Receptor
