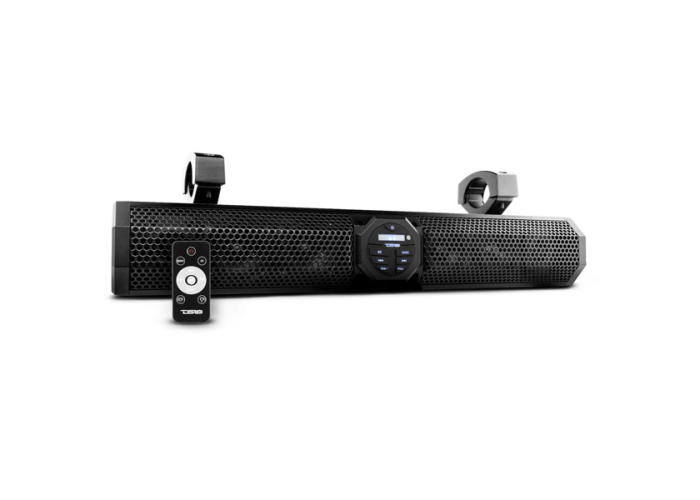

DS18 SB24BT Marine Amplified Bluetooth Sound Bar System
DS18 SB24BT Marine Amplified Bluetooth Sound Bar System
(DS18 SB24BT)
We Think You Should Know
- Australian DS18 Warranty
- Purchase Guarantee (see T&C's)
- 24'' Marine Sound Bar Speaker System
- Amplified Class A/B w 1200W Peak Power
- 6 Speakers: 4x3'' + 2x1"
- Bluetooth 5.0, A2DP, USB & Aux-In
- Clamp System Mount
- IPX5 Water Resistant
Overview
DS18’s HYDRO SB24BT is a powerhouse of audio excellence meticulously crafted to enhance your outdoor experience.
With a waterproof built-in amplifier, this sound bar delivers a punch at 600W MAX Power through the four 3-inch woofer drivers pre-installed in the system. Immerse yourself in high-fidelity sound that effortlessly cuts through the noise of any terrain or water body, ensuring every note and beat is crystal clear and captivating.
Installation is made easy with the robust clamping system, adjustable from 1.5 to 2.25 inches in diameter, guaranteeing a secure and stable setup regardless of your journey's destination. DS18’s HYDRO SB24BT is engineered to seamlessly integrate into any setup, providing a hassle-free experience.
Take command of your music with the user-friendly control panel. Effortlessly switch between songs and folders using Bluetooth connectivity or utilize the USB slot option for added versatility. DS18’s HYDRO SB24BT empowers you to curate your personalized soundtrack for every adventure.
Crafted with marine-grade materials and boasting an IPX5 rating, the SB24BT is specifically designed to withstand the harshest elements. Its aluminum body with an oxidized black hemp sand finish not only exudes style but also ensures durability for years to come. The steel mesh grill adds an extra layer of protection without compromising on sound quality, making DS18’s HYDRO SB24BT a reliable and stylish choice for outdoor audio enthusiasts.
DS18 - The Brand
DS18 manufactures high-quality car audio products, including speakers, amplifiers, subwoofers, and more. The company was founded in 2009 and has since grown to become a leading brand in the car audio industry, known for its innovative designs and commitment to quality.
SPECS
SKU
SB24BT
Nominal Size
37" / 940mm
Total Watts (Peak)
1200W
RMS Power @ 4 ohm (Internal Amp)
200W
MAX Power @ 4 ohm (Internal Amp)
400W
Frequency Response
45Hz-20KHz
Storage Temperature
5F ~ 176F (-15C ~ 80C)
Operation Temperature
32F ~ 140F (0C ~ 60C)
Operation Voltage
12 Volts (10~16 Volts Range)
BT Version
v5.0
Audio Protocols
A2DP
Range
>33ft (10m)* / Class 2
BODY / FEATURES
Marine Grade Type
IPX5
Body Material / Color / Finish
Aluminum / Oxidized Black Hemp Sand
Grill Type
Steel Mesh
Qty on box
1 Pcs
Clamps
3 Set (Tube Clamp Adjustable 1.5" ~ 2.25")
Front Logo
Yes
RCA Line Out (Pre-Amp)
No
Aux Line Input
Yes, (720mV)
EQ / DSP
5 Preset EQ (for BT and USB Mode)
Remote Out
No
USB Player
Yes (WMA, MP3 files)
USB Charger
Yes (1Amp)
Buttons / Controls
Yes (Power, Mode, Play/Pause, Fwd, Bwd, Vol+/Vol-)
Remote Control
Yes (IR Card Type)
Illumination
Yes (Blue Backlit)
WOOFER SPECIFICATIONS
Nominal Diameter
3" / 76.2mm (8 Pcs)
Voice Coil Diameter
0.8" / 20.4mm
Voice Coil Former Material
Kapton
Cone Material
Spk1: PPI / Spk2: Paper
Surround Material
Spk1: Rubber / Spk2: Cloth
Basket Material
Steel
Magnet Material
Ferrite
Motor Diameter
2.36" / 60mm
TWEETER SPECIFICATIONS
Nominal Diameter
0.94" / 24mm (2 Pcs)
Voice Coil Diameter
0.8" / 20.4mm
Type
Dome
Diaphragm Material
Soft Dome
Magnet Material
Neodymuim
Crossover
6dB/oct
AMPLIFIER SPECIFICATIONS
Amplifier Class
Class A/B
Amplifier Type
Stereo Full Range
Number of Channels
4
Minimum Impedance
4 ohm
Signal to Noise Ratio
68dB
T.H.D.
1% @ 1000Hz
Channel Separation
60dB
Audio Source
BT, USB, AUX
Power Input Wire Size
2x14ga
Recommend Fuse Size
15A
MAX Current Draw
11A
Thermal Protection
Yes (>284?F / 140?C)
Over-Load Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
No
