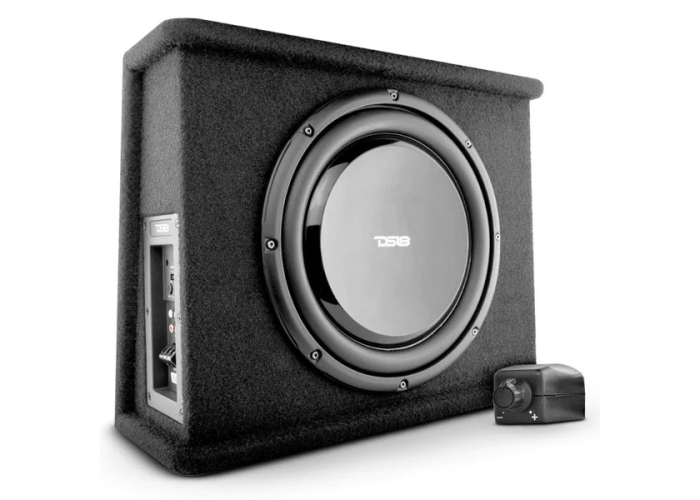

DS18 SB10A 10'' 700W Shallow Subwoofer Enclosure
DS18 SB10A 10'' 700W Shallow Subwoofer Enclosure
(DS18 SB10A)
We Think You Should Know
- Australian DS18 Warranty
- Purchase Guarantee (see T&C's)
- Subwoofer Enclosure
- 1 X 10" Shallow Mount
- Amplified with Subwoofer Control Knob
- Peak Power: 700 W, RMS Power: 350 W
- Impedance: 2 Ohm
- Black Carpet
Overview
The DS18 SB10A is the ultimate solution for audio enthusiasts seeking powerful bass in tight spaces. Encased in a rugged 0.6-inch MDF sealed box, this slim 10-inch subwoofer defies expectations by delivering earth-shattering bass while seamlessly fitting into any vehicle.
Equipped with a high-powered amplifier boasting 350W RMS and a staggering 700W MAX, the SB10A ensures every beat hits with precision and intensity. Its compact enclosure, with an internal volume of 12 liters (0.42 ft3), strikes the perfect balance between size and performance. With a frequency response ranging from 38Hz to 250Hz, the SB10A produces rich and deep bass notes that resonate throughout your vehicle.
Safety and protection are paramount in the SB10A's design. Thermal protection prevents overheating, while over-load, DC output, and short circuit protection provide peace of mind during intense audio sessions. The remote level control, selectable crossover, and bass boost range of 0-6 dB at 50Hz allow for precise bass tuning, effortlessly transforming your driving experience into a concert on wheels.
Versatile connectivity options, including high-level inputs and RCA jacks, ensure seamless integration with any existing audio system. Simply hook it up, sit back, and let the SB10A's powerful bass take control of your audio experience.
DS18 - The Brand
DS18 manufactures high-quality car audio products, including speakers, amplifiers, subwoofers, and more. The company was founded in 2009 and has since grown to become a leading brand in the car audio industry, known for its innovative designs and commitment to quality.
SPECS
SKU
SB10A
Speaker Type / Size
10" / 261mm
Total Impedance
2 Ohm
Total RMS Power Handling
350W
Total MAX Power Handling
700W
Sensitivity (1w/1m)
83dB
Frequency Response
38-250Hz
SPEAKER SPECIFICATIONS
Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
Aluminum
Winding Material
EISV
Cone Material
IPP
Dust Cap Material
N/A
Surround Material
Rubber
Basket Material
SPCC
Magnet Material
Ferrite
Magnet Weight
40 Oz
AMPLIFIER SPECIFICATIONS
Amplifier Class
Digital
Amplifier Type
Monoblock Subwoofer
Number of Channels
1CH
Minimum Impedance
2 Ohm
Signal to Noise Ratio
75 dB
Efficiency @ 4ohm
75%
Total Harmonic Distortion (THD)
0.30%
Low Level Input Range
0.1-0.6 V
High Level Input
Yes
Selectable X-Over
LPF Fixed
X-Over Filter Range
50 - 200 Hz
Bass Boost Range
0-6 dB
Bass Boost Frequency
50 Hz
Infrasonic Filter
No
Phase Selector
0-180
Led Indicator
Power / Protection
Power Input Terminal Size
8 Ga
Fuse Size
30 A
Remote Level Control
Yes
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (<8v,>16v)
Clipping Protection
No
BOX SPECIFICATIONS
Internal Volume
12L / 0.42ft3
Port Tune Fb
N/A
Load Configuration
parallel in
Box Type
Sealed Box
Box Material
0.59" MDF
Finish Material
NON-Woven fabric
-3Db Dropping Point F3
48Hz
MEASUREMENT
Height
13.6" / 345.4mm
Width
16.7" / 424mm
Depth 1
4.82" / 122.6mm
Depth 2
7.9" / 201mm
Gross Single Unit Weight
15.4Lb / 7KG
- DS18 SB10A 10'' 700W Shallow Subwoofer Enclosure
Peace of Mind Purchase Guarantee
This product is supplied via DS18 Australia and enjoys the FULL benefits of the 'Genuine DS18 Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department or you can speak with DS18 Australia directly.
We are a FULLY AUTHORISED Australian retailer for DS18 Australia.
