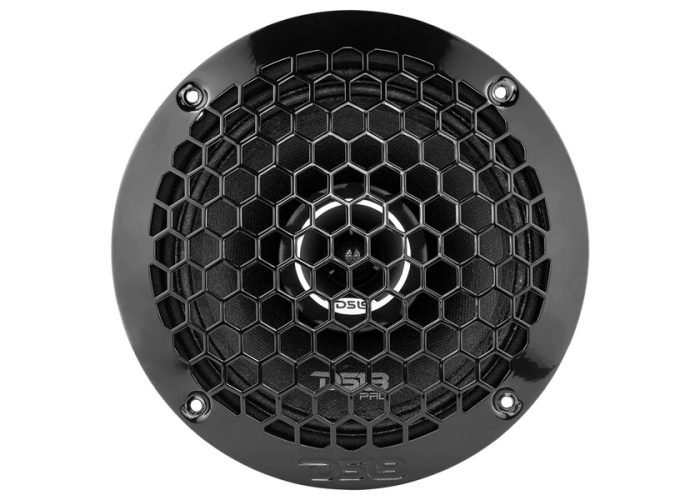

DS18 PRO-ZT 450W 6.5" Mid-Range Speaker
DS18 PRO-ZT 450W 6.5'' Mid-Range Speaker w Tweeter & Grill - Single
(DS18 PRO-ZT6)
We Think You Should Know
- Australian DS18 Warranty
- Purchase Guarantee (see T&C's)
- Sold in single units
- 6.5'' Mid-Range Loudspeaker
- 450W Peak / 225W RMS Power
- 4 ohms Impedance
- 96dB sensitivity
- Ferrite & Neodymium Magnets
- Built-in Tweeter
- Water Resistant
- Grill Included
Overview
6.5” Water Resistant Mid-Range Loudspeaker with Built-in Bullet Tweeter and Grill 450W 4-Ohm
With its built-in bullet tweeter, grill, and impressive specs, the PRO-ZT6 will revolutionize your driving experience like never before. Built around a neodymium magnet, the PRO-ZT6 generates an unmatched magnetic flux density in the air gap, resulting in tremendous action force in the voice coil.
The PRO-ZT6 features a frequency response range of 65Hz - 22KHz, allowing you to enjoy every nuance and detail of your favourite music. The PRO-ZT6 delivers accurate sound reproduction across the entire audio spectrum. With its high-powered tweeter and integrated filter, you'll experience impeccable highs that soar effortlessly. Coupled with a robust 6" cone to handle the low-end frequencies, the PRO-ZT6 ensures a harmonious and immersive listening experience. Included with the speaker is a durable grill, safeguarding against accidental kicks and scuffs. Rest assured knowing that your investment is shielded from potential damage, allowing you to enjoy your music worry-free.
With a nominal impedance of 4 Ohms, the PRO-ZT6 is optimized for seamless integration into your car’s audio system. Its RMS power handling of 225W and MAX power handling of 450W ensure that every beat and note is delivered with remarkable clarity and precision. The PRO-ZT6 is not just powerful; it's also incredibly sensitive. With a sensitivity rating of 96dB (1w/1m), you'll experience an impressive sound output even at lower power levels. Elevate your driving experience with the PRO-ZT6 and feel the power of music like never before.
DS18 Car Audio - The Company
DS18 is a leading electronics manufacturer specializing in Mobile, Marine and Home Electronic equipment, headquartered in Miami, FL, USA. DS18 was created and developed by a team of young and determined professionals who understand the needs of today’s audio industry—offering several series of amplifiers, speakers, subwoofers, tweeters, midranges, cables, accessories, component sets and much more DS18 guarantees to satisfy customers seeking a wide assortment of products.
| Nominal Diameter: | 6.5" (1651.1mm) |
| Nominal Impedance: | 4 ohms |
| RMS Power Handing: | 225 Watts |
| MAX Power Handing: | 450 Watts |
| Sensitivity (1w/1m): | 96dB |
| Frequnecy Response: | 65Hz - 22KHz |
| Recommended Hi Pass Crossover | 120Hz |
| Midrange | |
| Voice Coil Diameter: | 1.5" (38.1mm) |
| Voice Coil Former Material: | Kapton |
| Winding Material: | CCAW |
| Basket Material: | Steel |
| Magnet Weight: | 27 oz |
| Tweeter | |
| Voice Coil Diameter: | 1" |
| Voice Coil Material: | Kapton |
| Winding Material: | CCAW |
| Diaphragm Material: | Aluminium Alloy |
| Magnet Weight: | 0.44 oz |
| Magnet Material: | Neodymium |
| Thiele & Small Parameters | |
| Equivalent Volume / Vas | 2.917 LTR |
| Excursion / Xmax | 1.6mm |
| Free Air Resonance / Fs | 150Hz |
| Mechanical Factor / Qms | 3.906 |
| Electrical Factor / Qes | 0.747 |
| Total Factor / Qts | 0.701 |
| DC Resistance / Re | 3.2 |
| Measurements | |
| Overall Diameter: | 178mm (7") |
| Front Mount Baffle Cutout: | 144mm (5.67") |
| Mounting Depth: | 77mm (3.03") |
| Overall Depth: | 97mm (3.81) |
- 1 x DS18 PRO-ZT 6.5'' Mid-Range Speaker w Tweeter & Grill
- Sold in single units (not pairs)
