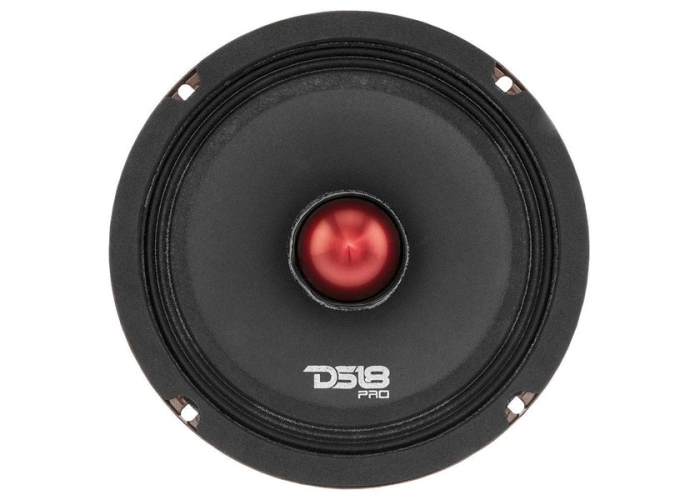

DS18 PRO-X 6.5" Shallow Mid-RNG Bullet Speaker

DS18 PRO-X 500W 6.5" Shallow Mid-Range Bullet Speaker - Single
(DS18 PRO-X6.4BMSL)

We Think You Should Know

• Australian DS18 Warranty
• Purchase Guarantee (see T&Cs)
• Sold in single units
• Designed in the U.S.A
• 6.5" Mid-Range Bullet Speaker
• 500W Peak / 250W RMS Power
• 4 ohms Impedance
• Ferrite Magnet
• Shallow
• 94dB Sensitivity

Overview

DS18 PRO-X 6.5" Slim Mid-Range Loudspeaker with Bullet 500 Watts 4-Ohm

Elevate your audio experience to new heights with the PRO-X6.4BMSL, a cutting-edge addition to the DS18 lineup. This compact powerhouse is designed to take your sound system to extreme levels of volume and performance.

Featuring a 1.5" Kapton Voice Coil, the PRO-X6.4BMSL is built to withstand the most intense jam sessions without compromising on quality. Its high-temperature resistance ensures that you can play this speaker as long as you want.

Engineered for convenience and compatibility, this speaker boasts a reduced mounting depth and an RMS Power Rating of 250 W. The PRO-X6.4BMSL effortlessly integrates into any build, making installation a breeze.

Equipped with DS18’s innovative Bullet Resonator, the PRO-X6.4BMSL unlocks a frequency range that will captivate your senses. From deep and powerful bass at 125Hz to crystal-clear highs reaching 8KHz, the PRO-X6.4BMSL delivers a complete spectrum of sound.

With a Nominal Diameter of 6.5" and a Nominal Impedance of 4 Ohms, this speaker strikes the perfect balance between size and performance. Its high 94 dB sensitivity ensures accurate tonal reproduction even at extreme volumes.

Designed with meticulous attention to detail, the PRO-X6.4BMSL features a sturdy steel basket with a vibrant red gloss finish, exuding an air of sophistication and style.

Elevate your sound system to unparalleled levels with DS18’s PRO-X6.4BMSL PRO-X 6.5" Slim Mid-Range Loudspeaker.

DS18 Car Audio - The Company

DS18 is a leading electronics manufacturer specializing in Mobile, Marine and Home Electronic equipment, headquartered in Miami, FL, USA. DS18 was created and developed by a team of young and determined professionals who understand the needs of today’s audio industry—offering several series of amplifiers, speakers, subwoofers, tweeters, midranges, cables, accessories, component sets and much more DS18 guarantees to satisfy customers seeking a wide assortment of products.

SPECS

SKU
PRO-X6.4BMSL
Nominal Diameter
6.5" (165.1 mm)
Nominal Impedance
4 ohms
RMS Power Handing
250 WATTS
Maximum Power Handing
500 WATTS
Sensitivity (1w/1m)
94dB
Frequency Response
125Hz-8KHz
Recommended Hi Pass Crossover
180 Hz

SPECS

Voice Coil Diameter
1.5" (38.1 mm)
Voice Coil Former Material
Kapton
Winding Material
CCAW
Basket Material
Steel
Magnet Weight
21 oz

THIELE & SMALL PARAMETERS

Vas
2.956 LTR
Xmax
6.4 mm
Fs
159 Hz
Qms
7.332
Qes
0.817
Qts
0.735
Re
3.2 ohms

MEASUREMENTS

Overall Diameter
165 mm (6.50")
Front Mount Baffle Cutout
143 mm (5.63")
Mounting Depth
54.5 mm (2.15")
Overall Depth
59.5 mm (2.35")
Product Weight
4 lbs
Product Dimensions
7 x 7 x 2.75
