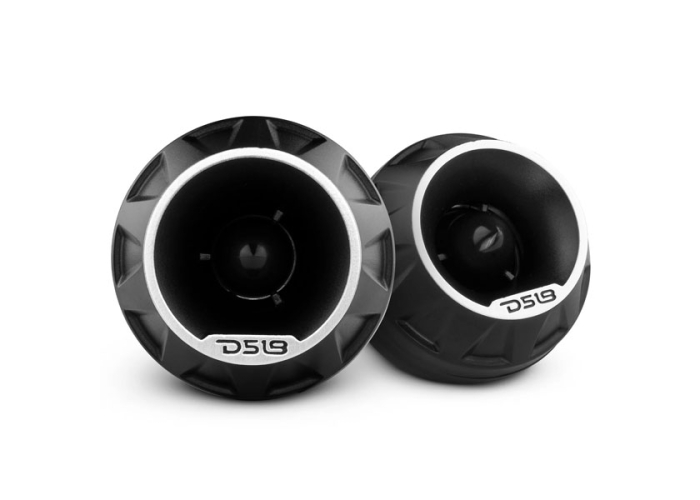

DS18 PRO 200W 1" VC Super Bullet Tweeters

DS18 200W 3" High Compression Neodymium Super Bullet Tweeters - Pair
(DS18 PRO-TSQ3IN1)

We Think You Should Know

• Australian DS18 Warranty
• Purchase Guarantee (see T&C's)
• 3" Super Bullet Tweeters - Pair
• 200W Peak / 100W RMS Power
• 4 ohms Impedance
• Neodymium Magnet
• 1" Voice Coil
• Flat / Angle / Flush Mounts
• Aluminium Diaphragm

Overview

3” Surface/Flush/Angle High Compression Neodymium Super Bullet Tweeter 100W Aluminium 4-Ohm VC

Do you crave versatility and the ability to customize your car audio experience to match your dynamic aesthetic? Look no further than DS18's PRO-TSQ3IN1, a tweeter designed to revolutionize your car audio system.

Adapting effortlessly to your installation needs, DS18’s PRO-TSQ3IN1 offers multiple mounting options with a simple flick of the wrist. Here at DS18, we understand the demands of car audio enthusiasts worldwide, which is why the PRO-TSQ3IN1 is engineered with a fully modular design, complete with all the necessary hardware for a seamless installation. But that’s just the beginning.  DS18's PRO-TSQ3IN1 goes beyond versatility. With three distinct mounting modes at your disposal, the PRO-TSQ3IN1 not only caters to your audio requirements but also presents a fresh new look every time you switch mounts.

With Peak Power Handling of 200 watts, the PRO-TSQ3IN1 takes very little wattage to achieve eardrum-shattering volume levels. Its astounding sensitivity of 102dB ensures that every nuance of your music is faithfully reproduced. The PRO-TSQ3IN1 features a 1" Kapton CCA voice coil engineered with a neodymium magnet structure. This powerful combination guarantees precise and accurate sound reproduction, allowing you to enjoy the richness of your favourite music. Its aluminium alloy diaphragm resonates with clarity, delivering a full spectrum of frequencies from 3kHz to 20kHz. Pair it with a recommended hi-pass crossover at 2kHz and immerse yourself in a world of audio excellence.

Experience firsthand the dynamic power of DS18's PRO-TSQ3IN1, and join the ranks of satisfied customers who have elevated their car audio setups to new heights.

DS18 Car Audio - The Company

DS18 is a leading electronics manufacturer specializing in Mobile, Marine & Home Electronic equipment with its headquarters in Miami, FL, USA. DS18 was created and developed by a team of young and determined professionals who understand the needs in today’s audio industry. Offering several series of amplifiers, speakers, subwoofers, tweeters, midranges, cables, accessories, component sets and much more DS18 guarantees to satisfy customers seeking a wide assortment of products.

SPECS

SKU
PRO-TSQ3IN1
Nominal Diameter
3" / 2.2mm
Nominal Impedance
4 Ohms
AES Power Handling
50W
Program Power Handling
100W
Peak Power Handling
200W
Sensitivity (1w/1m)
102 dB
Frequency Response
3K-20KHz
Recommended Hi Pass Crossover
2KHz

MOTOR

Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCA
Diaphragm Material
Aluminium Alloy
Body Material
ABS
Magnet Material
Neodymium

MEASUREMENTS / MODE 1 (FLUSH MOUNT)

Overall Diameter
2.95" / 75mm
Overall Depth
1.39" / 35.5mm
Front Mount Baffle Cutout
2.26" / 57.5mm
Mounting Depth
1" / 26mm

MODE 2 (ANGLE MOUNT)

Overall Width
2.26" / 57.5 mm
Overall Height
2.1" / 53.5 mm
Overall Depth
2.3" / 60 mm

MODE 3 (FLAT SURFACE MOUNT)

Overall Diameter
2.26" / 57.5 mm
Overall Height
1.4" / 35.9 mm

MEASUREMENTS

Product Weight
0.5 lbs
Product Dimensions
6.5 x 6.5 x 2.25
