DS18 6.5" Mid-Range Speaker w Built DRV - Pair

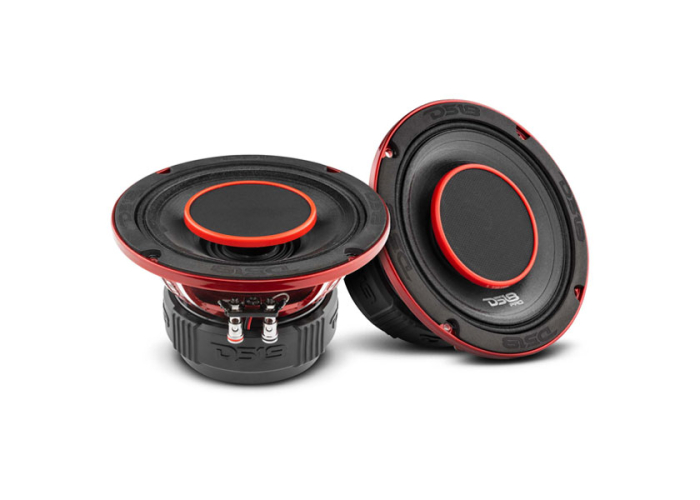

DS18 PRO 450W 6.5" Mid-Range Speaker w Built-in Driver - Pair
(DS18 PROHY64BPAIR)

We Think You Should Know

• Australian DS18 Warranty
• Purchase Guarantee (see T&Cs)
• Sold in Pairs
• Designed in the U.S.A
• 6.5" Mid-Range Speaker
• 450W Peak / 225W RMS Power
• 4 ohms Impedance
• Ferrite & Neodymium Magnets
• Built-in Driver
• 96dB Sensitivity
• IPX5 Water Resistant

Overview

6.5" Water Resistant Mid-Range Loudspeaker with Built-in Driver 450 Watts 4-Ohm

Breaking barriers and defying conventional audio limitations, DS18's PRO-HY6.4B Hybrid speakers bring you the best of both worlds. Designed to conquer the elements, the PRO-HY6.4B boasts water-resistant paper cones that effortlessly battle against nature's forces. Whether you're cruising on a motorcycle, navigating the open waters on a boat, or enjoying the ride in your trusty vehicle, these speakers are built to withstand the harshest conditions, all while maintaining peak performance.

The PRO-HY6.4B’s feature a high-volume 6.5" speaker and a 1" voice coiled driver, both rated at an astonishing 225W RMS and 450W MAX power handling. With a sensitivity of 96dB and a frequency response ranging from 100Hz to 20KHz, these speakers deliver crystal-clear sound reproduction across the entire audible spectrum.

DS18's PRO-HY6.4B driver boasts a diaphragm crafted from titanium, renowned for its remarkable stiffness-to-weight ratio. This premium material guarantees extraordinary clarity, allowing you to hear every nuance and detail in your favourite music with pristine accuracy. The driver's magnet material is none other than neodymium, a powerful and lightweight material that ensures superior control and response.

Every detail matters in the construction of the PRO-HY6.4B’s: its voice coil diameter of 1.5" and former made of glass fibre guarantee impeccable performance and durability. The cone, crafted from water-resistant paper, ensures longevity and resistance against the elements. The cloth surround, aluminium basket, and glossy red finish all contribute to an exquisite aesthetic that perfectly complements the exceptional audio quality. Elevate your car audio system to new heights and let the PRO-HY6.4B redefine your audio expectations.

DS18 Car Audio - The Company

DS18 is a leading electronics manufacturer specializing in Mobile, Marine and Home Electronic equipment, headquartered in Miami, FL, USA. DS18 was created and developed by a team of young and determined professionals who understand the needs of today’s audio industry—offering several series of amplifiers, speakers, subwoofers, tweeters, midranges, cables, accessories, component sets and much more DS18 guarantees to satisfy customers seeking a wide assortment of products.

SPECS

SKU
PRO-HY6.4B
Nominal Diameter
6.5" / 165.1mm
Nominal Impedance
4 Ohm
RMS Power Handling
225W
MAX Power Handling
450W
Sensitivity (1w/1m)
96dB
Frequency Response
100Hz - 20Khz
Recommended HI Pass Crossover
120Hz
Number of ways
2 ways

WOOFER SPECIFICATIONS

Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
Glass Fibre
Winding Material
CCAW
Cone Material
Water Resistant Paper (IPx5)
Surround Material
Cloth
Basket Material
Aluminium
Basket Color/Finish
Glossy Red
Magnet Material
Ferrite
Magnet Weight
27 Oz
Displacement Volume
0.047L / 0.0016ft3

THIELE & SMALL PARAMETERS

Equivalent Volume Vas
2.21L / 0.078ft3
Excursion (one way) Xmax
9.2mm
Free Air Resonance Fs
199Hz
Mechanical Factor Qms
5.96
Electrical Factor Qes
1.524
Total Factor Qts
1.214
Mechanical Mass Mms
8.654g
Mechanical Compliance Cms
73.792 mm/N
BL Factor BL
4.769
Voice Coil Inductance Le
4.22mH
Cone Area Sd
145.26 Cm2
DC Resistance Re
3.2 ohms
Mechanical Mass w/o air Mmd
6.70g

DRIVER SPECIFICATIONS

Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Titanium
Magnet Material
Neodymium
Horn Diameter
3" / 76.2mm

SPEAKER MEASUREMENT

Overall Diameter
6.85" / 174mm
Overall Depth
4.28" / 108.8mm
Front Mount Baffle Cutout
5.91" / 150mm
Mounting Depth
3.92" / 99.5mm
Motor Diameter
4.65" / 118mm
