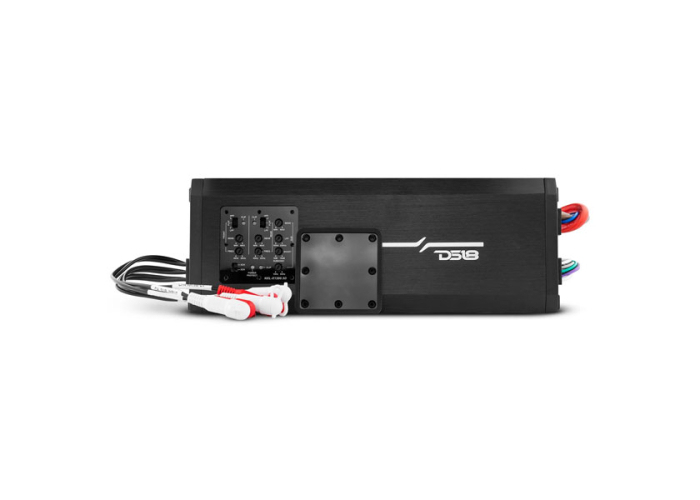

DS18 NXL-X1200.5D 5 Channel Class D Marine Amplifier
DS18 NXL-X1200.5D 5 Channel Class D Marine Amplifier
(DS18 NXLX12005D)
We Think You Should Know
- Australian DS18 Warranty
- Purchase Guarantee (see T&Cs)
- 5-Channel Class D Amplifier
- 2800W Peak Power
- IP67 Water-resistant Rating
- Built-In Crossover - Class D
Overview
DS18’s NXL-X1200.5D delivers exceptional performance in a compact, waterproof package, making it the ideal choice for outdoor enthusiasts who demand superior sound quality while exploring trails or enjoying water activities.
This full-range amplifier is versatile, compatible with subwoofers, mid-ranges, and tweeters, providing crystal clarity at any volume level. Fine-tune your speaker choice with the high pass and low pass filters, offering an unparalleled audio experience tailored to your preferences.
Featuring stable and reliable 4-layer PCB layouts, an IP67 waterproof rating for power sports, and an ultra-compact size for easy installation, the NXL-X1200.5D ensures optimal performance in any environment. However, it's essential to note that these amplifiers are not suitable for submersible use, as it will void the warranty.
Highlighted features of the DS18 HYDRO NXL-X1200.5D include a marine-grade fuse and fuse holder for ultimate protection against the elements, a 2-channel or 4-channel input selector, and a direct power harness design with marine-grade OFC tinned wires.
The latest digital amplifier design with SMC technology ensures high-quality sound reproduction and efficient power usage. DS18’s NXL-X1200.5D is perfect for marine applications, off-road adventures, and DIY projects, offering a compact and powerful solution for those who prioritize exceptional audio quality in their outdoor pursuits.
DS18 - The Brand
DS18 manufactures high-quality car audio products, including speakers, amplifiers, subwoofers, and more. The company was founded in 2009 and has since grown to become a leading brand in the car audio industry, known for its innovative designs and commitment to quality.
GENERAL SPECIFICATIONS
SKU
NXL-X1200.5D
Total Watts (Peak)
2800W
RMS Power @ 4 ohm
4 x 150W + 350W (SUB)
RMS Power @ 2 ohm
4 x 200W + 600W (SUB)
RMS Power @ 4 ohm Bridge
2 x 400W
AUDIO
Frequency Response
10Hz-250Hz
Signal to Noise Ratio 1W @ 4Ω
> 85dB
Efficiency @ 4 ohm
85%
Input Impedance
20K OHM
Channel Separation
60dB
Total Harmonic Distortion (THD)
< 0.05%
Low Level Input Range
200mV-5V
Selectable X-Over
(HPF/Full/LPF) / LPF Fixed (SUB)
X-Over Filter Range
40Hz-2KHz / 50Hz-250Hz (SUB)
Bass Boost Range
0-18dB (SUB)
Bass Boost Frequency
42Hz (SUB)
Infrasonic Filter
10Hz-55Hz (SUB)
MEASUREMENT
Overall Length
12.67" / 322mm
Overall Wide
4.4" / 112mm
Overall Height
1.77" / 45mm
Heatsink Length
11.87" / 301.7mm
Gross Single Unit Weight
2.4kg
