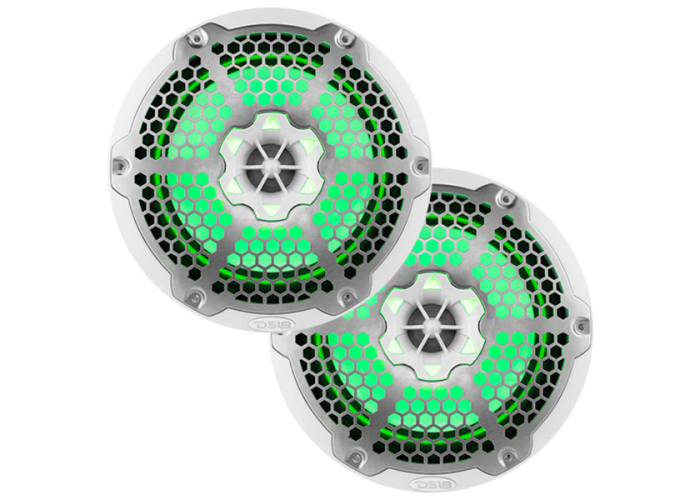

DS18 NXL-8M 8" 375W 2-Way RGB Marine Speakers - White
DS18 NXL-8M 8" 375W 2-Way RGB Marine Speakers - White
(DS18 NXL-8M/WH)
We Think You Should Know
- Australian DS18 Warranty
- Purchase Guarantee (see T&C's)
- 8" 2-Way Marine Speakers in White
- 375W Max Power
- 125W RMS Power
- 4 Ohms Impedance
- Integrated RGB LED Lights
- IP65 Waterproof Rated
IMPORTANT NOTE:
- Requires DS18 LED-BTC RGB LED Control (sold separately) to set and adjust the RGB lights
Overview
DS18’s HYDRO NXL-8M stands out with its integrated tweeter and mid-range woofer, delivering a frequency range from 35Hz to 23KHz with exceptional clarity. With the capability to handle 125W of RMS Power and 375W MAX, these speakers promise a loud and impressive performance in any open-air environment. Available in both white and black, they seamlessly blend with any vehicle's accents, offering a polished and stylish look.
The rugged yet sleek design of DS18’s NXL-8M ensures trouble-free performance and exceptional sound quality. Engineered to withstand all elements, these speakers are built for durability and reliability. With a waterproof (IP65) rating and resistance to extreme conditions, they are the perfect addition to your marine adventures and motorsports.
Prioritizing your protection, the exclusive mesh grill design provides optimal safeguarding for the speaker components without compromising sound quality. You can confidently rely on the DS18 HYDRO NXL-8M to endure the harshest conditions and keep the music playing.
These 8-inch speakers also feature integrated RGB LED Lighting, enabling you to customize the ambiance of your audio system. Illuminate your nights with vibrant colors that match your mood or surroundings using DS18’s LED-BTC or any other RF/BT/Wifi Controller (sold separately), adding a personalized touch to your audio experience.
DS18 - The Brand
DS18 manufactures high-quality car audio products, including speakers, amplifiers, subwoofers, and more. The company was founded in 2009 and has since grown to become a leading brand in the car audio industry, known for its innovative designs and commitment to quality.
SPECS
SKU
NXL-8M/WH
Nominal Diameter
8" / 203mm
Nominal Impedance
4 Ohm
RMS Power Handling
125W
MAX Power Handling
375W
Sensitivity (1w/1m)
93dB
Frequency Response
35Hz-23KHz
Recommended HI Pass Crossover
50 Hz
BODY / FEATURES
UV Compliant
Yes, 100% Stable
Marine Grade Type
IP65
RGB LED
Yes, RGB integrated
Grill Type
Injection Molded Composite ASA with 316 Stainless Steel mesh
Pair
Yes
Color / Finish
Glossy White
WOOFER SPECIFICATIONS
Voice Coil Diameter
1.2" / 30.5mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Injection Molded Polypropylene + UV Compliant
Surround Material
Butyl (Rubber)
Basket Material
High Temp Injection Molded Composite ASA with UV Protection coating
Magnet Material
Ferrite+Neodymium
Magnet Weight
24oz + 0.32oz
TWEETER SPECIFICATIONS
Nominal Diameter
1" / 25.4mm
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Titanium + PEI Surround
Magnet Material
Neodymium (N38H)
Magnet Weight
0.54oz
THIELE & SMALL PARAMETERS
Equivalent Volume Vas
66.7L / 2.35ft3
Excursion (one way) Xmax
8.5 mm
Free Air Resonance Fs
56Hz
Mechanical Factor Qms
7.701
Electrical Factor Qes
0.899
Total Factor Qts
0.805
Moving Mass Mms
7.265g
Compliance Cms
1.119mm/N
Bl Factor Bl
2.98
Voice Coil Inductance Le
0.49mH
Cone Area Sd
206.12cm2
DC Resistance Re
3.15ohms
Efficiency Bandwidth Product EBP
62.2
SPEAKER MEASUREMENT
Overall Diameter
8.59" / 218.2mm
Overall Depth
4.45" / 113mm
Front Mount Baffle Cutout
6.97" / 177mm
Mounting Depth
3.09" / 78.5mm
Motor Diameter
4.32" / 110mm
Gross Single Unit Weight (lb)
10.5
Single Unit Box Dimensions W x L x H (Inches)
20 x 10.5 x 5.5
- 1 pair of DS18 NXL-8M 8" 375W 2-Way RGB Marine Speakers - White
