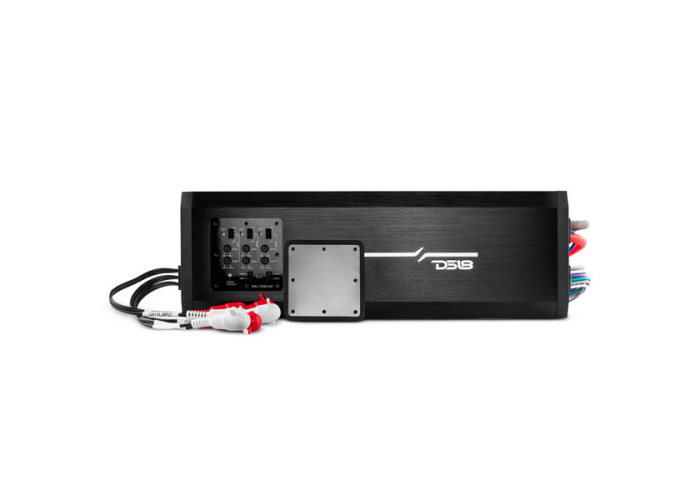

DS18 NXL 6-Channel Class D 3000W Marine Amplifier
DS18 NXL 6-Channel Class D 3000W Marine Amplifier
(DS18 NXL9006D)
We Think You Should Know
- Australian DS18 Warranty
- Purchase Guarantee (see T&Cs)
- 6-Channel Class D Marine Amplifier
- IP67 Water-resistant Rating
- 6 x 250W Peak Power
- 6 x 150W RMS Power
- LED Indicator
Overview
DS18’s NXL-X900.6D offers a compact yet powerful solution tailored for marine enthusiasts aiming to elevate their sound experience to new heights.
This amplifier goes beyond just power, emphasizing efficiency and durability. Its robust construction ensures resilience against harsh conditions, making it the preferred choice for those seeking a waterproof amplifier capable of handling any challenge.
With its 6-channel configuration, the NXL-X900.6D is ideal for powering complex active setups, enabling you to create an immersive audio environment that impresses even the most discerning ears.
Tuning your speaker choice is a breeze with the high pass and low pass filters included in the NXL-X900.6D. Achieve crystal-clear clarity at any volume level, from soft background tunes to blasting beats that make your heart race.
DS18 takes pride in the quality of their products, and the NXL series is no exception. Featuring stable and reliable 4-layer PCB layouts and undergoing audio precision quality control verification, you can trust that this amplifier delivers superior performance consistently.
With an IP67 waterproof rating and protection against UV, salt, and fog, this amplifier is ready to take on any adventure. Equipped with a marine-grade fuse and fuse holder, it provides ultimate protection against the elements. Its direct power harness design with marine-grade OFC tinned wires ensures optimal performance even in challenging conditions.
Experience the latest digital amplifier design with SMC technology, delivering a maximum output of 500W x 3CH at 1-Ohms, 150W x 6CH at 4-Ohms, and 250W x 6CH at 2-Ohms. The NXL-X900.6D stands as the perfect companion for your marine or DIY audio projects, combining cutting-edge technology with durability and performance.
DS18 - The Brand
DS18 manufactures high-quality car audio products, including speakers, amplifiers, subwoofers, and more. The company was founded in 2009 and has since grown to become a leading brand in the car audio industry, known for its innovative designs and commitment to quality.
SKU
NXL-X900.6D
Total Watts (Peak)
3000W
RMS Power @ 4 ohm
6 x 150W
RMS Power @ 2 ohm
6 x 250W
RMS Power @ 4 ohm Bridge
3 x 500W
AUDIO
Frequency Response
10Hz-250Hz
Signal to Noise Ratio 1W @ 4Ω
> 84dB
Efficiency @ 4 ohm
87%
Input Impedance
20K OHM
Channel Separation
60dB
Total Harmonic Distortion (THD)
< 0.03%
Low Level Input Range
200mV-5V
Selectable X-Over
(HPF/Full/LPF)
X-Over Filter Range
40Hz-2KHz
- DS18 NXL 6-Channel Class D 3000W Marine Amplifier
Peace of Mind Purchase Guarantee
This product is supplied via DS18 Australia and enjoys the FULL benefits of the 'Genuine DS18 Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department or you can speak with DS18 Australia directly.
We are a FULLY AUTHORISED Australian retailer for DS18 Australia.
Disclaimer
Due to differing operating costs associated with selling products via different marketplaces, our pricing may vary.
