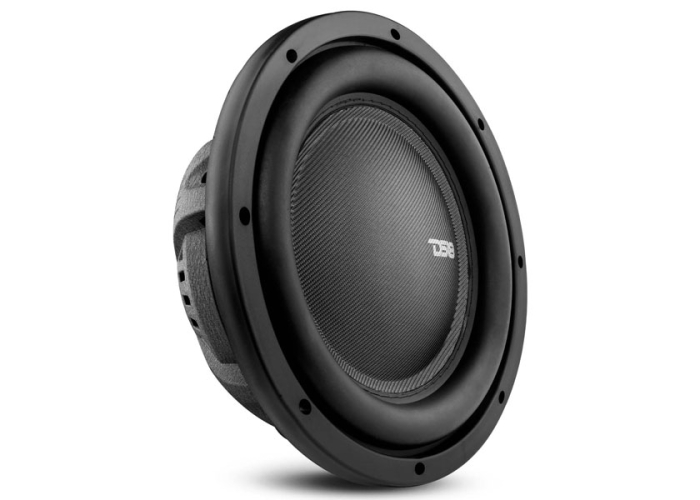

DS18 IXS 12.4D 12" Fibre Glass 1600W Subwoofer

DS18 IXS 12.4D 12" Fibre Glass 1600W Subwoofer DVC
(DS18 IXS12.4D)

We Think You Should Know

• Australian DS18 Warranty
• Purchase Guarantee (see T&C's)
• Designed in the U.S.A
• 1600W Peak / 800W RMS Power
• 12" Subwoofer
• 4 + 4 Ohms Impedance
• 2.5" Voice Coil
• Paper Cone
• Ferrite Magnet
• Shallow-Mount

Overview

12” Car Subwoofer 1600W 4-Ohm DVC Shallow Mount

Engineered with uncompromising precision and cutting-edge technology, the IXS12.4D is specifically designed to revolutionize your car audio experience. Drawing upon the immense success of our renowned SW slim subwoofer line, the IXS series builds upon that legacy by offering even more power and depth. This subwoofer comes with multiple voice coil options, allowing you to extract the maximum potential from your amplifier.

With impressive power handling capabilities rated at 800W RMS and 1600W MAX, the IXS12.4D delivers thunderous bass and dynamic performance. The IXS12.4D covers an extensive frequency range (20 – 600Hz), capturing both the subtle nuances and the powerful impact of low-frequency sounds. It effortlessly reproduces low-frequency sounds with remarkable clarity and accuracy, ensuring that every beat is felt and heard with precision. The high sensitivity rating of 85.1dB of the IXS12.4D means that it efficiently converts power into sound, requiring less power to produce impressive volume levels.

With its large surround and flexible spider packs, the 2.5-inch CCA voice coil(s) achieve a maximum Xmax, resulting in a rich, deep bass that fills the air with unparalleled intensity. The dual voice coil configuration on the IXS12.4D offers increased wiring options, greater amplifier compatibility, higher power handling, improved sound quality, flexibility in subwoofer configuration, and enhanced bass output. Even with its shallow mount size, this subwoofer fits snugly in compact spaces, requiring less box space than other subs of its size. The versatility it offers is unmatched, providing you with endless placement options. The 4-ohm impedance of the IXS12.4D allows for seamless integration with a wide range of car audio systems. Ensuring efficient power transfer from your amplifier, maximizing the IXS12.4D’s performance and bass response.

Get ready to feel the bass like never before with the DS18 IXS12.4D—where power meets precision, and excellence becomes the new standard.

DS18 Car Audio - The Company

DS18 is a leading electronics manufacturer specializing in Mobile, Marine & Home Electronic equipment with its headquarters in Miami, FL, USA. DS18 was created and developed by a team of young and determined professionals who understand the needs in today’s audio industry. Offering several series of amplifiers, speakers, subwoofers, tweeters, midranges, cables, accessories, component sets and much more DS18 guarantees to satisfy customers seeking a wide assortment of products.

SPECS

SKU
IXS12.4D
Nominal Diameter
12" / 304.8mm
Nominal Impedance
4+4 ohms
RMS Power Handling
800W
Maximum Power Handling
1600W
Sensitivity (1w/1m)
85 dB
Frequency Response
20 - 600 Hz
Recommended Lo Pass Crossover
80 Hz

MOTOR

Voice Coil Diameter
2.5" / 63.5mm
Voice Coil Former Material
Aluminum
Winding Material
Copper
Cone Material
Paper
Dust Cap Material
Fibreglass
Surround Material
Stitched rubber
Basket Material
Aluminium
Basket Colour/Finish
Corrugated Black
Magnet Material
Ferrite
Magnet Weight
62 Oz
Displacement Volume
0.93L / 0.033ft3

THIELE & SMALL PARAMETERS

Equivalent Volume Vas
37.3L / 1.31ft3
Excursion (one way) Xmax
10.3 mm
Free Air Resonance Fs
33 Hz
Mechanical Factor Qms
4.034
Electrical Factor Qes
0.861
Total Factor Qts
0.71
Moving Mass Mms
184 g
Compliance Cms
104 mm/N
Bl Factor BI
18.75
Voice Coil Inductance Le
7.07 mH
Diaphragm Area Sd
494.81 cm2
DC Resistance Re
3.6+3.6 ohms
Efficiency Bandwidth Product EBP
40.6

RECOMMENDED ENCLOSURES

Sealed Internal Volume (minimum)
28L / 1ft3
Sealed Box Output Response F3
40Hz

MEASUREMENT

Overall Diameter
12.6" / 320 mm
Overall Depth
5" / 129 mm
Front Mount Baffle Cutout
10.79" / 274 mm
Mounting Depth
4.33" / 110 mm
Motor Diameter
6.3" / 160 mm
Gross Single Unit Weight (lb)
16.5

• 1 x DS18 IXS 12.4D 12" 1600W Subwoofer DVC
