DS18 GEN-X 6.5" 150W 2-Way Component Speakers

DS18 GEN-X 6.5" 150W 2-Way Component Speakers
(DS18 G6.5XC)

We Think You Should Know

• Australian DS18 Warranty
• Purchase Guarantee (see T&Cs)
• 6.5" 2-Way Component - 4Ω
• 150W Peak / 50W RMS Power
• Ferrite & Neodymium Magnets
• Paper Cone
• Silk Dome Tweeters
• Sensitivity: 86dB
• Freq Resp: 35Hz-20KHz
• Includes Crossovers & Grilles

Overview

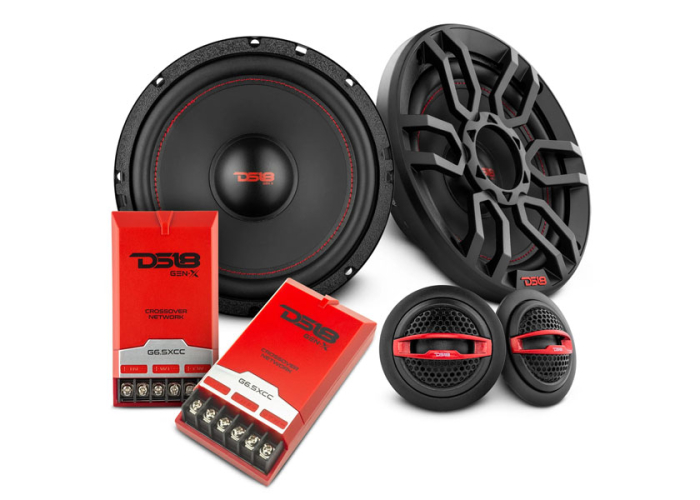

2-Way Component Set Speaker System 150 Watts 4-Ohm

Get ready to experience power, clarity, and range like never before! The legendary GEN-X Coaxial Series is back and stronger than ever with the G6.5XC 2-Way Component Set, delivering an upgraded level of performance that will blow your mind. This set includes a powerful 6.5-inch woofer and a high-quality silk dome tweeter, as well as a 2-way passive crossover to ensure clear and crisp sound.

The 6.5-inch woofer delivers power, precision, and punch to your music. The paper cone provides a natural, warm sound, while the rubber surround allows for a tight, controlled bass response. This woofer is an essential component for any audiophile who demands uncompromising sound quality.

The silk dome tweeter has a 1-inch voice coil diameter and neodymium magnet material, which help it produce clear and detailed high frequencies. The 2-way passive crossover has a frequency crossover point of 3.5KHz and a 12dB/Oct cut-off slope, ensuring that the woofer and tweeter work together seamlessly.

The GEN-X series was made for amplifiers, but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers. This powerful and durable set will bring your music to life with a wide range of frequencies and clear sound. Don’t settle – get the G6.5XC Component Set and experience music like never before.

DS18 Car Audio - The Company

DS18 is a leading electronics manufacturer specializing in Mobile, Marine and Home Electronic equipment, headquartered in Miami, FL, USA. DS18 was created and developed by a team of young and determined professionals who understand the needs of today’s audio industry—offering several series of amplifiers, speakers, subwoofers, tweeters, midranges, cables, accessories, component sets and much more DS18 guarantees to satisfy customers seeking a wide assortment of products.

GENERAL SPECIFICATIONS

SKU
G6.5XC
Nominal Diameter
6.5" / 165mm
Nominal Impedance
4 Ohms
RMS Power Handling
325Watts
MAX Power Handling
150Watts
Sensitivity (1w/1m)
86dB
Frequency Response
35Hz-20KHz
Recommended Hi Pass Crossover
60HZ
Number of Ways
2
Pair or Single
Pair
Grill Included
Yes

MOTOR

Voice Coil Diameter
1" / 25.5mm
Voice Coil Former Material
ASV
Winding Material
EISV
Cone Material
Paper
Surround Material
Rubber
Basket Material
Steel
Basket Colour
Black Matte
Magnet Material
Barium Ferrite
Magnet Weight
9.87oz / 280g

TWEETER

Voice Coil Diameter
1" / 25.5mm
VC Former Material
ASV
Winding Material
EISVM
Diaphragm Material
Silk
Magnet Material
Neodymium
Magnet Weight
8.7g

THIELE & SMALL PARAMETERS

Vas
9.47L / 0.33ft3
Xmax
2.7mm
Fs
72Hz
Qms
4.5
Qes
1.47
Qts
1.1
Mms
13.8g
Cms
345mm/N
BL
4
Le
172uH
Sd
136.8cm2
Re
3.7 Ohms
Mmd
12g

CROSSOVER SPECIFICATIONS

Passive Crossover Ways
2 (Woofer / Tweeter)
Frequency Crossover Point
3.5KHz
Power Handling
400W
Cut-Off Slope
12dB/Oct
Capacitor Type
Metal Film
Coil Type
Inductor
Terminal Type
Screw
Housing Material
ABS
