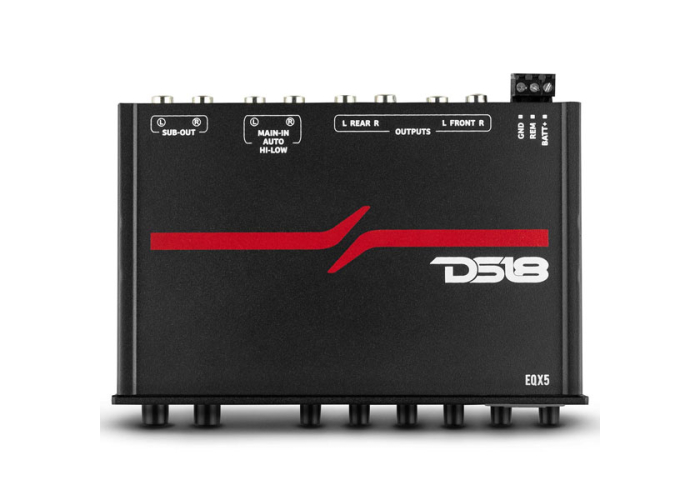

DS18 EQX5 5-Band Equalizer w High Level Input

DS18 EQX5 High Volt 5-Band Equalizer with High-Level Input
(DS18 EQX5)

We Think You Should Know

• Australian DS18 Warranty
• Purchase Guarantee (see T&Cs)
• 1/2 DIN 5 Band Graphic Equalizer
• MAX Output: 8 Volts
• Subwoofer Level Control
• Fader Control L/R
• 3 Stereo RCA Output
• High Level & Aux Inputs
• Nickel-plated RCA Connectors
• Master Volume Control

Overview

8 Volt 5-Band Equalizer with High-Level Input

The DS18 EQX5 allows you to take complete control of your audio system, pushing it past its limits with unparalleled precision and clarity. This high-strength 5-band stereo equalizer/crossover is the upgrade needed to achieve your audio dreams.

Harnessing the power of its five bands, including frequencies of 50Hz, 315Hz, 800Hz, 2.2KHz, and 12KHz, the EQX5 ensures the most precise audio reproduction. With adjustable frequencies ranging from -12 to +12dB (-15 to +15dB for subwoofer frequencies), you have the power to fine-tune your sound to perfection.

The EQX5 offers three stereo RCA outputs, dedicated to driving your front, rear, and subwoofer audio amplifiers. Take control of your audio experience with separate controls for master volume, subwoofer volume (sub-level), front/rear fade, and the choice between main or auxiliary inputs. The integrated speaker Hi-Level Converter ensures low-level RCA output for seamless integration with your existing system.

DS18 understands the importance of delivering audio with unmatched precision. That's why the EQX5 offers an extended frequency response from 20Hz to 30KHz, boasting exceptional 100 dB signal-to-noise performance. The nickel-plated RCA connectors guarantee the best audio signal output, ensuring that every note resonates with utmost clarity.

The EQX5 can be mounted next to your source unit or discreetly underneath your dash, thanks to the included mounting brackets. This ensures easy access to the front panel controls right from the driver's seat, giving you full command of your audio system at your fingertips. It's time to shape your sound exactly how you envision it.

DS18 - The Brand

DS18 manufactures high-quality car audio products, including speakers, amplifiers, subwoofers, and more. The company was founded in 2009 and has since grown to become a leading brand in the car audio industry, known for its innovative designs and commitment to quality.

SPECS

SKU
EQX5
Type of Equalizer
Graphic
Number of bands
5
Frequency Point HZ
50, 315, 800, 2.2k, 12k
Boost/Cut
12dB (15dB Subwoofer Frequency)

CROSSOVER SECTION

Passive Crossover Ways / Type
1 (LPF) (Subwoofer Ch)
Frequency Crossover point
120Hz (fixed)
Cut-Off Slope
12dB/Oct

AUDIO SPECIFICATIONS

S/N Ratio
100dB
THD
0.005%
Input Sensitivity
50mV-3V
Input Impedance
20Kohm
Output Voltage
8V
Output Impedance
2Kohm
Head Room
20dB
Stereo Separation
82dB @ 1Khz
Frequency Response
10Hz-30Khz

GENERAL FEATURES

Operating Voltage
11-15V
Subwoofer Output
Yes (8V)
Audio Controls
Subwoofer Level, Master Volume, Fader
Audio Inputs
Main (RCA), Auxiliar (3.5mm jack)
RCA Type
Nickel-Plated
Housing Material
Metal / Aluminum
Adjustments
No
Extra Features
Blue Backlit
Hi-Level Speaker Input
Yes
Auto Turn-on
No
Remote Turn-on Input/Output
Yes Input
Colour / Finish
Satin Black

MEASUREMENTS

Overall Length
7" / 178mm
Overall Depth
4.4" / 112mm
Overall Height
1.18" / 30mm

• DS18 EQX5 High Volt 5-Band Equalizer
