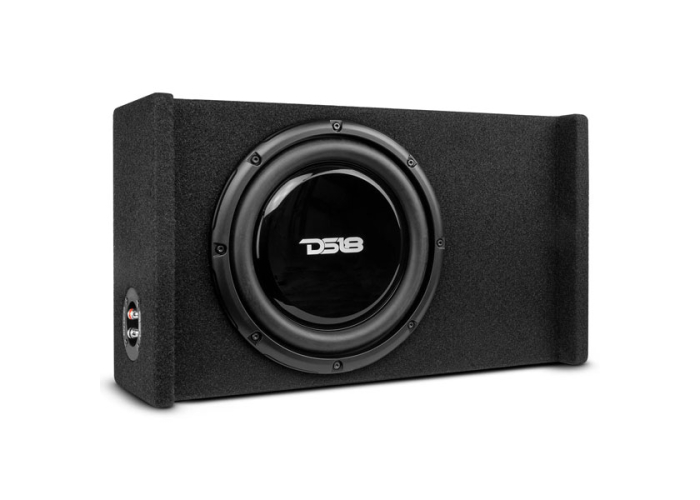

DS18 EN-DF10 600W 10'' Subwoofer w Enclosure

DS18 EN-DF10 600W 10'' Shallow Down Firing Subwoofer w Enclosure
(DS18 EN-DF10)

We Think You Should Know

• Australian DS18 Warranty
• Purchase Guarantee (see T&C's)
• 600W Peak / 300W RMS Power
• Subwoofer Enclosure
• Preloaded with 10'' Subwoofer
• Impedance: 4 Ohm
• Freq Resp: 25 - 250 Hz
• Sensitivity (1w/1m): 86dB
• Shallow Down Firing Sub

Overview

10” Shallow Down Firing Subwoofer Enclosure 600W

Introducing DS18’s EN-DF10, the ultimate solution for car audio enthusiasts who crave exceptional bass without compromising on space. Crafted with precision, DS18’s EN-DF10 is ingeniously designed to deliver mind-blowing bass in vehicles where space is a luxury. Engineered to perfection, this enclosure combines the raw power of a shallow 10-inch subwoofer with a compact, down-firing design, measuring a mere 20" x 11" x 6".

The EN-DF10 requires an external amplifier to feed its hunger for power, demanding 300W RMS and reaching an astounding peak of 600W at 4 ohms, ensuring compatibility with a wide range of car audio systems. With a sensitivity of 86dB and a frequency response spanning from 25Hz to 250Hz, every subtle nuance and thumping bassline will be faithfully reproduced. The recommended low-pass crossover at 80Hz guarantees seamless integration with your existing speakers, resulting in a harmonious audio landscape.

But there's more to the DS18 EN-DF10 than just incredible sound. With its very strong (MDF) box, this enclosure further enhances the audio quality, allowing for better sound dispersion and minimizing resonances. While it does not feature a built-in high-efficiency digital amplifier or an auto turn-on function when using Hi-Level Input, its simplicity ensures ease of installation and compatibility with a variety of audio setups. Prepare to be the envy of enthusiasts everywhere with DS18’s EN-DF10.

DS18 - The Brand

DS18 manufactures high-quality car audio products, including speakers, amplifiers, subwoofers, and more. The company was founded in 2009 and has since grown to become a leading brand in the car audio industry, known for its innovative designs and commitment to quality.

SPECS

SKU
EN-DF10
Speaker Type / Size
10" Passive Subwoofer
Total Impedance
4 Ohm
Total RMS Power Handling
300W
Total MAX Power Handling
600W
Sensitivity (1w/1m)
86dB
Frequency Response
25-250Hz
Recommended Lo Pass Crossover
80Hz

SPEAKER SPECIFICATIONS

Voice Coil Diameter
1.52" / 38.6mm
Voice Coil Former Material
Aluminum
Winding Material
Cooper
Cone Material
Injection PP Cone
Surround Material
Rubber
Basket Material
Steel
Magnet Material
Ferrite
Magnet Weight
40 Oz

BOX SPECIFICATIONS

Internal Volume
12L / 0.42ft3
Load Configuration
Single 4 Ohm
Box Type
10" Down-Firing Sealed
Box Material
MDF (5/8" / 15mm)
Finish Material
Black Carpet
-3Db Dropping Point F3
39Hz

MEASUREMENT

Overall Height
11.6" / 295mm
Overall Width
20.27" / 515mm
Overall Depth
6.3" / 160mm
Gross Single Unit Weight
8.0KG
Single Unit Box Dimensions W x L x H
556mm x 206mm x 314mm
