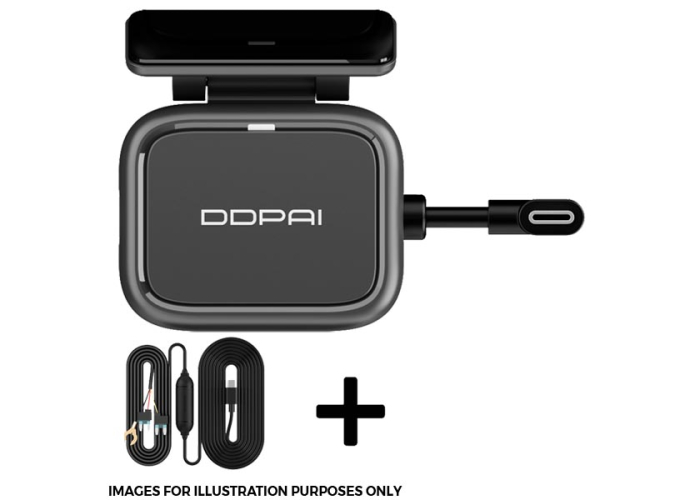

DDPAI DC001 Radar Module for Dash Cameras – Enhanced Parking Monitoring
DDPAI DC001 Radar Module for Dash Cameras – Enhanced Parking Monitoring
(DDPAI DC001)
- Australian DDPAI Warranty
- Purchase Guarantee (see T&C's)
- Radar-Based Movement Detection
- Pre-Impact Parking Protection
- Automatic Camera Wake Up
- AI-Assisted Object Recognition
Overview
DDPAI DC001 Radar Module for Dash Cameras – Enhanced Parking Monitoring
The DDPAI DC001 Radar Module enhances the parking-surveillance capabilities of compatible DDPAI dash cameras by detecting movement around a parked vehicle. When an eligible person, vehicle, bicycle or animal enters the detection area, the radar wakes the connected dash camera from its low-power sleep state to record the activity. This approach reduces energy consumption compared with continuous recording while allowing the camera to respond before physical contact occurs. Adjustable sensitivity settings help accommodate different parking environments, from busy streets and shopping centres to quieter residential locations. The module requires a compatible DDPAI camera and appropriate permanent-power installation; it does not operate as a standalone recording device.
Key Features
- Radar-Based Movement Detection: Detects supported moving objects around the parked vehicle rather than relying solely on physical impact detection.
- Pre-Impact Parking Protection: Can wake the connected dash camera when movement is detected, allowing activity to be recorded before a collision or attempted interference occurs.
- Automatic Camera Wake-Up: Activates the compatible dash camera from low-power sleep mode and initiates an event recording.
- AI-Assisted Object Recognition: Works with supported DDPAI cameras to identify people, motor vehicles, non-motor vehicles and animals within the detection area.
- Five Sensitivity Levels: High, medium-high, medium, medium-low and low settings allow detection behaviour to be adjusted for the parking location.
- Energy-Efficient Monitoring: Allows the dash camera to remain in sleep mode until movement is detected, reducing power consumption during extended parking periods.
- Extended Event Recording: A detected object triggers an initial event clip, with compatible cameras able to continue recording while movement remains present.
- DDPAI App Configuration: Radar sensitivity and supported parking settings can be managed through the DDPAI app after installation.
- Compact Windscreen Installation: Mounts near the dash camera while remaining separate from the main recording unit.
Ideal For
- Vehicles regularly parked in public areas
- Overnight and extended parking surveillance
- Compatible DDPAI N5-series dash cameras
- Drivers wanting detection before physical impact
- Energy-conscious hardwired parking installations
The DDPAI DC001 Radar Module adds intelligent movement detection to supported DDPAI parking-surveillance systems. By waking the camera only when it detects relevant activity, it provides broader monitoring while helping limit unnecessary power consumption and recordings. A compatible DDPAI dash camera and the specified intelligent hardwire or OBD power kit are required. Confirm compatibility with the exact camera model before installation, and nearby metal components may affect radar performance.
| Specifications | Details |
|---|---|
| Model Number | OBDHK |
| Connector Type | USB Type-C |
| Cable Type | USB |
| Product Dimensions | 3.94 x 1.97 x 0.5 inches |
| Item Weight | 3.87 ounces |
| Input Voltage Range | 12V to 24V |
| Output Voltage | 5V |
| Maximum Current | 2 Amps |
| Low-Voltage Protection Threshold | 11.8V (±0.2V) |
| Power Cut-Off Delay | 60 seconds |
| Special Feature | 24-Hour Parking Motion Surveillance |
- 1 x DDPAI OBD Type-C Hardwire Charging Cable
