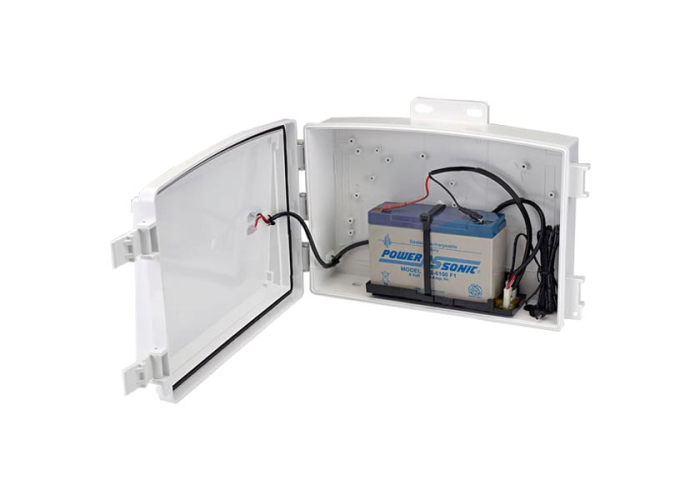

Davis Weather 6612 Heavy Duty Solar Power Kit

Davis Weather 6612 Heavy Duty Solar Power Kit
(Davis Weather 6612)

We Think You Should Know

• Australian Davis Warranty
• Purchase Guarantee (see T&C's)
• 12 amp-hour battery provides enough power for a cable console and outdoor sensor suite
• Envoy8x or wireless consoles
• Weather-resistant shelter

Overview

Install your Vantage Vue or Vantage Pro2 console, Weather Envoy or Envoy8X outside with solar power and shelter.

Features

Sometimes you just need more power

No AC power where your cabled Vantage Pro2 is installed? Want to install an Envoy8X in a remote field installation?  Or perhaps you want to install your wireless Vantage Pro2 or Vantage Vue console in a remote installation that gets little sunlight.

Our large solar panel and a 12-amp-hour battery provide enough power for a cabled console and outdoor sensor suite, an Envoy8X or wireless consoles where more power is needed.

Add on a Universal Shelter

There is enough room inside the weather-resistant shelter to mount an Envoy8X or Weather Envoy.

If you need extra power for a  Vantage Vue or Vantage Pro2 console, add a Universal Shelter. Mount the console inside the Universal Shelter and power it with the Heavy Duty Solar Power Kit.

Davis Instruments

Davis Instruments, a privately held manufacturing company and developer of exceptional instruments for weather, marine, and automotive use, prides itself on innovative, high-quality products and services at reasonable prices. They are located in Hayward, California and have consistently continued growing for over 50 years. Davis Weather Instruments offer professional wireless or cabled weather stations for official weather reporting for in-home use, educational use and more! Davis Weather stations are top quality and well thought out, with practically every feature the home weather enthusiast would need. Check out the range of Davis products that we stock!

General
Charging Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . -4° to +122°F; -20° to +50°C
Operating Temperature . . . . . . . . . . . . . . . . . . . . . . . . . -40° to +149°F; -40° to +65°C
Housing Material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Rugged ASA plastic
Dimensions (width x length x height) . . . . . . . . . . . . . . . . 13.75 X 10 X 4.18 inches; 34.9 X 25.4 X 10.6 cm
Weight
6612. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.65 lbs; 3.47 kg
Solar Panel (@ 1000w/m2)
Nominal power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 watt
Voc. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21.6V
Isc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300mA
Vmp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18V
Imp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277mA
Included Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10’ (3 m) console/Envoy main power cable

Battery
Replacement Part Number . . . . . . . . . . . . . . . . . . . . . 7011.025
Battery Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 volts
Battery Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Ah
Estimated Battery Run Time (in darkness)
Powering a wireless Vantage Pro2 console . . . . . . over 200 days
Powering a cabled Vantage Pro2 console. . . . . . . . 100 days
Powering a Vantage Vue console. . . . . . . . . . . . . . Over 200 days
Powering an Envoy8X with 1 ID . . . . . . . . . . . . . . . Over 200 days
Powering an Envoy8X with 4 IDs . . . . . . . . . . . . . . Over 200 days
Powering an Envoy8X with 8 IDs . . . . . . . . . . . . . . 200 days


Charging Circuit

• High-efficiency switching charger
• Maximum-Peak-Power-Tracking (MPPT) at 18V - Typical for 12V solar-panel
• Charges 6V SLA battery @ 2A max
• Charging voltage temperature compensation
• Low-temperature charging cut-out
• High-temperature charging cut out
• Low-battery load disconnect
• Reverse battery protection
• Designed to have multiple batteries and/or solar-panels added in parallel to extend capacities

Package Dimensions
Package Dimension (LxWxH): 14.75" x 11" x 5.25" / 37.47x27.94x13.34cm
Package Weight: 9.35lb / 4.24 kg
