Davis 7678 EnviroMonitor 8dBi Long Range Antenna

Davis 7678 EnviroMonitor 8dBi Long Range Antenna
(Davis 7678)

We Think You Should Know

• Australian Davis Warranty
• Purchase Guarantee (see T&C's)
• 8dBi High-Gain External Antenna
• Up to 3000m Transmission Reach
• For EnviroMonitor Gateway or Nodes

Overview

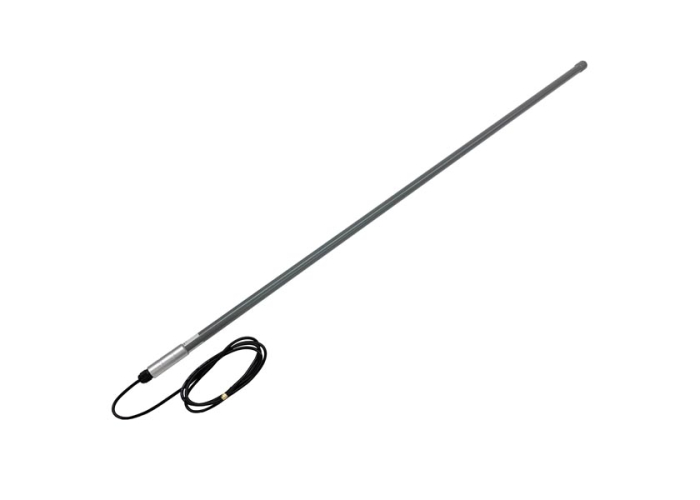

The Davis 7678 is an EnviroMonitor Long Range Antenna with 8dBi gain. Add this high-gain external antenna to your EnviroMonitor Gateway and/or Nodes to increase the transmission distance of an EnviroMonitor mesh network up to 10,000 feet (3,000 m). Antennas can be used for either Node-to-Node or Node-to-Gateway transmission.

Davis Instruments

Davis Instruments, a privately held manufacturing company and developer of exceptional instruments for weather, marine, and automotive use, prides itself on innovative, high-quality products and services at reasonable prices. They are located in Hayward, California and have consistently continued growing for 53 years.

Operating Temperature: -40° to +140°F (-40° to +60°C)

Storage Temperature: -40° to +140°F (-40° to +60°C)

Dimensions (not including cable or mounting bracket)

Diameter : 1.0'' (25 mm)

Length: 49.25" (1250 mm)

Weight: 0.94 lbs. (0.43 kg)

Transmit/Receive Frequency: 902 - 928 MHz

Gain: 8 dBi

Input Impedance: 50 Ohms

Polarization: Vertical

Vertical Beam Width: 60 degrees

Housing Material: Gray Fiberglass

Cable: LMR 240 with RP SMA connector

Connector Cable Length: 60' (1.5 m)
