Clarion XC2110 400W Mono Marine Amplifier – Compact Design

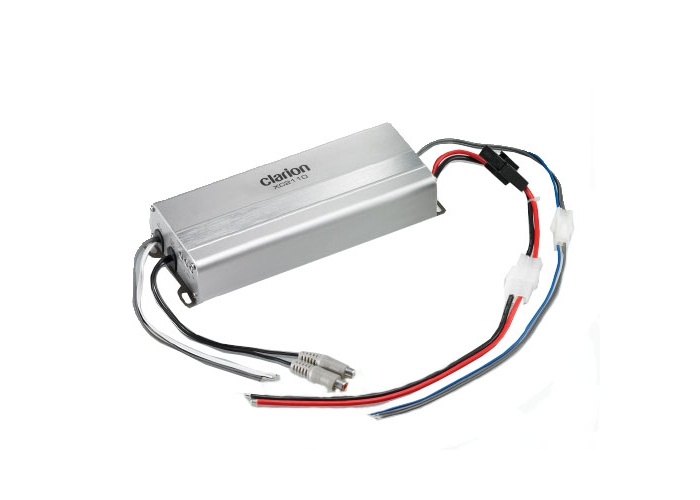

Clarion XC2110 400W 1 CH Micro Marine Amplifier
(Clarion XC2110)
- Australian Clarion Warranty
- Purchase Guarantee (see T&C's)
- 200W RMS (4 Ohms) / 300W RMS (2 Ohms)
- 400W Maximum Mono Class D Output
- Compact Aluminium Heatsink Construction
- Conformal-Coated Circuit Board for Marine Use
- Adjustable Low-Pass Crossover and Bass Boost
- RCA and Speaker-Level Audio Inputs
Overview
Clarion XC2110 400W 1 CH Micro Marine Amplifier
Enhance your onboard bass performance with the Clarion XC2110 Micro Marine Amplifier. This compact mono Class D amplifier delivers 200W RMS at 4 ohms, 300W RMS at 2 ohms and 400W maximum power output. Designed for space-conscious marine audio installations, it combines efficient amplification, adjustable bass controls and corrosion-resistant connections. Its conformal-coated circuit board provides additional protection against demanding marine conditions when correctly installed.
Key Features
- RMS Power Output: 200W at 4 ohms; 300W at 2 ohms.
- Maximum Power: 400W peak mono output.
- Class D Amplification: Efficient power delivery in a compact design.
- 2-Ohm Stable: Supports compatible low-impedance subwoofer loads.
- Low-Pass Crossover: Adjustable 35–250Hz with 12dB/octave slope.
- Bass Boost: Adjustable 0–12dB at 50Hz.
- Flexible Inputs: RCA and speaker-level connections.
- Marine-Resistant Construction: Conformal-coated PCB and nickel-plated terminals.
- Compact Dimensions: Approximately 202 x 82 x 39mm.
Ideal For
- Marine audio systems requiring dedicated subwoofer amplification.
- Recreational boats with limited installation space.
- Upgrading onboard bass performance and control.
- Custom installations using compatible 2-ohm subwoofers.
- Marine systems with RCA or speaker-level outputs.
The Clarion XC2110 combines 200W RMS at 4 ohms, 300W RMS at 2 ohms and 400W maximum power in a compact mono amplifier. Supplied with mounting screws, washers and an installation manual. Requires a 12V negative-ground electrical supply, compatible subwoofer, appropriate wiring and external power-line fusing. Install in a dry, ventilated location protected from water exposure. Professional installation is recommended.
Clarion – the company
Established in 1940, Clarion is a Japanese audio and electronics brand with decades of experience developing automotive and marine entertainment systems. The Clarion Marine range includes source units, speakers, amplifiers and remote controls designed for demanding boating environments. Its marine products emphasise practical connectivity, audio control and resistance to moisture, salt exposure and UV, helping boat owners create dependable onboard entertainment systems.
| Specifications | Details |
|---|---|
| Type | Marine Micro Mono Amplifier |
| Class Type | D |
| Channels | 1 |
| Maximum Power Output | 400W |
| Power Rating @ 4 Ohm | 200W × 1 RMS (≤ 14.4V, 1% THD+N) |
| Power Rating @ 2 Ohm | 300W × 1 RMS (≤ 14.4V, 1% THD+N) |
| S/N Ratio | ≥ 70dB (ref: 1W into 4Ω) |
| MOS-FET Power Supply | Yes |
| 2-Ohm Stable | Yes |
| Selectable Bass Boost | 0-12dB @ 50Hz |
| Low Pass Crossover | 12dB/Oct, variable 35-250Hz |
| Gain Control | Variable |
| Muting Circuitry | Turn-on/off soft mute |
| Ground Loop Isolation | Input circuit |
| Connectors | Corrosion resistant nickel plated RCA, power and speaker |
| Inputs | RCA and high-level speaker inputs |
| PCB | Double side conformal coated |
| Heatsink | Aluminium |
| Dimensions | 199.39mm (W) × 39.12mm (H) × 82.04mm (D) |
| Weight | 1.16kg |
| Brand | Clarion |
- 1 x Clarion XC2110 Marine Mono Amplifier
