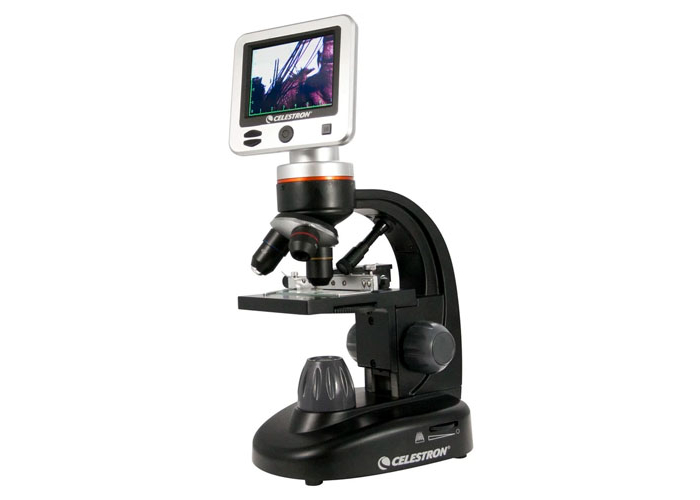

Celestron LCD Digital Microscope II
Celestron LCD Digital Biological Microscope II
(Celestron 44341)
We Think You Should Know
- Australian Celestron Warranty
- Purchase Guarantee (see T&C's)
- Digital Biological Microscope
- 3.5" TFT LCD / 5MP Camera
- 40x-400x Magnification
- 4x Digital Zoom (1600x)
- Rotating Lens: 4, 10, and 40x
- Camera Acts as 10x Eyepiece
Overview
The professional-level Celestron LCD Digital Microscope II is a biological LCD microscope at an affordable price. With fully achromatic lens objectives, a mechanical stage, 3.5" full-colour TFT screen and 5MP CMOS sensor, the LCD Digital Microscope II allow for high-resolution imaging of specimen slides. The microscope even includes a 1GB SD card, and enough storage to capture over 600 high-resolution images for lab reports, papers, lessons, and more.
With rotating objective lens turret (4x, 10x, and 40x), camera sensor acting as 10x eyepiece lens, measuring reticle for comparing specimen sizes, and fully adjustable mechanical stage for easy slide movement.
From 40x magnification up to 1600x with digital zoom, the LCD Digital Microscope II is ideal for viewing a range of cellular specimens on slides, like most traditional microscopes. The LCD screen rotates 180 degrees so you can easily share your discoveries with others. For an even bigger audience, use the TV output to display on a television or projector.
Great for the discriminating professional or serious hobbyist, the LCD Digital Microscope II is ideal for labs, schools and research institutions.
Celestron
Celestron has been an optics industry leader for decades, ever since Tom Johnson unveiled the game-changing C8 multi-use telescope. As the world’s number one telescope maker, Celestron employs nearly 100 people worldwide, including a robust product development team at their headquarters in Torrance, California, and their world-class team of optical and electronic engineers continues to push the boundaries of technology.
| Type of Microscope: | LCD Desktop |
| Head: | 180° rotatable head w/3.5" TFT LCD Screen |
| Nosepiece: | Triple with click stop |
| Objective(s) Type: | (3) Achromatic objectives on turret |
| Objective(s) Standard: | DIN 35 RMS |
| Objective(s) Magnification: | 4x, 10x, 40x |
| Objective(s) Thread: | WJ 4/5" x 1/36" |
| Focus Type(s): | Coarse Focus |
| Focus Travel (per rotation): | 0.7mm to 35.3mm (.027" to 1.39") (est.) |
| Magnification Range: | 40x, 100x, 400x | Up to 1600x with digtial zoom |
| Illumination Type: | LEDs |
| Illumination Position(s): | TBD |
| Illumination Adjustability Mechanism: | Adjustable wheels at base |
| Power Source: | Universal 100 to 240V, 50/60 hz multi-country plug | (4) AA (optional) |
| Battery Options: | Yes (4AA) |
| Stage: | Fully mechanical with metal clips, 88mm x 88mm (3.5" x 3.5") | With Filter wheel | Red, blue, green | 1mm, 3mm, 6mm apertures |
| Condenser Type: | Aplantic |
| Condenser N.A.: | N.A. 65 |
| Stage Diaphragm: | Multiple on wheel |
| Eyepiece Type: | CMOS Sensor in lieu of eyepiece |
| Sensor Size: | 5MP | 1/2.5" |
| Pixel Size: | 2.2 μm |
| Screen type: | High Definition TFT LCD Screen | 480 x 272 pixels | 262K colors | Brightnes 400cd/m2 |
| Screen Size: | 3.5" |
| Memory Type: | SD Card |
| Memory Size: | 1GB SD included | Supports up to 32G |
| Port(s) In: | AC Plug (power) | SD Card slot (32Gmax) |
| Port(s) Out: | Video/ TV out | USB 2.0 |
| AC Adapter: | 5-6V DC, 200-1000mA tip positive electrical input. Jack should be 5.5mm (.21") OD, 2.1mm (.08") ID and 12.5mm (.49") long |
| Still image capture resolution: | 2592 x 1944 | 2112 x 1188 | 1538 x 864 | 640 x 480 |
| Video resolution: | VGA (640 x 480) |
| Shutter trigger position: | On LCD Screen |
| Software: | Internal Firmware built in |
| Microscope Dimensions: | 170mm x 140mm x 330mm (6.7" x 5.5" x 13") |
| Microscope Weight: | 56 oz (1600g) |
- Celestron LCD Digital Microscope II - 44341
- 1GB SD Card
- USB 2.0 Cable
- 5 Prepared Slides
- 4 Plug, Multi-Country AC Adaptor
- Dust Cover
- Carry Case
