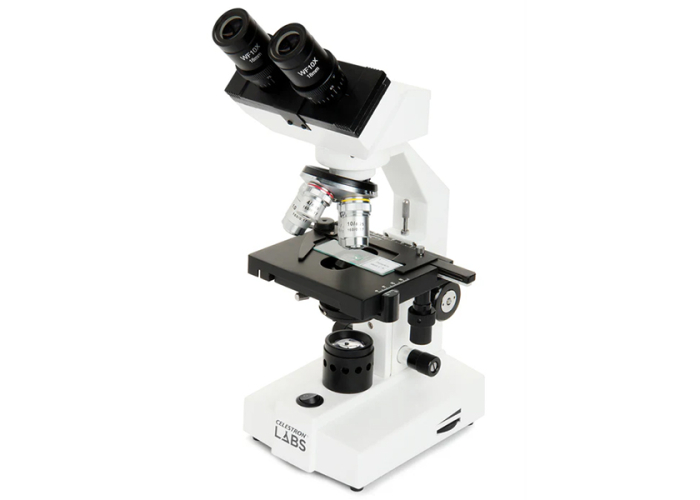

Celestron Labs CB1000CF Compound Microscope
Celestron Labs CB1000CF Compound Microscope
(Celestron 44135)
- Australian Celestron Warranty
- Purchase Guarantee (see T&C's)
- Lab-ready compound binocular microscope with up to 1000x power
- 4 fully achromatic objective lenses - 4x, 10x, 40x, 100x
- Coarse and fine focus knobs
- 10x eyepieces allow you to view specimens at 40x, 100x, 400x, and 1000x magnification
Overview
The Celestron Labs CB1000CF Binocular Compound Microscope offers all the essential features you need in a lab-ready microscope at an economical price. The 10x eyepiece and four objective lenses (4x, 10x, 40x, and 100x) allow for magnifications of 40x, 100x, 400x and 1,000x. An adjustable lower illuminator provides bright, detailed views with true-to-life colors for translucent specimens. This LED illuminator stays cool to the touch even during long viewing periods The Abbe condenser with iris diaphragm adjusts the lower illumination for enhanced viewing. All these features make the CB1000CF an excellent tool for labs, schools, field use and more. Strong and stable thanks to its all-metal construction, this microscope features coaxial coarse and fine focus knobs, guaranteeing fine-detailed viewing of your specimen slides. The microscope also features a fully adjustable, mechanical stage so you can easily center your specimen slides. The 10 included prepared slides guarantee exciting discoveries right out of the box. Rotate your swiveling binocular head to view the specimen comfortably or share the view with someone sitting across the table. Improve the quality of your magnified images with the included 3 colored filters. There’s even a universal power cord for international use.
Key Features:
Lab-ready compound binocular microscope with up to 1000x power:
A high-quality microscope designed for laboratory use, offering detailed magnification up to 1000x for precise specimen analysis.
4 fully achromatic objective lenses - 4x, 10x, 40x, 100x:
Equipped with four premium achromatic lenses that deliver clear, true-to-color images across different magnification levels.
Coarse and fine focus knobs:
Features dual focusing controls for smooth and precise adjustments, ensuring sharp and accurate viewing of microscopic details.
10x eyepieces allow you to view specimens at 40x, 100x, 400x, and 1000x magnification:
Comes with 10x eyepieces that, when combined with objective lenses, provide a range of magnification levels for versatile observation.
Celestron - The Company
Celestron has been an optics industry leader for decades, ever since Tom Johnson unveiled the game-changing C8. We strive to continue his legacy by continually developing exciting products with revolutionary technologies. Here, you can learn all about our patented, one-of-a-kind innovations.
| Specifications | Details |
|---|---|
| Type of Microscope | Compound |
| Head | Binocular with 360° rotatable 45° incline and interpupillary distance adjustability |
| Eyepiece(s) Magnification | (2) 10x (with pointer) |
| Eyepiece(s) Diameter | 23.2mm (.91") |
| Nosepiece | Quadruple, rotational |
| Objective(s) Type | Refractive |
| Objective(s) Standard | DIN |
| Objective(s) Magnification | (4) 4x, 10x, 40x, 100x immersion, all achromatic |
| Objective(s) Thread | 4/5" x 1/36" |
| Focus Type(s) | Rack and pinion, coarse and fine focus (individual dials) |
| Focus Travel (per rotation) | 0.1 mm (.004") |
| Magnification Range | 40x to 1000x (40x, 100x, 400x, 1000x) |
| Illumination Type | LED |
| Illumination Position(s) | Lower |
| Illumination Adjustability Mechanism | Dial |
| Power Source | AC Adapter- 100-240V |
| Battery Option | None |
| Stage | Mechanical stage, 110mm x 120mm (4.3" x 4.7") |
| Condenser Type | Abbe with Iris adjustment |
| Condenser N.A. | 1.25 |
| Stage Diaphragm | N/A |
- Universal AC Adapter- 100-240V; plugs A, C, G, and I
- Power adapter cord
- 3 color filters (blue, white opaque, green)
- Immersion oil (Type B High-viscosity Cedar wood oil)
- Prepared slide: Wall of stomach, sec.
- Prepared slide: Stratified flat epithelium, sec.
- Prepared slide: Testis, sec.
- Prepared slide: Aspergillus, w.m.
- Prepared slide: Rhizopus nigricans, w.m.
- Prepared slide: Small intestine, c.s.
- Prepared slide: Lily anther, c.s.
- Prepared slide: Hydrilla verticallata, w.m.
- Prepared slide: Spirogyra, w.m.
- Prepared slide: Lily ovary, c.s.
Peace of Mind Purchase Guarantee
This product is supplied via Celestron Australia and enjoys the FULL benefits of the 'Genuine Celestron Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department or you can speak with Celestron Australia directly.
We are a FULLY AUTHORISED Australian retailer for Celestron Australia.
