Celestron Calibration Slide

Celestron Calibration Slide
(Celestron 44401)

We Think You Should Know

• Australian Celestron Warranty
• Purchase Guarantee (see T&C's)
• 1mm etched scale, 100 divisions
• Standard 1" x 3" glass slide
• Calibrates digital and traditional microscopes
• Measures specimens from 0.01mm

Overview

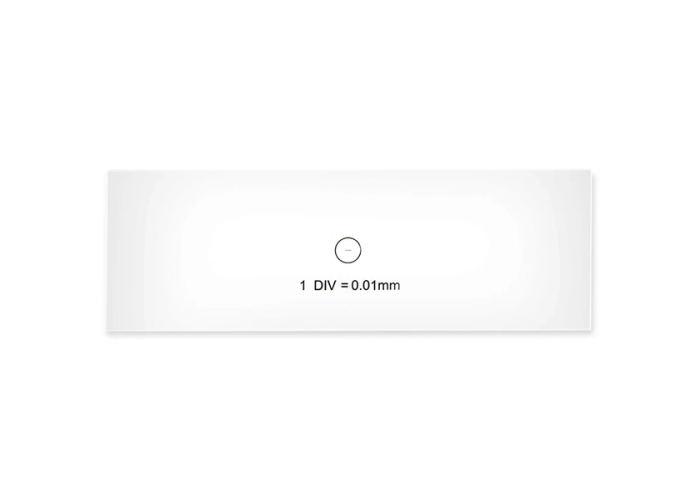

The Celestron Calibration Slide is a stage micrometer for ensuring accurate measurements from any microscope. The etched scale runs 1mm in total length and is subdivided into 100 equal divisions, giving you a reference of 0.01mm per division. Use it to calibrate digital microscope software, set eyepiece reticles on traditional microscopes, or manually measure specimens from 1/100th of a millimetre upward — microfibers, for example. The slide measures the standard 1" x 3" size and fits any microscope stage. Calibrating regularly, especially when changing objectives or eyepiece reticles, keeps measurement accuracy consistent across sessions.

Key Features

• 1mm Etched Scale with 100 Divisions – The etched scale runs 1mm in total length and is subdivided into 100 equal divisions, giving you a reference of 0.01mm per division for precise specimen measurement.
• Standard 1" x 3" Glass Slide – Measures 1" x 3", the standard size that fits any microscope stage with a slide holder, mechanical or plain.
• Calibrates Digital Microscope Software – Use the stage micrometer to set the measurement scale in digital microscope software or digital imager attachments, ensuring accurate readings from your captured images.
• Calibrates Eyepiece Reticles – On traditional microscopes, use the slide to calibrate eyepiece reticles and determine the field of view for different objective lens and eyepiece combinations.
• Measures Specimens from 0.01mm – Use the stage micrometer to manually measure specimens of 1/100th of a millimetre or larger, such as microfibers and fine particles.
• Maintains Accuracy Across Sessions – If you change objectives or eyepiece reticles often, regular use of the calibration slide keeps measurement accuracy consistent.
• 2-Year Celestron Warranty – Backed by Celestron's 2-year warranty for confidence in the field.

Ideal For

• Users of digital microscopes or digital imager attachments needing calibration
• Traditional microscope users wanting accurate eyepiece reticle measurements
• Anyone measuring specimens from 0.01mm upward, such as microfibers
• Microscopists who change objectives and reticles frequently
• Students and educators needing consistent measurement accuracy

Celestron

Celestron has been an optics industry leader for decades, ever since Tom Johnson unveiled the game-changing C8 multi-use telescope. As the world’s number one telescope maker, Celestron employs nearly 100 people worldwide, including a robust product development team at their headquarters in Torrance, California, and their world-class team of optical and electronic engineers continues to push the boundaries of technology.

• 1 x Celestron Calibration Slide (stage micrometer)
