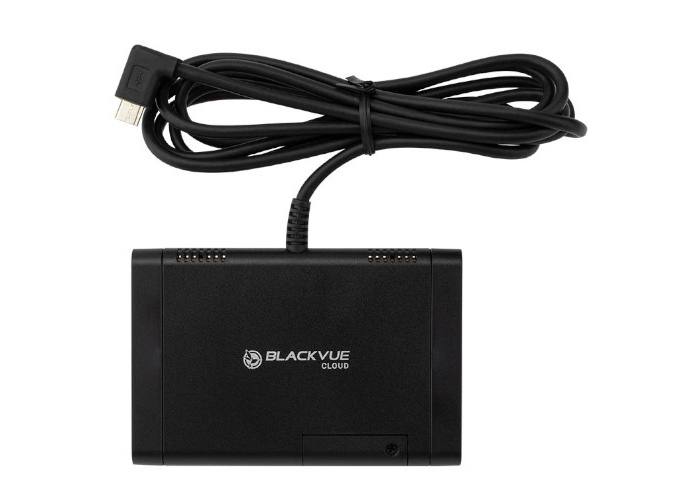

Name: BlackVue LTE Connectivity Module - CM100GLTE
Brand: BlackVue
SKU: CM100LTE
Price: 231.85 AUD
Availability: InStock

BlackVue LTE Connectivity Module - CM100GLTE
(BlackVue CM100GLTE)

We Think You Should Know

Australian BlackVue Warranty
Purchase Guarantee (see T&C's)
USB Plug-in Connectivity Module
4G LTE connectivity

Overview

The CM100GLTE is a Micro USB Plug-in LTE Connectivity Module for compatible BlackVue dash cams which enables CLOUD connectivity. USB Plug-in Connectivity Module (CM100GLTE) for DR900X and DR750X dashcams. Empower your BlackVue dashcam with 4G LTE connectivity.

Supports the following LTE bands:

EC25-A: B2/B4/B12
EC25-J: B1/B3/B8/B18/B19/B26
EC25-E: B1/B3/B5/B7/B8/B20

Features

The BlackVue LTE Connectivity Module connects to your compatible BlackVue dash cam to provide easy 4G LTE connectivity. All you need is a valid Nano SIM card, BYO DATA. The CM100GLTE connects via the USB port of your dash cam. Your BlackVue camera powers the module and automatically accesses the Cloud when the module is plugged in and the camera is powered on.

Note: when purchasing, make sure the CM100GLTE you choose is compatible with your mobile carrier’s network. Not compatible with DR590X Series. Cloud connectivity is restricted with ‘Power Saving Mode’ setting for ELITE model cameras.

LTE Connectivity Module
With DR900X and DR750X, you can connect an LTE Connectivity Module (CM100GLTE) which is powered by the dashcam and provides 4G LTE connectivity for your dashcam. This allows you to connect your dashcam to BlackVue Cloud and receive notifications to your phone when your parked car gets hit. It also lets you remotely see what your dashcam sees in real time. Being powered by the dashcam, you do not need to worry about the CM100GLTE running out of power like you might with a self-powered router.

BlackVue - The Brand

BlackVue is one of the leading dash camera manufacturers in the world. They are renowned for being the first company to introduce Wi-Fi and Smartphone Applications to enable easy viewing without the need for computers. Rest assured that when you buy a BlackVue product, you will receive premium support and customer service from the largest provider of quality dash cameras in Australia.

View All Features

Model Name	CM100GLTE
Colour / Size / Weight	Black / Length 90 mm x Width 60 mm x Height 10 mm / 110 g
LTE Module	Quectel EC25
LTE Supported Band	EC25-A: B2/B4/B12 EC25-J: B1/B3/B8/B18/B19/B26 EC25-E: B1/B3/B5/B7/B8/B20
LTE Features	Support up to Non-CA CAT. 4 FDD and TDD LTE-FDD: Max 150Mbps(DL) / Max 50Mbps(UL) LTE-TDD: Max 130Mbps(DL) / Max 30Mbps(UL)
Transmitting Power	Class 3: 23dBm +/-2dBm @ LTE-FDD Bands
SIM Type	Support Nano SIM Card / 3.0V
Connector Type	Micro USB Type-B Connector with Harness Cable
USB Interface	Compliant with USB 2.0 specification (Slave Only), Reach up to 480Mbps for data transfer rate
Antenna Type	Fixed / Intenna (Main, Diversity)
GPS	GL: GNSS (GPS+GLONASS)
Power Supply	USB Harness Cable: 3.0m Typical Supply Voltage: 5.0V / 1A Supply Input Voltage: 3.3V ~ 5.5V / Max. Current : 2A
Power Consumption	Idle Mode: 30mA Traffic Mode: 620mA @ Max. Power (23dBm)
Temperature Range	Operation Temperature Range: -35°C ~ +75°C Storage Temperature Range: -40°C ~ +85°C
Certifications	CE, UKCA, FCC, ISED, RCM, TELEC, KC, WEEE, RoHS
