Axis JS5001 Monitor & C20 Camera Security Kit

Axis JS5001 Monitor and C20 Camera Security Kit
(Axis JS5001C20)

We Think You Should Know

• Genuine Australian Axis Warranty
• Peace of Mind Purchase Guarantee
• Kit Includes JS5001 5" LCD Colour Monitor and C20 Rear-View Camera
• Slimline design
• Built-In Speaker
• Dual mounting 1/4" CMOS camera

Overview

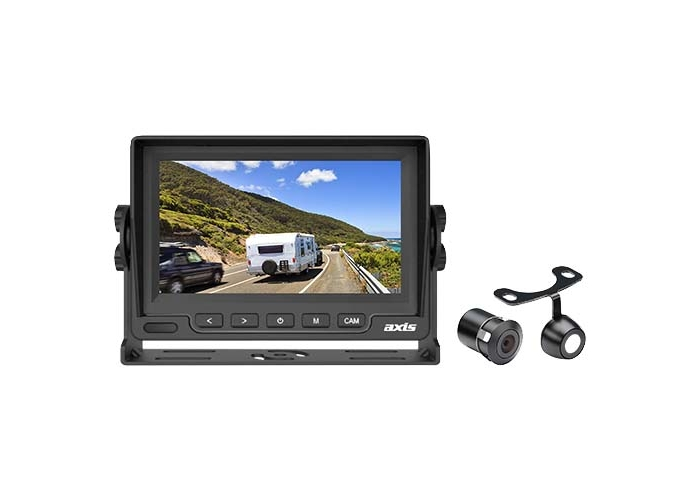

This package includes an Axis JS5001 5" LCD colour monitor and a C20 1/4" CMOS Rear-View Camera.

The JS5001 is a universal 12/24V colour monitor system for in-vehicle entertainment and reversing safety applications. It is suitable for cars, 4WD’s caravans or trucks.

The C20 is a versatile weatherproof 12/24V rearview camera. It features dual mounting heads for license plate or surface stealth insert mounting. It also has built-in parking guidelines and a crystal clear image allowing both driver and passengers to enjoy their journey with peace of mind, no matter the weather conditions on the road.

Axis - The Company

With a focus on innovation in automotive and marine product solutions, Axis has been a prominent brand since 1996, providing a wide range of product categories including automotive entertainment, safety, and communications. From audio solutions for trucks and all-terrain vehicles to comprehensive reversing safety systems, Axis offers complete solutions for cars, caravans, RVs, boats, trucks, machinery, and commercial vehicles. Choose Axis for top-of-the-line products and solutions for all your automotive and marine needs.

Axis JS5001 Monitor

• TFT Panel: New Grade A LCD LED Backlight
• LCD Size: 125mm (5-Inch) Diagonal
• Display Format: 16:9/4:3
• Resolution: 800 (H) x RGB x 480 (V)
• Brightness: < 480 CD/M2
• Contrast Ratio: 500:1
• Video System: Auto PAL/NTSC Select
• Video Input: AV1 – Video/Audio Input, AV2 – Auto Switching (For Reverse Camera)
• Main Menu: Brightness/Contrast/Colour/Volume/IR Control/Reset
• Video Connections: 4-Pin (Female) x 2
• Audio: On Board Speaker
• Power Input: 11-32V DC (Negative Ground)
• Dimensions: 145W x 108H x 26D mm (excluding brackets)

Axis C20 Camera

• 704 x 576 Resolution
• Waterproof (IP67)
• Selectable PAL/NTSC
• Selectable Guidelines
• Normal/Mirror Image Selectable
• Dual Mount Heads
• Dimension Ø16.5mm
• 170° Diagonal / 110° Horizontal Viewing Angle

• Axis JS5001 5" LCD Colour Monitor
• Axis C20 1/4" CMOS Reversing Camera
• Mounting Brackets
• Stand Mount
• U-Shape Mount
