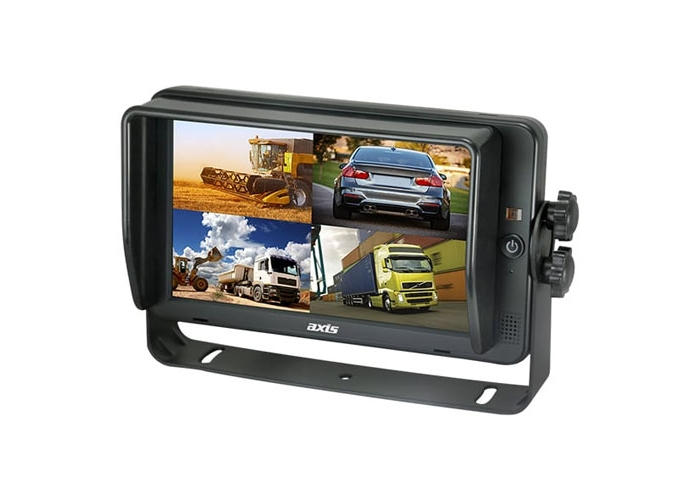

Axis HD1014 1080P Heavy Duty LED Monitor

Check out the Axis HD1014 1080P Heavy Duty LED Monitor's Key Features
(Axis HD1014)

• Genuine Australian Axis Warranty
• Peace of Mind Purchase Guarantee (bottom of page)
• 10.1'' TFT Touch Screen
• 1024 * 800 Touch Screen
• Up to Quad View
• 4* 4 Pin (Male) & VGA Video Connection
• 5 Reverse Triggers

Overview

Axis HD1014 is a high resolution 12/24V quad view heavy duty LED monitor system for trucks, machinery and vehicles. Supports FHD 1080P cameras for sharp viewing. With features like adjustable image & parking guidelines, this unit will suit many applications for reversing safety & convenience.

• TFT Panel: New Grade A LCD with LED Backlight
• Touchscreen: Yes, Capacitive Touch
• LCD Size (Diagonal): 10.1”
• Display Format: 16:9
• Resolution: 1024 x 800
• Brightness: < 500 CD/M2
• Views: 1/2/3/4 Selectable
• Viewing Angles: 75 Deg. Left/Right/Up/Down
• Video System: PAL/NTSC Select
• Video Connections: 4 x 4-Pin (Male), VGA
• Camera Display: Input Select and Reverse Trigger Override
• Reverse Trigger: 5 Triggers
• Monitor View: Normal/Mirror Image Select
• Guidelines: Selectable & Adjustable
• Audio: On Board Speaker
• OSD Languages: 9
• Main Menu: Brightness/Contrast/Colour/Volume/Reset/Autoscan/Language/Reverse Priority
• Temp Resistance: +70°C
• Power Input: 11-32V DC (Negative Ground)
• Dimensions: 267W x 159H x 30D mm (excluding brackets)

• Axis HD1014 1080P Heavy Duty LED Monitor
• Remote Control
• U Bracket
• Stand Mount
• Power Cable Assembly
• Sunshade
