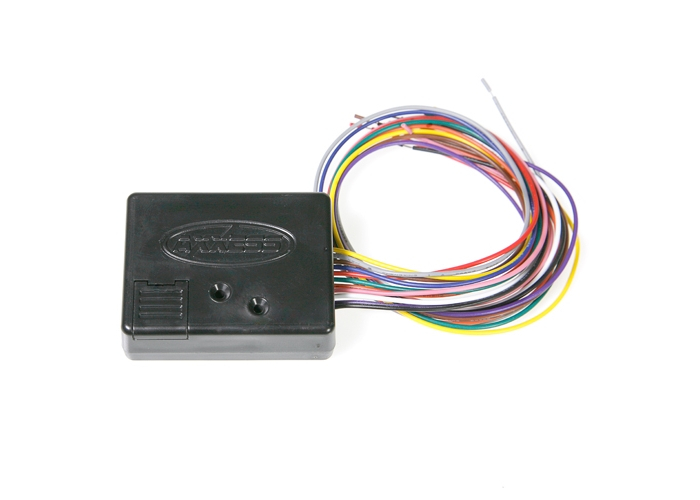

Aerpro Trigger Output module - TRIGGER

Delivery and In-Store Pickup: As this product is located at an external warehouse delivery times may be delayed by up to 48 hours. In-store pickup is not available on this item.

Check out the Trigger Output Module 's Key Features

(Aerpro TRIGGER)

• Genuine Australian Aerpro 1 Year Warranty
• Peace of Mind Purchase Guarantee (bottom of page)
• Allows plug and play installation of head units into CAN-Bus vehicles
• Easier Installation

Overview

The Trigger is a universal module that provides 15
different preset functions that are activated from a
positive or negative trigger. In addition to the preset
features the Trigger has 8 custom modes with
customizable settings that allows the installer to
utilize their imagination.

*Requires USB-CAB (sold separately) and downloaded trigger program to access custom modes

Peace of Mind Purchase Guarantee & Declaration of Warranty
This product is supplied directly via Aerpro Australia and enjoys the FULL benefits of the 'Aerpro - 12 Month Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). Should this product fail, you have the option of contacting the manufacturer / supplier directly.

We are a FULLY AUTHORISED Australian retailer for Aerpro Australia.

This product will be shipped from our Sydney Warehouse. This product is NOT DROP SHIPPED from overseas.

Default: EBrake Emulator
Mode 1: Retained accessory power
Mode 2: Delayed amp turn-on
Mode 3: Low voltage turn-on
Mode 4: Latched outputs
Mode 5: GMLAN aftermarket amp turn-on
Mode 6: Active edge pulse generator
Mode 7: Turn-off delay
Mode 8: Double pulse latch
Mode 9: Double pulse to one-second output
Mode 10: Theft detection/closed loop trigger
Mode 11: Channel expander
Mode 12: Simple data detector (amp turn-on signal from data)
Mode 13: Long delayed turn-off (for headlights)
Mode 14: Dome light delay
Mode 15: Custom program
Custom Mode 1: Channel expander/ latched
Custom Mode 2: Channel expander/ pulsed
Custom Mode 3: Delayed turn-off
Custom Mode 4: Delayed turn-on
Custom Mode 5: Delayed three-output delay/pulse width/ edge driven
(for use with linear actuators)
Custom Mode 6: Generic three-output delay/pulse width/ level driven (validity)
Custom Mode 7: Square wave-generator (sounds horns/ blinks lights)
Custom Mode 8: Multiple pulse generator

In the pack:
1x TRIGGER interface
1x TRIGGER harness (with open-end leads)
1x Installation guide
