Aerpro SWAD00C SWC Interface to Suit Audi
Aerpro SWAD00C Steering Wheel Control Interface to Suit Audi
(Aerpro SWAD00C)
- Australian Aerpro Warranty
- Purchase Guarantee (see T&C's)
- Retains Steering Wheel Controls
- Enhanced Safety
- OEM Phone Button Support
- Bose & Half-Amplified System Compatibility
Important Information
- Steering Wheel Control Interfaces vary between models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
- Aftermarket headunit must be SWC compatible and Steering Wheel Control Functions may vary from the OEM Functions.
- To maintain OEM Bose Amplified System, the aftermarket headunit requires front & rear RCA pre-outs
Overview

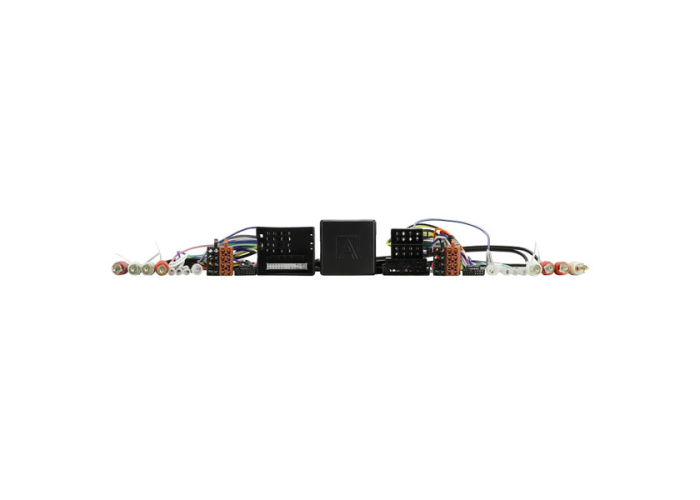

The Aerpro SWAD00C Steering Wheel Control Interface (SWC) allows you to upgrade to an aftermarket headunit whilst maintaining use of your factory steering wheel controls. Engineered to suit various Audi models with Concert, Symphony or Chorus OEM headunits with Mini-ISO Connector or Quadlock (40 Way) Connector, the interface will also maintain OEM amplified Bose systems, non-digital amplified systems (the aftermarket headunit requires front & rear RCA pre-outs). The steering wheel control interface includes a harness that is fitted with a vehicle specific plug designed to connect directly into the existing wiring in the vehicle with ease, no cutting of the factory wiring harness in the vehicle is required. Installation of the aftermarket headunit is simplified even further when paired with the optional Aerpro APP8 Headunit Secondary ISO Harness, which connects between the aftermarket headunit and the Aerpro Steering Wheel Control Interface. This interface is CANBUS compatible and provides various outputs including Reverse Trigger, Park Brake, Speed Pulse, Illumination and Amp Remote.
Key Features:
Retains Steering Wheel Controls
Upgrade to an aftermarket head unit while keeping factory steering controls.
Enhanced Safety
Keep hands on the wheel and eyes on the road.
OEM Phone Button Support
Works with compatible aftermarket Bluetooth head units.
Bose & Half-Amplified System Compatibility
Requires front & rear RCA pre-outs on the head unit.
Known to Suit
Audi A3 2000-2003 (Headunit Dependant)
Audi A3 2003-2007 (8P) (Headunit Dependant)
Audi A3 2006-2012 (8P)
Audi A4 1996-2000 (B5)
Audi A4 1998-2001 Avant (B5)
Audi A4 2001-2008 (B6, B7) (Headunit Dependant)
Audi A6 1995-1997 (C4)
Audi A6 1997-2001 (C5)
Audi A6 2002-2004 (C5) Facelift
Audi A8 1995-2003 (D2 Chassis)
Audi TT 2000-2006
Audi TT 2007 - 2014 (8J)
Audi Allroad 2001-2006 (C5) (Headunit Dependant)
Aerpro - The Company
Aerpro is a company that offers a range of mobile electronics products, accessories, and installation solutions for the Australian automotive aftermarket, including products like CarPlay & Android Auto, head units, and safety vision systems.
| Specifications | Details |
|---|---|
| Interface Type | CANBUS |
| Patch Lead Type | SW |
| Phone Button Compatibility | Yes |
| Voice Assistant Support | No |
| Outputs | Reverse Trigger: Yes (Purple/White) |
| Park Brake: Yes (Green) | |
| Speed Pulse: Yes (Pink) | |
| Illumination: Yes (Orange) | |
| Amp Remote: Yes (Blue) – Must be connected to turn on factory amplifier | |
| OEM Amplified System | Yes (Bose & Half Amplified Systems – Not Digital Systems) |
| Notes | Aftermarket headunit must be SWC compatible. Requires front & rear RCA pre-outs for Bose & Half Amplified Systems. Digitally amplified TT models may require VAG programming (refer to vehicle info notes). Compatible with Chorus II, Concert II, Symphony I, Symphony II (Mini ISO connector). Compatible with Chorus II+, Concert II+, Symphony II+ (Quadlock 40-Way connector). Not suitable for RNS units. |
- Aerpro SWAD00C Steering Wheel Control to Suit Audi
Peace of Mind Purchase Guarantee
This product is supplied via Aerpro Australia and enjoys the FULL benefits of the 'Genuine Aerpro Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department or you can speak with Aerpro Australia directly.
We are a FULLY AUTHORISED Australian retailer for Aerpro Australia.
