Aerpro Install Kit Fits Mazda CX5 (FP9813)

Delivery and In-Store Pickup: As this product is located at an external warehouse delivery times may be delayed by up to 48 hours. In-store pickup is not available on this item.

Check out the Aerpro Mazda CX5 Professional Install Kit (FP9813)'s Key Features

(Aerpro FP9813)

• Genuine Australian Aerpro 1 Year Warranty
• Peace of Mind Purchase Guarantee (bottom of page)
• Application: Double Din
• Retain factory Bose amp and speakers
• Includes mounting brackets for easy installation

Notes:

1. Depending on the vehicle's illumination power supply specifications, the illumination interlocking function may not work depending on the car AV to be installed. In addition, illumination may be lit up.
2. Depending on the car AV, there may be no illumination power supply, but in that case it will not be connected.
3. If the antenna power terminal on the car AV side is a terminal other than JEITA (flat terminal), use the conversion code for antenna power supply. Be sure to connect. If there is no amp remote (system remote) in car AV please connect accessory power supply. If you do not connect, you will not hear any sound.
5. When the amp remote (system remote) on the car AV side is a terminal (flat terminal) other than JEITA, use the conversion code for the antenna / amplifier remote power supply.
6. The wiring color of steering remote control code differs depending on the installed car AVI.

Known to suit:

Overview

This set is includes our unique panel, all brackets and wiring needed to install the latest A/V head unit.


Want to make it easier:
We have a large range of custom wiring harnesses for many different makes and models of cars which make the process of wiring your new car stereo into your car easy. If we do not have your particular car listed for either the wiring harness or facia please contact our customer service as new products are being released quicker than we can get them online.

Peace of Mind Purchase Guarantee & Declaration of Warranty
This product is supplied directly via Aerpro Australia and enjoys the FULL benefits of the 'Aerpro - 12 Month Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). Should this product fail, you have the option of contacting the manufacturer / supplier directly.

We are a FULLY AUTHORISED Australian retailer for Aerpro Australia.

This product will be shipped from our Sydney Warehouse. This product is NOT DROP SHIPPED from overseas.

• Application: Double DIN

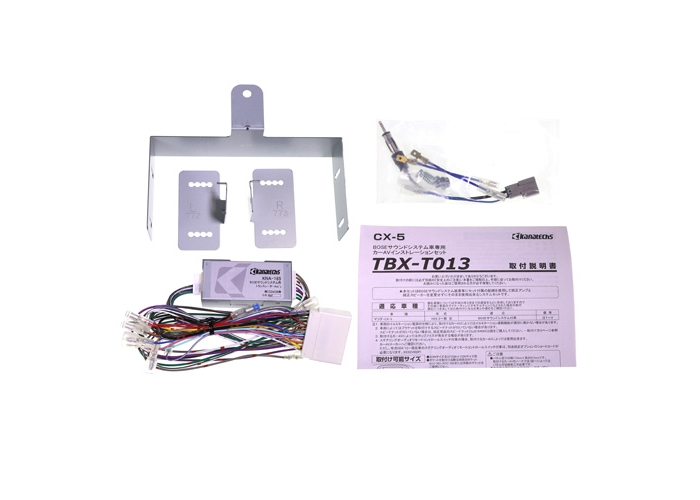

• Inclusions: Metal Brackets, Speaker and power harness, Antenna Adapter, Bose Translator, Detailed Instructions (in Japanese).

yellow/brown - steering wheel control signal
brown/black - steering wheel control ground

• Aerpro Mazda CX5 Professional Install Facia (FP9813)
• Metal Brackets
• Speaker and power harness
• Antenna Adapter
• Bose Translator
• Detailed Instructions
