Aerpro CHMC10C Steering Wheel Control Harness For Mercedes C Class 2012-2014

Delivery and In-Store Pickup: As this product is located at an external warehouse delivery times may be delayed by up to 48 hours. In-store pickup is not available on this item.

Aerpro CHMC10C Steering Wheel Control Harness For Mercedes C Class 2012-2014
(Aerpro CHMC10C)

We Think You Should Know

• Australian Aerpro Warranty
• Purchase Guarantee (see T&C's)
• CAN-BUS integration Compatible
• Supports OEM Phone Button
• Voice Assistant Button Support
• Suits Mercedes with Quadlock Connector
• Park Brake, Speed Pulse, Reverse and Amp Remote Feeds
• Requires SWC Patch Lead for Compatibility with Aftermarket Head Unit (sold separately)

Important Information

• Steering Wheel Control Interfaces vary between models, to find the correct part for your vehicle, use the Aerpro Vehicle Selector.
• A Steering Wheel Control Patch Lead is required to be used in conjunction with this part to enable Steering Wheel Controls to function (sold separately).
• Aftermarket head unit must be SWC compatible and Steering Wheel Control Functions may vary from the OEM Functions.
• Suitable for vehicles with QUADLOCK connectors.
• Includes yellow constant power cable that needs to be wired directly to a permanent 12V power supply

Overview

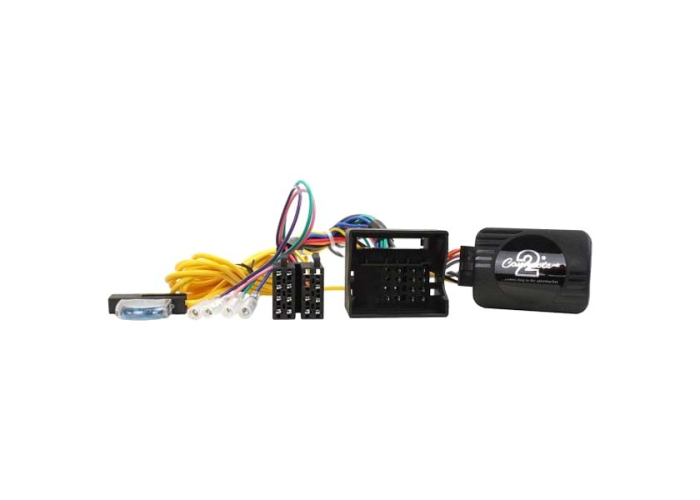

The Aerpro CHMC10C Steering Wheel Control Interface (SWC) allows you to upgrade to an aftermarket head unit whilst maintaining the use of your factory steering wheel controls.

Engineered to suit Mercedes C-Class W204 (2012-2014) vehicles with QUADLOCK connector, the steering wheel control interface includes a harness that is fitted with a vehicle-specific plug designed to connect directly to the existing wiring in the vehicle with ease, no cutting of the factory wiring harness in the vehicle is required.

Installation of the aftermarket head unit is simplified even further when paired with the optional Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead, which connects between the aftermarket head unit and the Aerpro Steering Wheel Control Interface.

This interface is CANBUS compatible and provides various outputs including Reverse Trigger, Park Brake, Speed Pulse and Amp Remote. It also includes a yellow constant power cable that needs to be wired directly to a permanent 12V power supply.

Known to Suit

Mercedes C-Class 2012-2014 W204

Aerpro

Established in 1985, TDJ Australia Pty Ltd is Australia's largest importer and wholesaler of automotive electronics and accessories. They are Australia's leading Innovative Developers of Products and Accessories for the Aftermarket and OEM Automotive Electronics Industry.

• Interface Type: CAN-BUS
• Patch Lead Type: C
• Phone Button Compatibility: Yes (When Enabled From Factory)
• Voice Assistant Button Support: Yes
  • For Voice Assistant support the interface requires firmware version xx.3. To update the firmware please contact your Authorised Aerpro Dealer
  • If your steering wheel control does not have a Voice Assistant button, the answer button will function as voice support instead
  • Aftermarket head unit and phone must also support Voice Assistant feature for this feature to work
• Outputs:
  • Reverse Trigger: Yes (Purple/White)
  • Park Brake: Yes (Green)
  • Speed Pulse: Yes (Pink)
  • Illumination: No
  • Amp Remote: Yes (Blue)
  • Telephone Mute: No
• Other Retention: N/A

IMPORTANT NOTE

• Steering Wheel Control Interfaces vary between models, to find the correct part for your vehicle, use the Aerpro Vehicle Selector.
• A Steering Wheel Control Patch Lead is required to be used in conjunction with this part to enable Steering Wheel Controls to function (sold separately).
• Aftermarket head unit must be SWC compatible and Steering Wheel Control Functions may vary from the OEM Functions.
• Suitable for vehicles with QUADLOCK connectors.
• Yellow constant power cable needs to be wired directly to a permanent 12V power supply.

• Aerpro CHMC10C Steering Wheel Control Harness For Mercedes C Class 2012-2014
