Aerpro AXDISTY1 Toyota Amp Interface With SWC
Aerpro AXDISTY1 Toyota Amp Interface With SWC
(Aerpro AXDISTY1)
- Australian Aerpro Warranty
- Purchase Guarantee (see T&C's)
- Steering Wheel Control Retention
- JBL Amplified System Compatibility
- OEM AUX Input Support
- Reverse Trigger Output
Overview

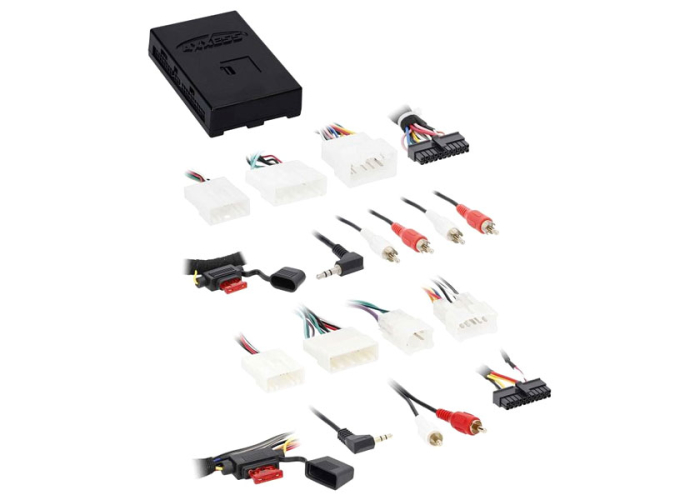

AXDISTY1 steering wheel control (SWC) interface allows you to retain steering wheel controls in your Toyota when upgrading to an aftermarket headunit. Designed specifically for Toyotas with JBL OEM Amplified Systems, this harness will also retain the factory amplifier including the balance function. The interface also includes AUX retention allowing the vehicle AUX to connect to compatible aftermarket headunits with rear AUX inputs. The steering wheel control interface includes a harness that is fitted with a vehicle specific plug designed to connect directly into the existing wiring in the vehicle with ease. Connection between the interface harness and aftermarket headunit needs to be hardwired, this interface is not compatible with the Aerpro Plug and Play ISO harness system. The interface also requires programming, complete installation instructions are included in the kit.
Key Features:
Retains Steering Wheel Controls:
Allows upgrading to an aftermarket head unit while keeping factory controls.
JBL OEM Amplified System Support:
Maintains factory amplifier and audio balance control.
OEM AUX Input Retention:
Works with compatible aftermarket head units with rear AUX input.
Reverse Trigger Output:
Provides an output feed for reverse trigger functionality.
Known to Suit
Lexus IS300 2001-2005
Lexus RX330 2003-2008
Lexus RX350 2003-2008
Toyota Prius 2004-2008
Toyota Prius 2009-2015
Toyota Tundra 2007-2013
Lexus SC430 2001-2010
Toyota RAV4 2006-2011
Aerpro - The Company
Aerpro is a company that offers a range of mobile electronics products, accessories, and installation solutions for the Australian automotive aftermarket, including products like CarPlay & Android Auto, head units, and safety vision systems.
| Specifications | Details |
|---|---|
| Phone Button Compatibility | No |
| Voice Assistant Button Support | No |
| Patch Lead Type | Not Required, Included in Kit |
| Outputs | Reverse Trigger (Green/Purple) |
| Other Retention | Factory JBL OEM Amplified System Including Balance Function |
| Notes | - Only suitable for Toyota vehicles with JBL OEM Amplified Systems - Hardwire installation between interface harness and aftermarket head unit harness is required - Steering wheel control programming required |
