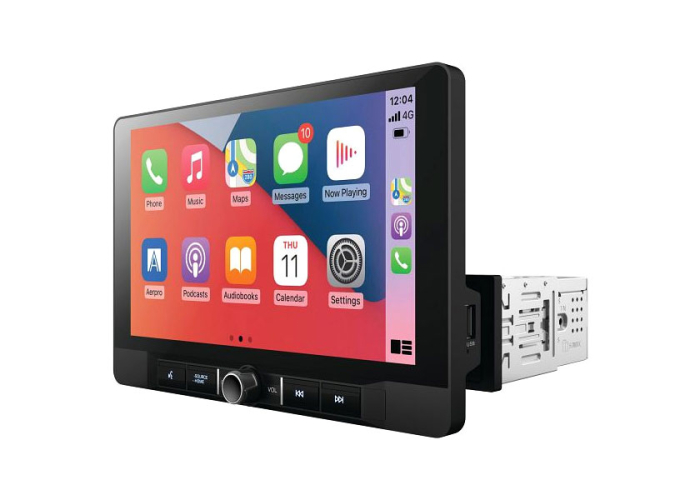

Aerpro AM9XFW 9" Floating Multimedia AV Receiver

Aerpro AM9XFW 9" Floating Multimedia AV Receiver
(Aerpro AM9XFW)

We Think You Should Know

• Australian Aerpro Warranty
• Purchase Guarantee (see T&Cs)
• Single Din
• 9" Floating Capacitive Touchscreen
• 1024x600 Resolution
• 4-Way Display Adjustment
• Apple CarPlay / Android Auto
• AM / FM / Bluetooth
• Reverse Camera Input
• 8 Band Equalizer
• Hema Maps Ready (optional AMHXD3 required, sold separately)

IMPORTANT NOTE:

• This head unit has a single DIN chassis.
• Aerpro Steering Wheel Control Interface and patch lead required for steering wheel control integration (sold separately).

Why buy the Aerpro AM9XFW 9" Floating Multimedia Receiver

The Aerpro AM9XFW Multimedia Receiver with Wireless Apple CarPlay and Android Auto features a large 9" floating capacitive touch screen display with 4-way position adjustment (height, depth, tilt & pivot). The built-in Bluetooth enables hands-free phone calls and wireless audio streaming and the included external microphone provides crystal clear communications. It has dual USB inputs, one at the front for charging and USB media playback and one in the rear for wired Apple CarPlay and Android Auto connection. Sound quality is superb with a built in 40Wx4 amplifier, 8 band graphic EQ and time alignment capabilities for precise sound adjustment. If more sound is desired, an amplifier can be added to the system via the 4V/6CH RCA preouts (front + rear + subwoofer). The unit is OEM steering wheel remote ready and has a 720P AHD compatible reverse camera input.

Experience seamless on-road and off-road navigation through the head unit display by adding the optional Aerpro AMHXD3 On-Road / Off-Road Navigation Module (sold separately).

Features

• Large 9" floating capacitive touchscreen LCD (1024 x 600)
• Floating display with 4-way adjustment: height, depth, tilt and pivot
• Works with Apple CarPlay (wireless or wired)
• Supports Android Auto (wireless or wired)
• Built-in Bluetooth (A2DP, AVRCP, HFP, PBAP)
• Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (optional AMHXD3 required, sold separately)
• AM / FM Tuner with 30 presets (18FM/12AM)
• Reverse camera input (AHD 720P compatible)
• Rear A/V input
• 4V / 6CH RCA Preout (front + rear + subwoofer)
• MP3 / MP4 / Xvid / FLAC Media formats
• Dual USB Inputs (front 2.1A, rear 1.5A)
• 8 Band graphic EQ
• 8 EQ Presets
• Time alignment capabilities
• Subwoofer level control
• 40Wx4 Max built-in amplifier
• Single DIN chassis mounting design
• Steering wheel control ready (SWC interface and patch lead required, not included)
• External microphone included

Aerpro

Established in 1985, TDJ Australia Pty Ltd is Australia's largest importer and wholesaler of automotive electronics and accessories. They are Australia's leading Innovative Developers of Products and Accessories for the Aftermarket and OEM Automotive Electronics Industry.

Browse the complete range of car multimedia head units, including Apple car play, android auto, and reverse camera.

• LCD Display:
  • Size: 9"
  • Resolution: 1024x600
  • Touch Screen: Capacitive (G+G)
  • Screen Adjustment: Height 1.5" (down), Depth 0", 0.5", 1" (forward), Tilt 25 Degrees (forward and back), Pivot 12 Degrees (side to side)
• System Specifications:
  • OS System / CPU: Linux 3.4.5 / SPHE8368U
  • RAM / Flash Memory: 128MB / 256MB
• DIN Size: 1 DIN Body
• Power Output
  • Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
  • MAX Power (4 Ohm): 4CH x 40W
• Media Playback: MP3 / MP4 / Xvid / FLAC
• Device Ports:
  • Front USB: 5V / 2.1A, Media/Charging
  • Rear USB: 5V / 1.5A, CP/AA/USB media
  • USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
  • Rear A/V Input (RCA Type - 3pcs): Yes
  • Composite Video Outputs: Yes
  • Reverse Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
• Bluetooth:
  • Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  • Bluetooth Version: V4.2+EDR
  • Microphone: External Microphone Included
  • ID3 Tag/Information (Artist, Album, Song): Yes
  • HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
• Tuner:
  • AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
  • FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
  • AM Frequency Span (KHz): 531-1629KHz (9KHz Step)
  • RDS: Yes
  • FM Antenna Connector Impedance: 50 Ohm
  • FM Tuner Connector: Motorola
• RCA Preamp Outputs:
  • RCA Preamp Output: 2-Pair (Front / Rear)
  • Dual Subwoofer RCA Output: Yes
  • Subwoofer Level Control: Yes
  • Preamp Voltage (1.2,2,4,5,6): 4V p-p
• Tone Control:
  • 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
  • Loudness: Yes
  • LPF - Frequencies (Sub): Yes
  • 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features:
  • Steering Wheel Control: Yes, with Aerpro SWC interface and patch lead (not included)
  • OSD Language: English
  • LED Colour (Buttons / Keys): White
• Accessories:
  • Power Harness: Yes with ISO/3.5mm jack
  • AV-In Cable (RCA with Audio L/R, Video In): Yes
  • Reverse Camera Input: Yes
  • 4.2CH Audio Out Cable: Yes
  • External Microphone: Included
• Important Information:
  • This head unit has a single DIN chassis.
  • Aerpro Steering Wheel Control Interface and patch lead required for steering wheel control integration (sold separately).

• Aerpro AM9XFW 9" Floating Multimedia AV Receiver
