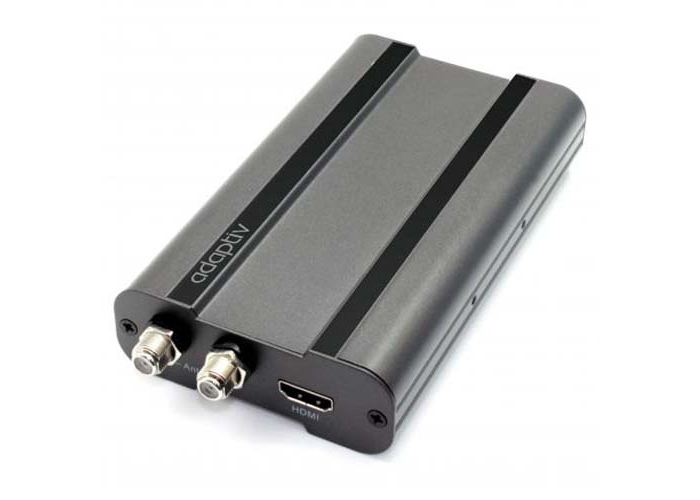

Adaptiv DVB-T Digital TV Tuner Add-On Module

Delivery and In-Store Pickup: As this product is located at an external warehouse delivery times may be delayed by up to 48 hours. In-store pickup is not available on this item.

Check out the Aerpro Adaptiv DVB-T SD Digital TV Tuner Module's Key Features
(Aerpro ADVDVBT2)

• Genuine Australian Aerpro 1 Year Warranty
• Peace of Mind Purchase Guarantee (bottom of page)
• Plug and play compatible with all Adaptiv vehicle interfaces
• Control via OEM controls (Touchpad for specific Audi models only)
• Real time 1080p Full-HD video decoder
• Multi language
• Best-in-class sensitivity for mobile HD DVB-T2 reception
• +5V Phantom power output for active antenna
• Stylish and user-friendly GUI
• USB and HDMI Ports
• Robust quality in both hardware and software



Overview

Adaptiv ADV-DVBT2 is designed to access terrestrial DVB-T2 TV broadcasting services recently emerging in many regions. As a whole, the ADV-DVBT2 accepts signal inputs from DVB-T2 antennas, performs all required TV signal processing, and then generates analog/digital AV contents for display in monitors. With its state-of-the-art TV signal reception and Audio/Video processing techniques, ADV-DVBT2 promises to deliver users an easy access of local HD DVB-T2 TV programs.

RF Input
Antenna - Active antenna supported (F-Connector)
Frequency range - VHF (170-230 MHz) and UHF band (470-862 MHz)
RF input impedance - 75 Ohm
Channel bandwidth - 6/7/8 MHz

TV System
Transmission standard - ETSI EN 302-755 v1.3.1 standard Support all DVB-T2 modes, including, Single and multiple-PLPs. SISO and MISO transmission
Video/Audio decoder - Real time 1080P Full-HD Video Decoder: MPEG-2(ISO/IEC 13818-2) SD& HD. H.264 (MPEG-4 AVC, ISO/IEC 14496-10) SD & HD

S/W Feature
OSD Language - English, German, French, Portuguese, Spanish, Italian, Dutch, Finnish, Traditional Chinese, Thai
Features - DVB-T2 TV, Auto Channel Search, Multi-Language EPG, Teletext, Subtitle
TV/Radio Recording - Record TV programs on USB device

Media format
Media port - USB
Audio format - MP3, WAV, ASF(option), AAC(option), WMA(option), RM(option)
Video format - MPEG-I/II/IV, VOB, AVI, DivX, Xvid, MKV, TS, MOV, RMVB(option), FLV(option), WMV(option), ASF(option)
Subtitle format - SRT, SUB, SSA, ASS, SMI, PSB, TXT, IDX
Recorded file format - *.tsv (TV recording)

Interface
USB port - Support USB 2.0 host (for playback and for TV/Radio recording)
Power/IR port - Combination of power input, ACC input, IR CVBS, Video/Audio GND, and RGB output
HDMI port - Type-A connector, HDMI 1.3 transmitter 1080 supported

Power
Input voltage - 12-24 V DC
Power consumption - 4.5 W

Dimension and Weight
Dimension - 7929138 mm
Weight - 310 g

• Aerpro Adaptiv DVB-T SD Digital TV Tuner Module
