SmallRig 1843 Plate Kit for Sony PZW-FS5

Delivery and In-Store Pickup: As this product is located at an external warehouse delivery times may be delayed by up to 48 hours. In-store pickup may not be available on this item.

Check out the SmallRig 1843 Plate Kit for Sony PZW-FS5's Key Features

(SmallRig SM1843)

• Genuine Australian SmallRig Warranty
• Peace of Mind Purchase Guarantee
• An integrated cold-shoe for wireless microphone.
• M2 threaded holes to attach original cable clamp.
• ARRI locating holes included.
• 1/4" threaded holes on the top could attach accessories in different scenarios.

Overview

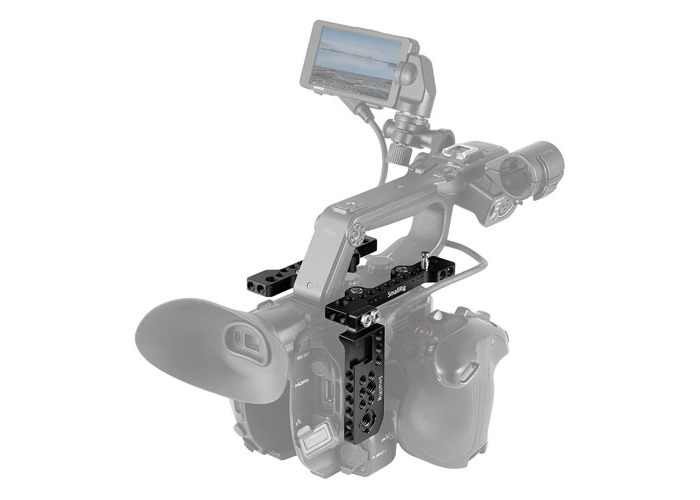

This plate kit includes a pair of top plates and a side plate, and it is exclusively designed for Sony PXW-FS5. The cold shoe could attach the transmitter of the wireless microphone. 1/4" threaded holes at the side are used to lock the side plate tight and M2 threaded holes are used to attach original cable clamp or other accessories. 1/4" and 3/8" threaded holes could connect magic arms and then monitor, or wireless video transmitters. Arri locating holes could attach SmallRig Anti-rotation Magic Arm Adapter 1978 and then magic arm to attach the monitor. 1/4" threaded holes on the top could attach accessories in different scenarios: firstly, attach SmallRig Single 15mm Rail Clamp 1549 and then SmallRig EVF Mount 1587; secondly, attach SmallRig Cold Shoe 1960 and then SmallRig Articulating Rosette Arm(7") 1497; thirdly, attach magic arms and then monitor. In addition, 3/8" threaded holes on the top could attach magic arms and then monitor.

Compatibility:
Sony PXW-FS5

Product Dimensions: 120 x 75 x 40mm
Net Weight: 160g
Package Dimensions: 156 x 82 x 42mm
Material(s): Aluminum Alloy

Compatibility:
Sony PXW-FS5

• 2 x Top Plate
• 1 x Side Plate
• 6 x 1/4"-20 Screw
• 2 x Hex Spanner
