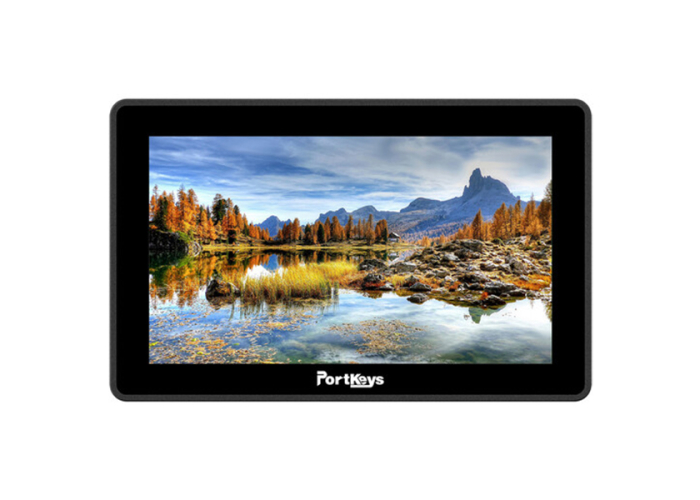

main product photo

PortKeys LH5P II 5.5-inch Touchscreen Monitor

SKU
PKLH5PII
Be the first to review this product
Out of stock
$768.85

$7.95 Flat Rate Shipping

Add to Wish List Add to Compare
Buy Now Pay Later
Buy now pay later
from $10
4 x $192.21
4 x $192.21

PortKeys LH5P II 5.5-inch Touchscreen Monitor
(PortKeys PKLH5PII)

  • Australian PortKeys Warranty
  • Purchase Guarantee (see T&Cs)
  • 5.5" HDMI 1920 x 1080 Touchscreen
  • Sony FS5/FS7/FX6/FX9 Control
  • Up to DCI 4K24 Video Input Support
  • 2200 cd/m² Brightness, HDR Preview
  • HDMI Input & Output, Headphone Jack
  • Integrated Bluetooth Module
  • Control Record, Shutter, Focus & More
  • Wired Tilta Nucleus-N/M Motor Control
  • 3D LUT Support, L-Series Battery Plate
  • Camera Control Cable Included

Overview

Add pro monitoring tools and control for select Sony cameras to your camera rig with the LH5P II 5.5" Touchscreen Monitor from PORTKEYS. This bright, 5.5" on-camera touchscreen display offers 2200 cd/m² brightness with the ability to input and output up to DCI 4K24 or UHD 4K30 video via HDMI. Compatible with Sony FS5, FS7, FX6, and FX9 cameras, this monitor features a built-in Bluetooth module that enables select camera functions and includes a control cable to connect your device to the monitor.

View All Features
Key Specs

Display Size
5.5" / 14.0 cm
Resolution
1920 x 1080
Touchscreen
Yes
Video I/O
1 x HDMI Input
1 x HDMI Output
Power Consumption
13 W (Maximum)

Display

Panel Type
LCD
Display Size
5.5" / 14.0 cm
Resolution
1920 x 1080
Aspect Ratio
16:9
Viewing Angle
Horizontal: 178°
Vertical: 178°
Touchscreen
Yes
Maximum Brightness
2200 nits / cd/m2
Contrast Ratio
1000:1
Bit Depth / Color Support
10-Bit (1.07 Billion Colors)
HDR Compatibility
Yes
Pixels Per Inch (ppi)
401 ppi
Color Gamut
100% Rec. 2020
85% DCI-P3
Image Controls
Anamorphic De-Squeeze, Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, H/V Delay, Histogram, Image Flip, Screen Markers, Waveform, Zebra
Video I/O
1 x HDMI Input
1 x HDMI Output
Embedded Audio
HDMI
Audio I/O
1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker
None
Power I/O
1 x Proprietary (24 VDC) Input/Output
Other I/O
1 x Mini-USB
1 x USB-A Input
Media/Memory Card Slot
None
Wi-Fi
None

Format Support

Video Format
HDMI (8-Bit 4:4:4/4:2:2)
DCI 4K: 24
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94/50
480i: 60/59.94/50

Power

DC Input Power
7 to 24 VDC
Battery Type
1 x L-Series
Power Consumption
13 W (Maximum)
Mounting
1 x 1/4"-20 Female

Environmental

Certifications
FCC Part 15 C
Operating Temperature
32 to 104°F / 0 to 40°C

General

Material of Construction
Aluminum, Glass
Dimensions
5.7 x 3.5 x 1.22" / 144 x 90 x 30.88 mm
Weight
10.1 oz / 285 g
View All Features
  • PORTKEYS LH5P II 5.5" Touchscreen Monitor with Camera Control for Sony FS5/FS7/FX6/FX9
  • Control Cable for Sony FS5/FS7/FX6/FX9
  • USB Flash Drive
  • Power Cord
  • 2 x 2.4 GHz Antenna
  • Storage Box
