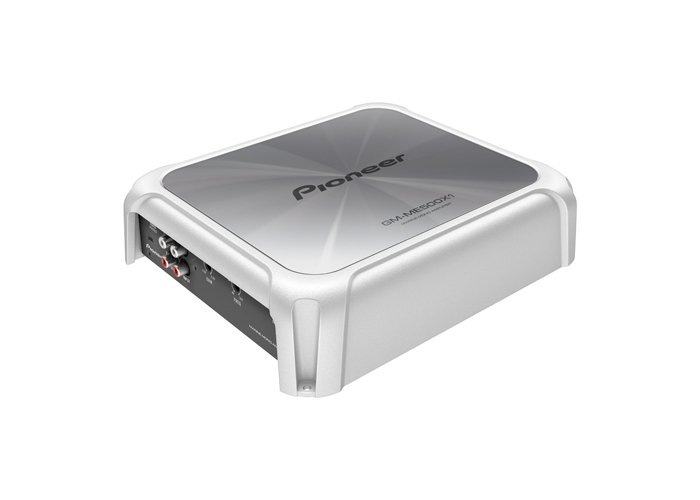

Pioneer GM-ME500X1 Class-D Marine Mono Amplifier
Pioneer GM-ME500X1 Marine Class-D Mono Amplifier
(Pioneer GM-ME500X1)
We Think You Should Know
- Australian Pioneer Warranty
- Purchase Guarantee (see T&C's)
- 1-Ch Class-D Amplifier
- 1600W Maximum Power
- 300W x 1 RMS Output - 4Ω
- 500W x 1 RMS Output - 2Ω
- 800W x 1 RMS Output - 1Ω
- Aluminum Top Plate
- Matched Power Ratings for Use With Pioneer Marine Speakers & Subwoofers
Overview
Is the power from your marine audio system not quite matching the power of your boat? The Pioneer GM-ME500X1 can easily and cost-effectively solve your problems. Designed to support the Pioneer range of subwoofers they also feature a conformal coating on the PCB to reduce the damaging impacts of exposure to sun and adverse weather conditions.
Features
CONFORMAL COATED PCB
Pioneer’s marine amplifiers support a conformal coated PCB to reduce the damaging effects of sun exposure and adverse weather conditions making them ideal for marine use.
Pioneer Electronics
Pioneer is a Japanese multinational corporation founded in 1937 that specializes in digital entertainment products. It's one of the most trusted brands in practically any field of car audio. With the renowned innovation, persistence and integrity of Japanese businesses, you can expect the latest technology and the highest possible quality from Pioneer car audio products.
| GENERAL | |
| RCA Inputs | MONO |
|---|---|
| Amplifier Class | CLASS-D |
| Speaker Level Input | Yes |
| Warranty | 1 Year |
| Fuse Rating | 40A x 2 |
| Terminal Type | Block |
| Load Impedance Allowance (Ohms) | 1 to 8 |
| Protection Control System | Yes |
| Dimensions | 252mm (W) x 60mm (H) x 215mm (D) |
| AUDIO | |
| Continuous Power (RMS) Output @ 1Ω | 800W RMS x 1 |
| Continuous Power (RMS) Output @ 2Ω | 500W RMS x 1 |
| Continuous Power (RMS) Output @ 4Ω | 300W RMS x 1 |
| Frequency Response | 10 Hz to 240 Hz |
| Total Harmonic Distortion (THD) | < 0.5% (100 Hz) |
| Signal-to-Noise (SN) Ratio | > 100 dB |
| Crossover Type | Variable LPF |
| Low-Pass Crossover Frequency | 40 Hz to 240 Hz |
| Low-Pass Slope (dB/octave) | -12 dB/oct. |
| High-Pass Crossover Frequency | N/A |
| MARINE | |
| Rubber Covers Included | Side Panel Cover, RCA Terminal Cover, FUSE Cover |
- Pioneer GM-ME500X1 Class-D Mono Amplifier
- User's Manual
