Olympus 12-40mm F2.8 PRO Zoom Lens

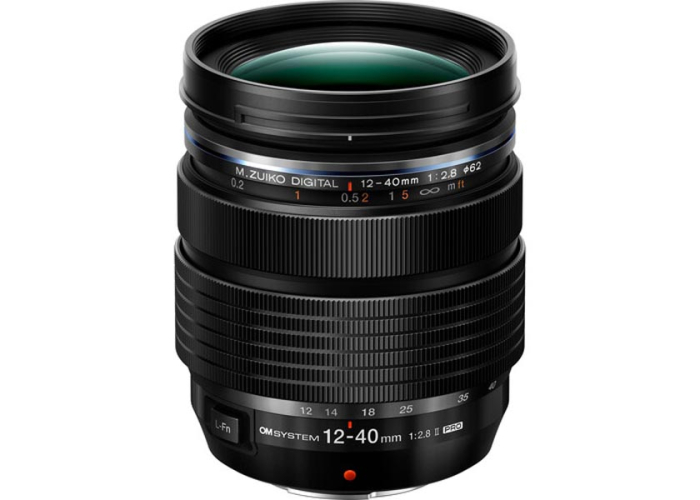

Olympus M.Zuiko Digital 12-40mm f2.8 PRO Lens
(Olympus EZ-M1240B)

We Think You Should Know

• Australian Olympus Warranty
• Purchase Guarantee (see T&C's)
• Constant f/2.8 aperture
• Dust, splash & freeze‑proof
• Compact and lightweight
• 20cm closest focusing distance
• Auto-focusing with high speed
• High-grade image

Overview

The Olympus M.ZUIKO DIGITAL ED 12‑40mm 1:2.8 PRO lens is engineered to meet the needs of professional photographers in all respects. This is a large-diameter, F2.8 zoom lens with dustproof, splashproof, and freezeproof construction. It possesses optical performance that exceeds that of Four Thirds High-Grade series lenses. The lens is equipped with enhanced features such as the manual focus clutch mechanism and the ability to approach subjects up to only 20 cm away from the sensor at all focal distances, for macro shooting.

Features

Constant f/2.8 aperture
With the addition of the M.Zuiko Digital ED 7-14mm f/2.8 PRO, the PRO series now provides a constant maximum aperture of f/2.8 from ultra wide-angle to telephoto.

Compact, lightweight lens with excellent mobility

A F2.8 constant aperture zoom lens covering the same focal lengths with an APS-C DSLR and 12-40mm F2.8 PRO

Macro performance for getting up to 20cm away from the imaging surface at all focal distances and a maximum image magnification of 0.6x (35mm equivalent)
It is possible to achieve a closest focusing distance of 20cm from the sensor at all focal distances without switching to macro mode. At the telephoto setting, close-up shooting is possible up to 7cm from the end of the lens. Macro shooting is possible up to a maximum image magnification of 0.3x (35mm equivalent: 0.6x). Because you can approach main subjects up to 9cm from the end of the lens at the wide-angle setting, wide-angle macro shooting with an exaggerated sense of perspective is possible. This is a truly versatile lens.

Dustproof / Splashproof / Freezeproof
Dustproof, splashproof and freezeproof performance are achieved through hermetic sealing. This prevents incursion of water and dust through the waterproof, air permeable material.

The manual focus clutch mechanism makes instant switching to manual focus easy.
This lens is equipped with the manual focus clutch mechanism, which makes instant switching to manual focus easy by pulling the focusing ring towards you. By increasing resolving power with the snapshot focus mechanism, smooth and fine focusing equal to traditional manual focusing is possible. You can still focus in the traditional sense by utilising the stoppers at the extremely close end, and the infinity end of the focus ring.

Achieving high-resolution, high-performance, and compact size
This lens possesses optical performance that rivals the popular Four Thirds High Grade series. A rational lens design of 14 elements in 9 groups, including 2 ED lenses, 1 EDA lens, and 2 HR lenses, enables a compact form and excellent image capture.

ZERO Coating thoroughly eliminates ghosts and flares
Olympus' highly-transmittable ZERO (Zuiko Extra-low Reflection Optical) Coating is applied to the lens surface to eliminate previously hard-to-prevent occurrences such as ghosts and flares. ZERO Coating boasts clear image quality even under challenging conditions such as a backlit condition.

The MSC mechanism and linear motor provides fast and quiet auto focusing
The MSC (Movie and Still Compatible) mechanism is the latest in optical design technology, achieving fast and silent focusing with a lightweight form with minimum number of lenses. The gears have been removed, eliminating operational noise. A sub-micron precision metal axis (shaft) and fast-moving linear motor drive system is used for direct driving of the focusing lens. This lens employs an inner focusing system that uses the MSC mechanism, and focuses using a compact, lightweight focusing unit consisting of two cemented lenses. This enables fast, quiet autofocusing. The AF system allows users to comfortably shoot both still images and movies.

Olympus Corporation

The Olympus Corporation is headquartered in Japan and operates globally as a leader in optics and technology. The company also supplies a majority of the surgical optics to the medical world and applies that same attention to detail to their consumer products. We stock a great range of Olympus cameras, lenses, camera accessories, binoculars and notetakers for professionals and hobbyists alike.

Lens structure
14 elements in 9 groups

Focal Length (35mm format equivalent)
24-80mm

Diagonal angle of view
84º to 30º

Max. aperture
f/2.8

Min. aperture
22

Number of aperture blades
7 (circular aperture)

Closest focusing distance
0.2m

Max. magnification
0.3x

Max. diameter x Length
69.9mm x 84mm

Weight
382g

Filter size
62mm

• Olympus M.Zuiko Digital ED 12-40mm F2.8 PRO Lens
• LH-66 Lens Hood
• LSC-0918 Lens Case
• LC-62D Lens Cap
• LR-2 Rear Lens Cap
• Instruction Manual
• Warranty Card
