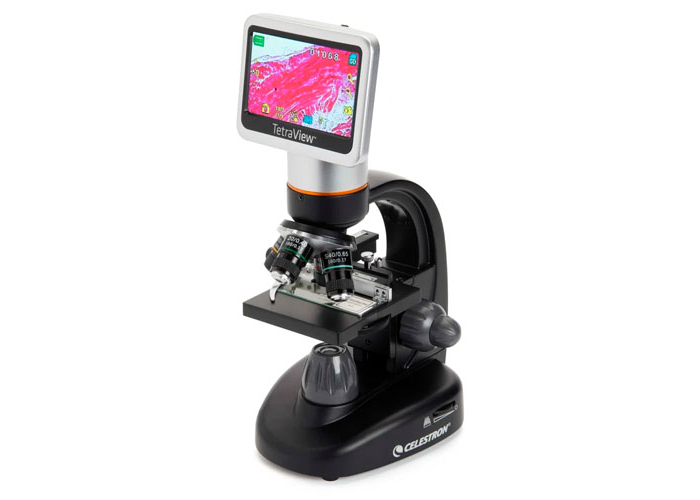

Celestron Tetraview LCD Digital Microscope
Celestron Tetraview LCD Digital Microscope
(Celestron 44347)
We Think You Should Know
- Australian Celestron Warranty
- Purchase Guarantee (see T&C's)
- 4.3" LCD Touchscreen
- 5MP Built-In Camera
- 40x-400x Magnification
- 4x Digital Zoom (1600x)
- Lens: 4, 10, 20, and 40x
- Universal AC Adapter
Overview
The professional-level Celestron TetraView LCD Digital Microscope is a touchscreen LCD microscope with advanced features at a reasonable price. TetraView features four fully achromatic lens objectives, a fully mechanical stage, a 4.3" TFT full color touch screen, 5MP CMOS sensor, and a 2GB SD card for storing your photos and videos. Taking high-resolution images and video of specimen slides has never been easier.
The LCD screen rotates 180° so you can easily share your viewing with others. For an even bigger audience, use the TV output to display on a television or projector. With magnification from 40 to 400x (1600x with digital zoom), TetraView is ideal for viewing a range of cellular specimens on slides.
Great for the discriminating professional or serious hobbyist, the TetraView microscope is an excellent tool for labs, schools, scientific research, and more.
Celestron
Celestron has been an optics industry leader for decades, ever since Tom Johnson unveiled the game-changing C8 multi-use telescope. As the world’s number one telescope maker, Celestron employs nearly 100 people worldwide, including a robust product development team at their headquarters in Torrance, California, and their world-class team of optical and electronic engineers continues to push the boundaries of technology.
| Type of Microscope: | LCD Desktop |
| Head: | 180° rotatable head w/4.3" TFT LCD Screen |
| Nosepiece: | Quad with click stop |
| Objective(s) Type: | (4) Achromatic objectives on turret |
| Objective(s) Standard: | DIN 35 RMS |
| Objective(s) Magnification: | 4x, 10x, 20x, 40x |
| Objective(s) Thread: | WJ 4/5" x 1/36" |
| Focus Type(s): | Coarse Focus | Fine Focus |
| Focus Travel (per rotation): | 0.7mm to 35.3mm (.027" to 1.39") (est.) |
| Magnification Range: | 40x, 100x, 200x, 400x | Up to 1600x with digital zoom |
| Illumination Type: | LEDs |
| Illumination Position(s): | TBD |
| Illumination Adjustability Mechanism: | Adjustable wheels at base |
| Power Source: | Universal 100 to 240V, 50/60 hz multi-country plug | (4) AA (optional) |
| Battery Options: | Yes (4AA) |
| Stage: | Fully mechanical with metal clips, 88mm x 88mm (3.5" x 3.5") | With Filter wheel | Red, blue, green | 1mm, 3mm, 6mm apertures |
| Condenser Type: | Aplantic |
| Condenser N.A.: | N.A. 65 |
| Stage Diaphragm: | Multiple on wheel |
| Eyepiece Type: | CMOS Sensor in lieu of eyepiece |
| Sensor Size: | 5MP | 1/2.5" |
| Pixel Size: | 2.2 μm |
| Screen type: | High definition touch, 480 x 272 pixels resolution, 109mm (4.3") with 4x digital zoom, rotates 180° |
| Screen Size: | 4.3" |
| Memory Type: | SD Card |
| Memory Size: | 2G SD included | Supports up to 32G |
| Port(s) In: | AC Plug (power) | SD Card slot (32Gmax) |
| Port(s) Out: | Video/ TV out | USB 2.0 |
| AC Adapter: | 5-6V DC, 200-1000mA tip positive electrical input. Jack should be 5.5mm (.21") OD, 2.1mm (.08") ID and 12.5mm (.49") long |
| Still image capture resolution: | 1920x1080 | 2048x1152 | 2560x1440 | 3072x1728 | 3648x2048 | 3072x1728 |
| Video resolution: | VGA (640 x 480) |
| Shutter trigger position: | On LCD Screen |
| Software: | Internal Firmware |
| Microscope Dimensions: | 78mm x 140mm x 330mm (7" x 5.5" x 13") |
| Microscope Weight: | 67 oz (1.9 kg) |
- Celestron Tetraview LCD Digital Microscope - 44347
- 2GB SD Card
- USB2.0 Cable
- 7 Prepared Slides
- 4 Plug, Multi-Country AC Adaptor
- Dust Cover
- Carrying Case
