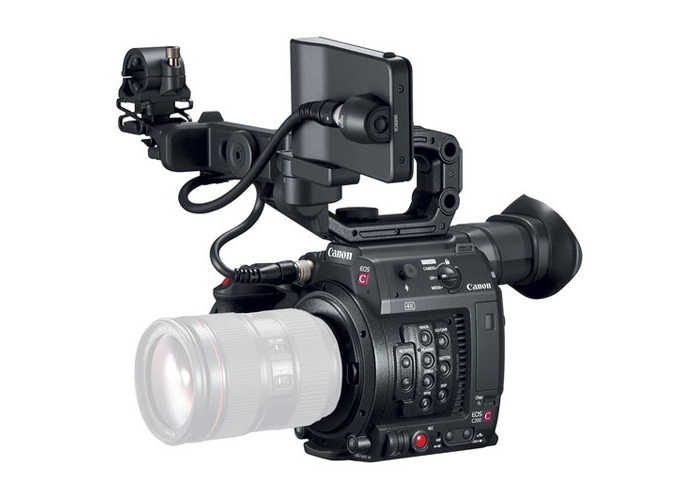

Canon EOS C200 4K Cinema Camera
Check out the Canon EOS C200 4K Cinema Camera's Key Features
(Canon C200)
- Australian Canon Warranty
- Purchase Guarantee (see T&Cs)
- 8.85MP Super 35mm CMOS Sensor with 4K Video Recording
- DIGIC DV 6 Image Processor
- Over Sampling HD Processing
- 100-102400 ISO Range
- Professional Workflow
- Wide Range of Connectivity Options
Overview
The Canon EOS C200 Digital Cinema Camera is a "ready-to-go" production camera that comes with a built-in electronic viewfinder and an array of accessories including a 4-inch touch screen LCD monitor, a versatile handle and ergonomic handgrip. With an 8.85 megapixel Super 35mm sensor the camera can record in 4K UHD and Full HD. Ideal for film, documentary and television production, corporate and event videography, and newsgathering. The camera's multitude of features helps deliver outstanding image quality, performance and versatility.
Features
Canon 8.85 Megapixel Super 35mm CMOS Sensor
The EOS C200 Digital Cinema Camera integrates an 8.85 Megapixel Super 35mm 16:9 CMOS sensor that supports 4K (DCI) recording with a maximum resolution of 4096 x 2160 pixels. The camera fully utilizes the image data delivered by this 4K CMOS sensor to also enable Over Sampling HD Processing for 2K (DCI) and Full HD 1080/60p recording.
Each pixel in this CMOS imaging sensor also maintains a wide pixel pitch that maximizes the amount of light that falls on to each photo site, thus enhancing the EOS C200 camera's sensitivity while also minimizing noise and supporting ISO speeds of up to 102,400 for extreme low-light imaging. This sensor also reduces data-readout time, resulting in a reduction in rolling-shutter artifacts.
Fully Compatible with New and Existing Canon EF-Mount Lenses
A major aspect of the creative filmmaking potential of the EOS C200 Digital Cinema Camera is its compatibility with the full range of more than 100 Canon EF and EF-S photographic lenses (including specialty tilt-shift and fisheye models) and Canon's 4K CN-E Cinema prime and zoom lenses, including the “ENG-style” Canon CINE-SERVO and COMPACT-SERVO zooms. Improved EF lens communication capabilities of the EOS C200 camera provide the display of CN-E Cinema lens T-values, compatibility with Dual-Pixel CMOS AF, lens metadata acquisition, and chromatic aberration correction.
Built-in Viewfinder with LCD Touch Panel, Camera Grip and Handle Unit
The EOS C200 Digital Cinema Camera is a “ready-to-go” production camera, right out of the box. The camera comes with a built-in electronic viewfinder, along with a 4-inch Touch Screen LCD Monitor (LM-V1), Camera Grip (GR-V1), Handle Unit (HDU-2) and Battery Charger (CG-A20)- all helping make the EOS C200 ideal for single operator shooting applications including film, documentary and television production, as well as corporate video and event videography work and newsgathering.
Touch Screen LCD Monitor (LM-V1)
The fully adjustable and detachable, 1.23 million dot, 4-inch Touch Screen LCD Monitor works with Canon's exclusive AF technologies for easy monitoring and one-finger "tap-focusing" during shooting.
Camera Grip (GR-V1)
The new Rosette style camera grip makes rotating and removing the grip simpler, and features an improved ergonomic design to help steady and focus the camera.
Handle Unit (HDU-2)
This handle unit can be attached to the camera body without tools, and features a new handle screw that enables fast and easy attachment. The unit can also be used to mount a variety of optional peripherals.
Dual DIGIC DV 6 Image Processors
The EOS C200 Digital Cinema Camera features our newly developed dual DiG!C DV 6 image processors, which powerfully process high-resolution image data.
The two on-board DiG!C DV 6 image processors allow for the recording of 1,800 horizontal TV lines in 4K. The DiG!C 6 is Canon's sixth-generation Image processor that uses proprietary technology, allowing users to achieve high performance and creative freedom when acquiring images.
ISO Range of 100 to 102,400 Supported
The EOS C200 supports an ISO range of between 160 and 25,600. That range expands to between 100 to 102,400 when the “Extended Sensitivity” is set on the camera. This range of ISO settings provide the user with more creative freedom. Low ISO values allow the user to use large iris settings and shallow depth of field, even in scenes of bright light. The higher ISO values provide the user with more flexibility in dimly lit situations. A 54db gain setting can also be set to achieve high sensitivity in dimly lit scenes.
Dual Pixel CMOS AF Technology
The EOS C200 Digital Cinema Camera features our Dual Pixel CMOS AF (DAF) Technology. DAF is a breakthrough AF technology that uses the CMOS sensor.
Each pixel in the camera's CMOS sensor is configured with two photodiodes. Two independent image signals can then be detected at each photosite. By implementing phase-difference AF, smooth focusing is accomplished using Canon EF lenses with much higher speed and accuracy than was possible with previous technologies- a major advantage during single-operator shooting.
Continuous AF and Face Detection AF with all Canon EF Lenses*
The EOS C200 has one-touch AF (with a push-button) and continuous AF within approximately 80% of the overall image area. Face Detection AF is another autofocus mode that can track a person's face in the frame and maintain focus on them. To further fine tune AF performance, the EOS C200 offers the ability to set the AF tracking speed (up to 10 steps) and sensitivity (up to 7 steps) to match the user’s preference.
*Excluding manual focus lenses.
Internal 4K RAW Recording with New Cinema RAW Light
The EOS C200 Digital Cinema Camera features Canon's newly developed Cinema RAW Light, a 4K RAW recording file format offering a smaller file size compared to our standard RAW*1 files, while maintaining the same high resolution, high color reproducibility, and wide dynamic range data to provide dramatically greater freedom in grading and compositing.
Canon Inc.
The Canon story began in the late 1930s in Tokyo, Japan and the company has been specializing in the manufacture of imaging and optical products ever since. The company has continued to grow into one of the leading worldwide specialists in digital cameras and camcorders. With such a rich history of producing quality imaging products, you know you can trust Canon for all your photographic and filming needs. We stock a huge range of Canon digital cameras like DSLR, compact and mirrorless as well as lenses, video cameras, cases and accessories.
Image Sensing Device
Sensor
CMOS Sensor (single-panel) equivalent to Super 35mm
Total Pixels
Approx. 9.84 megapixels (4206 x 2340)
Number of Effective Pixels
Approx. 8.85 megapixels (4096 x 2160):
When 4096 x 2160 or 2048 x 1080 is selected as the resolution
Approx. 8.29 megapixels (3840 x 2160):
When 3840 x 2160 or 1920 x 1080 is selected as the resolution
Filter
RGB primary color filter (Bayer array)
Lens Mount
Lens Mount
Canon EF mount
Exposure
Exposure Modes
(1) Manual exposure based on shutter setting, iris setting, ISO/gain setting, and ND filter setting
(2) Push auto iris control, auto iris control (light metering system selection/AE shift possible)
Shutter Setting
Speed, Angle, Clear Scan, Slow, or Off mode selected
Either 1/3 or 1/4 steps selected as speed increment
Iris Setting
(1) Manual setting in 1/2-step increments, 1/3-step increments or fine possible
(2) Push auto IRIS control*
(3) Auto IRIS control*
* Lenses that support auto IRIS:
| EF Lenses | Cinema Lenses |
| EF-S 10-18mm f/4.5–5.6 IS STM | CN 7x17 KAS S/E1 |
| EF-S 18–55mm f/3.5-5.6 IS STM | CN 20x50 IAS H/E1 |
| EF-S 18–135mm f/3.5-5.6 IS STM | CN-E 18–80mm T4.4 L IS KAS S |
| EF-S 55–250mm f/4-5.6 IS STM | CN-E 70–200mm T4.4 L IS KAS S |
| EF-S 18–135mm f/3.5-5.6 IS USM | |
| EF 24–105mm f/3.5-5.6 IS STM |
ISO Speed Setting
1 step, 1/3 step settings
[100* - 160 - 25600 - 102400*]
*When the sensitivity is expanded
Gain Setting
Normal [-6dB* - -2dB - 42dB - 54dB*]
Fine: Setting in 0.5 dB step increments possible
*When the sensitivity is expanded
ND Filter
5 density settings (2, 4, 6, 8*, 10* stops)
*When expansion is selected
Motorized drive
Focus Control / Assist
Focus Control
Dual Pixel CMOS AF Supported
Manual Focus, One-Shot AF, Continuous AF, AF-Boosted MF, Face Detection AF (only lenses that support AF functions can be used in any of these modes), Focus Guide
Built-in Viewfinder
Built-in Viewfinder
0.46” (1.18 cm on the diagonal), color wide-screen organic EL display
Approx. 1,770,000 dots (854 x RGB x 480), 100% field of view ratio
White Balance
White Balance
AWB, Kelvin setting (setting range: 2000K to 15000K/-20CC to +20CC), Daylight, Tungsten, Set A, Set B)
System Frequency Selection
Frame Rate
(1) 59.94 Hz mode (59.94P/29.97P/23.98P)
(2) 50.00 Hz mode (50.00P/25.00P)
(3) 24.00 Hz mode (24.00P)
Dynamic Range
Canon Log 3: 1600% (ISO 800 or above)
Canon Log/Wide DR: 800% (ISO 400 or above)
Video Formats
RAW
Video:
Codec: Cinema RAW Light
Resolution: 4096 x 2160
Bit Depth: 10 bit (59.94P/50.00P), 12 bit (29.97P/23.98P/25.00P/24.00P)
Bit Rate: 1 Gbps
Audio:
Linear PCM: 16-bit / 48 kHz / 4 channels
MP4
Video:
Codec: MPEG-4 AVC/H.264
Resolution: 3840x2160 / 1920x1080
Bit Rate: 150 Mbps (3840x2160), 35 Mbps (1920x1080)
Color Sampling: YCC420 8 bit
Audio:
MPEG-4 AAC-LC (16-bit / 48 kHz / 2 channels)
Linear PCM (16-bit / 48 kHz / 4 channels)
MP4 (Proxy)
Video:
Resolution: 2048 x 1080
Bit Rate: 35 Mbps
Color Sampling: YCC420 8 bit
Audio:
MPEG-4 AAC-LC (16-bit / 48 kHz / 2 channels)
Linear PCM (16-bit / 48 kHz / 4 channels)
Recording Media
Recording Media
(1) CFast™ card (1 slot): RAW movies
Only CFast 2.0™ with VPG-130 is supported.
(2) SD card (2 slots): Recording of MP4 movies, photos (JPEG), custom pictures, menus and other data possible
Time Code
Drop frame* or non-drop frame
Rec run, free run, regeneration
*In 59.94P/29.97P mode only
Rec Mode (MP4 Recording)
Slow motion recording, pre-recording, frame recording, interval recording
Other Recording Functions (MP4 Recording)
Relay recording, double slot recording
Others
Custom picture setting, black balance adjustments, color bars, peaking display, zebra display, My Menu setting, fan, waveform monitor display, assignable buttons (1-17), key lock, marker display, enlarged display, custom display, peripheral illumination correction, GPS support (GP-E2), monaural microphone, and other functions
Playback
Playback
Playback operations:
Normal playback, fast forward (at speeds of ×5, ×15, ×60), fast reverse (at speeds of ×5, ×15, ×60), frame forward, frame reverse, rec review
Clip Display
3x4 (clip) index screen (RAW/MP4/Photo)
Terminals
Terminals
Input only:
REMOTE terminal, MIC jack, INPUT terminals (2 sets)
Output only:
SDI terminal, HDMI OUT terminal, headphones jack, USB terminal, VIDEO terminal
Input/Output Control:
Ethernet terminal
Power Supply
Power Supply
14.4 V DC (battery pack), 16.7 V DC (DC-IN)
Image Processing Platform
Image Processing Platform
Dual DIGIC DV 6
- Canon EOS C200 Cinema Camera
- LCD Touch Panel Monitor (LM-V1)
- LCD Attachment Unit (LA-V1)
- Handle Unit (HDU-2)
- Camera Grip (GR-V1)
- Shoudler Strap (SS-1200)
- AC Adapter (CA-A10)
- Battery Pack (BP-A30)
- Battery Charger (CG-A20)
- Compact Power Adapter (CA-CP200B)
- 50cm Unit Cables (UN-5)
- Eyecup
- Mic Holder Unit
- Tape Measure Hook *1
- Thumb Rest
- Body Cap
