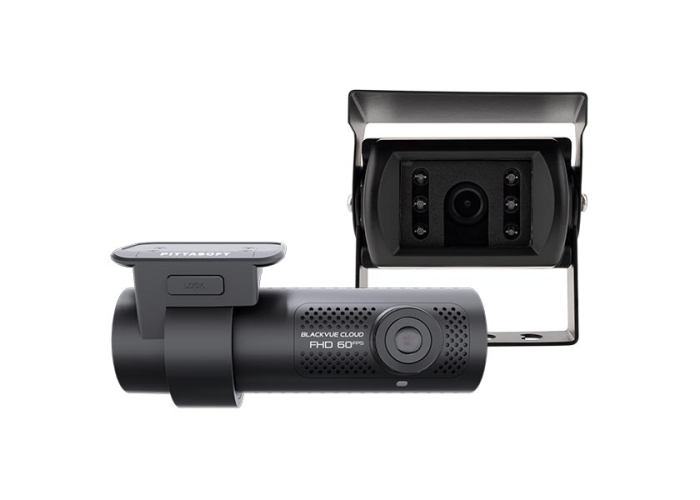

BlackVue DR770X-2CH Truck Dash & Rear Cam - 64GB
BlackVue DR770X-2CH Truck Full HD Dash & Exterior IR Rear Cam - 64GB
(BlackVue DR770X-2CH-TR-64)
We Think You Should Know
- Australian BlackVue Warranty
- Purchase Guarantee (see T&C's)
- Full HD 60FPS Front Camera
- Full HD Exterior IR Rear Cam
- 2.1MP Sony Starvis Sensor
- 139° Forward Angle
- 116° Rear Viewing Angle
- Water Resistant Rear Camera
- Built-In WiFi / 2.4 GHz
- Built-in Power Management
- Enhanced Night Vision
- Intelligent Parking Mode
- Auto Impact and Motion Detection
- Improved Low Light Sensitivity
- Includes 64GB Micro SD Card
Overview
The BlackVue DR770X-2CH Truck offers a commercial-level dash cam for many different applications with a front-facing dash cam and a resistant external rear camera.
Features
The Perfect Dashcam for Trucks and Heavy Vehicles
The external waterproof rear cam with embedded IR lights and up to 15m (49ft) coaxial cable is ideal for most large vehicles. Catch detailed footage of the front surroundings of your vehicle at 1080p Full HD 60FPS and rear at 1080p Full HD 30FPS.
Improved Sony STARVIS™ Sensor
The Sony STARVIS™ image sensor that equips the DR770X Series front and rear cameras delivers outstanding low-light performance. The back-illuminated sensor is capable of capturing an unprecedented amount of detail in both shadows and highlights. The DR770X features an upgraded CPU for better performance and image quality.
Industry Leading Design
The award-winning unique design of BlackVue cameras enables a discreet installation and easy access to features and useful functions.
Enhanced Night Vision Capabilities
The newly integrated Sony STARVIS™ allows for enhanced Night Time Vision recording, allowing you to easily see foreign objects in low light conditions.
LEDs for Short Range Night Vision
With LEDs housed in a rear water-resistant external camera unit, your vehicle can record close encounters in the dark to ensure you’re always protected with video recording proof.
Note: The camera will see close distances but not long-range objects.
Supercharged with BlackVue Cloud
- Live View: Remote Viewing at your fingertips
- Emergency Alarm: Receive notifications on the go
- Video Backup: Move files from dashcam to cloud
- Video Playback: Watch on your computer or smartphone
BlackVue - The Brand
BlackVue is one of the leading dash camera manufacturers in the world. They are renowned for being the first company to introduce Wi-Fi and Smartphone Applications to enable easy viewing without the need for computers. Rest assured that when you buy a BlackVue product, you will receive premium support and customer service from the largest provider of quality dash cameras in Australia.
General
| Model Name |
DR770X-2CH Truck |
|---|---|
| Channel | 2 Channel (Front + Rear External) |
| Colour / Size / Weight |
Front: Black / Width 118.5 mm x Height 36 mm / 104 g Rear: Black / Width 65 mm x Height 36 mm / 157g |
| Memory |
microSD Card (64 GB) *BlackVue or Samsung Pro MLC Endurance SD cards must be used. |
| Speaker & GPS |
Built-in |
| LED |
Front: Security LED, Recording LED, Touch Sensor LED, Bluetooth/Wi-Fi/LTE LED |
| Sensor |
3-Axis acceleration sensor |
| Battery or Capacitor |
Built-in Super Capacitor *Capacitor's are not at risk of heat damage which batteries face. |
Camera & Recording
| Recording Mode |
Normal Recording |
|---|---|
| Button |
Wi-Fi: Enable or disable the WiFi function |
| Camera |
Front: STARVIS CMOS Sensor (Approx. 2.1 M Pixel) |
| Illumination Sensor and Rear Camera Lights |
940nm, 6 Infrared (IR) Lights *IR is on the external (rear) camera only |
| External Camera |
Rugged waterproof enclosure for external mounting |
| Viewing Angle |
Front: Diagonal 139°, Horizontal 116°, Vertical 61° |
| Format Free |
Yes (Adaptive) |
| Resolution/FPS Front Camera |
Full HD (1920×1080) @60fps *Camera resolution is fixed and cannot be changed to 1080P |
| Resolution/FPS Exterior Camera |
Full HD (1920×1080) @30fps *Frame rate is different during Parking mode and Wi-Fi > streaming |
| Image Quality |
Highest (Extreme): 25 + 10 Mbps |
| Video Codec |
H.264 (AVC) |
| Video File Extension |
MP4 |
Operating
| Input Voltage |
DC 12V – 24V (3 pole DC Plug: (Ø3.5 x Ø1.1), MAX 1A/12V) *Note: USB cables are only 5V and will not power on the dash cam. |
|---|---|
| Current Consumption |
Avg. 390mA (4.68W at 12V, when GPS and Wi-Fi are ON) *Approx. 60mA increase in current when IR LEDs are ON. *Actual power consumption may vary depending on use conditions and environment. |
| Voltage Cut-off |
Built-in Variable Voltage Cut-off System |
| Operating & Storage Temp |
-20℃ – 80℃ (-4°F – 176°F ) |
| High Temperature Cut-off |
Approximately 80℃ (176°F) |
Other
| Wi-Fi |
Built-in (802.11n 2.4~2.4835 GHz) |
|---|---|
| Software |
BlackVue Viewer* Windows 7 or higher and |
| GPS |
Built-in (Dual Band: GPS, GLONASS) |
| 4G LTE |
Optional via the CM100GLTE module |
| Application |
BlackVue Application (Android 8.0 or higher, iOS 13.0 or higher) *Some videos may not play on HTC mobile devices due to the resolution of the files |
| Microphone |
Built-in |
- Front Camera
- Rear External Camera
- MicroSD Card - 64GB
- MicroSD Card Reader
- 12V Power Cable
- Cable Clips
- Spare Mounting Tabs
- Tape Pry Tool
- Quick Start Guide
- Coax Cable 15M
- Mounting Screws and Key
