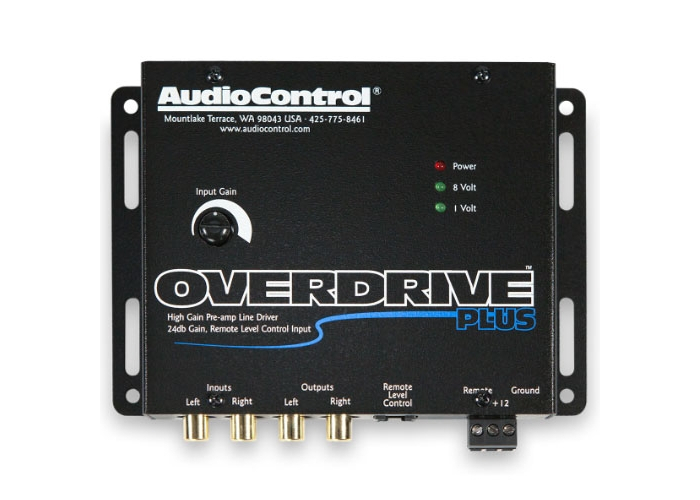

AudioControl Over Drive Plus - 2 Channel Line Drive

Check out the AudioControl Over Drive Plus - 2 Channel Line Drive's Key Features
(AudioControl ACOVERDRIVE+)

• Genuine AudioControl Australian Warranty
• Peace of Mind Purchase Guarantee (bottom of page)
• High signal voltage capability: 9.5 volts RMS output
• 24dB of gain
• Input for optional Dash Control for remote level
• Ultra-low distortion, ultra-quiet operation
• Low noise, high current output circuitry
• High-headroom PWM switching power supply
• Selectable ground isolation
• Voltage indicator LEDs

Overview

OverDrive Plus 2 Channel Line Driver with Optional Level Control

High performance car audio amplifiers love lots of signal voltage. This allows them to deliver optimum sound quality and maximum bass response. Unfortunately, many of today’s after market source units don’t output the optimum voltage levels these amplifier need. The AudioControl OVERDRIVE PLUS pre-amp line driver increases the line level signals from aftermarket source units up to 13 volts max (9.5 RMS) and delivers them downstream to the amplifiers inputs. The results are increased dynamic range, maximum signal-to-noise levels, and tremendous bass response. Autosound enthusiasts will enjoy dramatically improved sound quality of their after market audio system.

The OVERDRIVE PLUS features an optional dash control input which facilitates remote control of pre-amp signal levels. This makes the OVERDRIVE PLUS an ideal controller for overall system master volume (great for tablet installs) or subwoofer levels.

Features

Inputs

• Preamp Inputs: 1 (2 channels)
• Input Gain: 24dB
• Input Impedance: 20kΩ

Outputs

• Preamp Outputs: 4 (8 channels)
• Maximum Output Level: 9.5Vrms
• Output Impedance: 45Ω

Performance

• Total Harmonic Distortion: 0.005%
• Frequency Response: 10Hz-100kHz ±1dB
• Signal to Noise: >110dB

General

• Power Supply: Transformer Isolated PWM
• Current Draw: 150mA
• Recommended Fuse Rating: 1A

Control

• Remote In

Weights & Dimensions

• Dimensions: 5″W x 4.25″D x 1.25″H
• Weight: 2.0lbs (0.91kg)

In The Box:

• OverDrive PLUS
• Power Connector
• Manual
• Warranty
