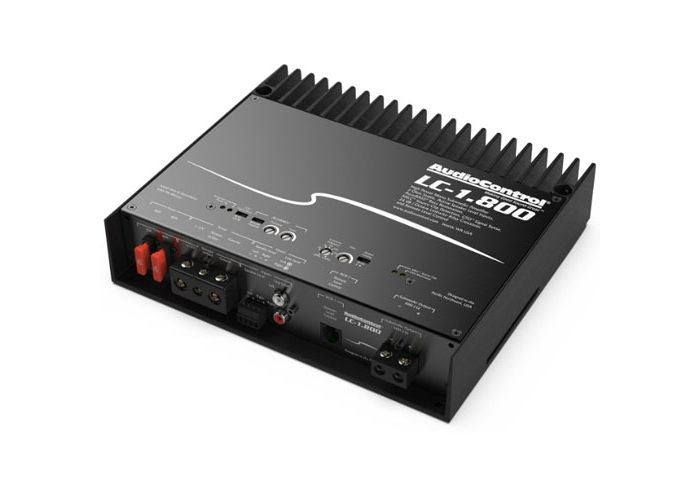

AudioControl LC Series 800w Mono Amplifier w/LC2i

Check out the AudioControl LC Series 800w Mono Amplifier w/LC2i's Key Features
(AudioControl ACLC1800)

• Genuine AudioControl Australian Warranty
• Peace of Mind Purchase Guarantee (bottom of page)
• Subwoofer amplifier with patented AccuBASS®
• 800 watts @ 2 ohms
• 500 watts @ 4 ohms
• AccuBASS® Processing
• MILC™ Maximum Input Level Control (Patent Pending)
• GTO™ Signal Sense
• 24 dB/octave Linkwitz-Riley Alignment crossover
• Speaker level and preamp inputs
• Optional ACR-1 assignable remote control
• Solid One-Piece Aluminum Chassis

Overview

LC Series Amplifiers

With OEM integration friendly features such as signal summing and our patented AccuBASS®, AudioControl’s multi-channel and subwoofer amplifiers are changing the game in OEM integration, offering flexible and user friendly signal routing and control. Spend less time on the install and more time listening to music as it was meant to be heard.

LC-1.800 High-Power Mono Subwoofer Amplifier with Accubass

When you demand the perfect blend of power and performance, AudioControl provides answers and the LC-1.800 is no exception.

No matter the install, you can be assured power will meet and exceed expectations with 800 watts at 2 ohms. The mix of high level and low level inputs mean you have the widest input voltage range in the industry. AudioControl’s patented AccuBASS® circuit is the only way to properly overcome factory bass roll-off and heavily equalized factory bass settings.

Enjoy loud, clean and articulate bass combined with the best warranty available with the LC-1.80 amplifier.

Features

Inputs

• Preamp Inputs: 2 balanced
• Input Voltage Range: 500 mV – 6 Vrms

Outputs

Rated Continuous (RMS) Power at 14.4V:

• 4 Ω – 500 W RMS
• 2 Ω – 800 W RMS

Performance

• Frequency Response: 10 Hz – 30 kHz
• Signal to Noise: 102 dBa, Ref 500W @ 4 Ohm
• Damping Factor: 670 at 10 V, 4 Ohm Output, 100 Hz
• THD+N: < 0.01%
• Minimum Power / Ground Wire Gauge: 0 AWG wire
• Fuse Rating: 4 x 40 A
• Crossover: 24 dB/octave Linkwitz-Riley, Adjustable From 30 Hz – 230 Hz
• PFM Subsonic Filter: 24 Hz

Weights & Dimensions

• Dimensions: 9″W x 7.95″D x 2.1″H
• Weight: 5 lbs. (2 kg)

In the box

• LC-1.800
• Speaker Connectors
• Fuse
• Manual
• Warranty
